Remove/install front engine mount and/or engine support - AR22.10-P-1260EWS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 212

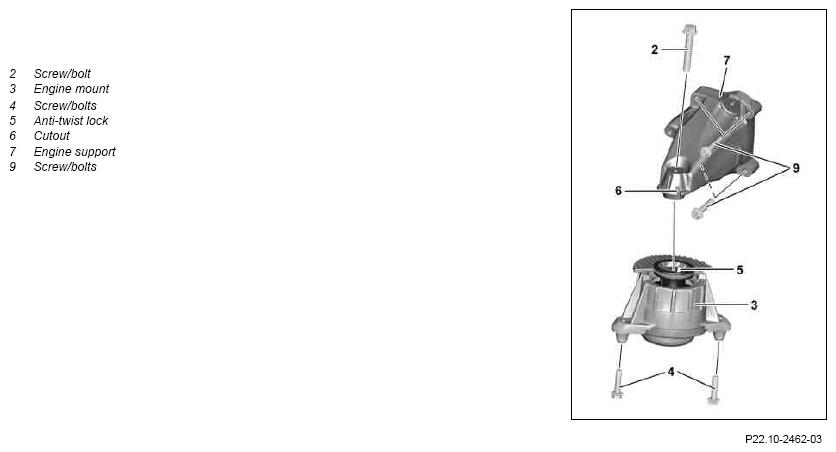

Fig 1: Front Engine Mount And Support Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on engine 273

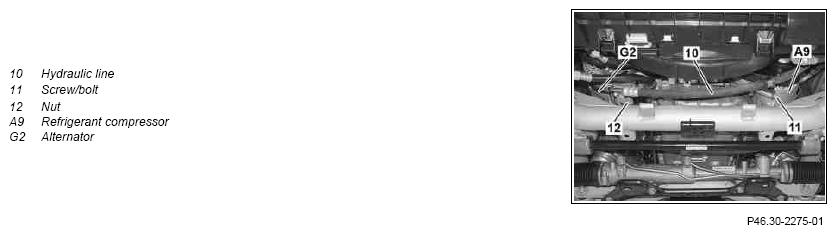

Fig 2: Front Engine Mount And Support Remove/Install Components - Shown On Engine 273

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove air filter housing		AR09.10-P-1150EWS
2	Detach vacuum line of brake system from intake manifold	ENGINE 272.983 in MODEL 212	AR43.10-P-0355EW
3	Detach crankcase ventilation hose from centrifuge	ENGINE 272.983 in MODEL 212	AR01.20-P-2100EWS
4	Remove poly-V belt		AR13.20-P-0001EWS
5	Remove screw/bolts (2) on engine mount (3) from above	Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
5	Remove screw/bolts (2) on engine mount (3) from above	Engine mount wrench set	Figure
6	Mount engine hoist and raise engine		AR33.10-P-0105EW
7	Remove engine compartment paneling		AR61.20-P-1105EW
8	Removes screw/bolts (4) for engine mount (3)	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
9	Remove screw/bolt (11) and unscrew nut (12)	Nut, high-pressure line to alternator bracket	*BA46.30-P-1006-01T
9	Remove screw/bolt (11) and unscrew nut (12)	Bolt, refrigerant compressor to timing case/crankcase/engine support	*BA83.55-P-1001-01M
10	Remove hydraulic line (10) and bracket from A/C compressor (A9) and alternator (G2)
11	Take out engine mount (3)	Always replace engine mount (3) in pairs. Remove left engine mount (3) over front axle carrier. The anti-twist locks (5) of the engine mounts (3) must fit in the notches (6) of the engine supports (7). Pay attention to environmental protection regulations for disposal of engine mounts (3). Dispose engine mounts (3) into mixed scrap.
	Remove left engine support (7)
12	Remove screw/bolts (9) and crankcase and remove left engine support (7)	Remove left engine support (7) from over front axle carrier.
12		Screw/bolt, engine support to crankcase	*BA22.10-P-1001-02A
	Remove right engine support (7)
13	Detach ground line from battery		AR54.10-P-0003EW
14	Remove screw/bolts (9) and crankcase and remove right engine support (7)	Screw/bolt, engine support to crankcase	*BA22.10-P-1001-02A
15	Install in the reverse order

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			ENGINE 272	ENGINE 273
BA22.10-P-1001-02A	Screw/bolt, engine support to crankcase	Stage 1	Nm	20	20
BA22.10-P-1001-02A	Screw/bolt, engine support to crankcase	Stage 2	∠°	90	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				MODEL 212
BA22.10-P-1001-03E	Bolt, front engine mount to engine support	M10		Nm	50
		M12	Stage 1	Nm	85
		M12	Stage 2	∠°	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			MODEL 212
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier	M8	Nm	28

POWER STEERING PUMP

Number	Designation		MODEL 212
BA46.30-P-1006-01T	Nut, high-pressure line to alternator bracket	Nm	8

REFRIGERANT COMPRESSOR

Number	Designation		ENGINE 272	ENGINE 273
BA83.55-P-1001-01M	Bolt, refrigerant compressor to timing case/crankcase/engine support	Nm	20	20

Fig 3: Identifying Engine Mount Wrench Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA
