Remove/install front engine mount and/or engine support - AR22.10-P-1260ELB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 278 in MODEL 212, 218

ENGINE 278 in MODEL 207

Shown on model 212.073

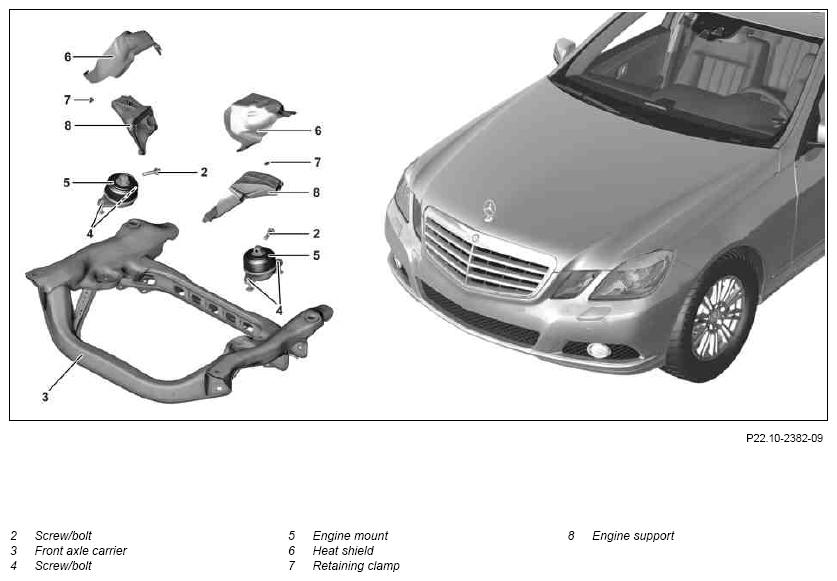

Fig 1: Front Engine Mount And Support Remove/Install Components - Shown On Model 212.073
G09975425Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
1 Mount engine hoist and raise engine slightly MODEL 207 AR33.10-P-0105CW
MODEL 212, 218
IMPORTANT Only raise engine sufficiently that the engine mounts are not under tension.		 AR33.10-P-0105EW
2 Raise vehicle
3 Remove bottom engine compartment paneling   AR61.20-P-1105EW
4 Remove screw/bolts (2) for engine mount (5) on engine support (8) TORQUE SPECIFICATION Bolt, front engine mount to engine support *BA22.10-P-1001-03E
5 Remove front axle carrier (3) 212, 218 with 4Matic
AR33.10-P-0001EW
6 Remove screw/bolts (4) for engine mount (5) on front axle carrier (3) TORQUE SPECIFICATION Bolt, front engine mount to front axle carrier *BA22.10-P-1002-03E
7 Remove steering coupling When removing left-hand engine mount (5)
MODEL 207 AR46.10-P-8000CW
MODEL 212, 218 AR46.10-P-8000EW
8 Remove heat shield (6) on engine support (8) TORQUE SPECIFICATION Bolt, heat shield to engine support *BA22.10-P-1003-02A
9 Lift engine NOTES
Ensure for lifting the engine that it does not touch the partition wall.
The cable and lines can be damaged otherwise.
10 Remove engine mount (5) to the rear INSTALLATION IMPORTANT The engine mount (5) must sit in the cutouts on the engine support (8).
IMPORTANT Always replace engine mount (5) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (5).
  Left engine support (8)
11 Remove screw/bolt for A/C compressor on engine support (8) TORQUE SPECIFICATION Bolt, refrigerant compressor to timing case/crankcase/engine support *BA83.55-P-1001-01M
12 Remove rear heat shield from turbocharger TORQUE SPECIFICATION Bolt, shield to turbocharger/cylinder head *BA09.40-P-1007-01R
13 Remove screw/bolts for engine support (8) on crankcase TORQUE SPECIFICATION Bolt, engine support to crankcase *BA22.10-P-1001-02A
SPECIAL TOOL Set of flexible head wrenches Fig 2
14 Remove engine support (8) to the rear
  Right engine support (8)
15 Remove alternator   AR15.40-P-5032ELB
16 Remove screw/bolt for heat shield on starter at engine support (8) TORQUE SPECIFICATION Bolt, heat shield to engine support *BA22.10-P-1003-02A
17 Unclip retaining clamp (7) for heat shield on the turbocharger at heat shield (6) of engine support (8) and remove retaining clamp (7)
18 Remove rear heat shield from turbocharger TORQUE SPECIFICATION Bolt, shield to turbocharger/cylinder head *BA09.40-P-1007-01R
19 Remove screw/bolts for engine support (8) on crankcase TORQUE SPECIFICATION Bolt, engine support to crankcase *BA22.10-P-1001-02A
SPECIAL TOOL Set of flexible head wrenches Fig 2
20 Remove engine support (8) with heat shield (6) downwards
21 Install in the reverse order
TURBOCHARGER

Number Designation ENGINE 157 ENGINE 278
BA09.40-P-1007-01R Bolt, shield to turbocharger/cylinder head Nm 9 9
ENGINE SUPPORT (ENGINE SIDE)

Number Designation ENGINE 157 ENGINE 278
BA22.10-P-1001-02A Bolt, engine support to crankcase Stage 1 Nm 20 20
Stage 2 ∠° 90 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 207 MODEL 212
BA22.10-P-1001-03E Bolt, front engine mount to engine support M10 Nm 50 50
M12 Stage 1 Nm 85 85
Stage 2 ∠° 90 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 218
BA22.10-P-1001-03E Bolt, front engine mount to engine support M10 Nm 50
M12 Stage 1 Nm 85
Stage 2 ∠° 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 207 MODEL 212
BA22.10-P-1002-03E Bolt, front engine mount to front axle carrier M8 Nm 28 28
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 218
BA22.10-P-1002-03E Bolt, front engine mount to front axle carrier M8 Nm 28
ENGINE SUPPORT (ENGINE SIDE)

Number Designation ENGINE 157 ENGINE 278
BA22.10-P-1003-02A Bolt, heat shield to engine support Nm 9 13
REFRIGERANT COMPRESSOR

Number Designation ENGINE 157 ENGINE 278
BA83.55-P-1001-01M Bolt, refrigerant compressor to timing case/crankcase/engine support Nm 20 20
Fig 2: Identifying Set Of Flexible Head Wrenches (001 589 81 09 00)
G09975426Courtesy of MERCEDES-BENZ USA
