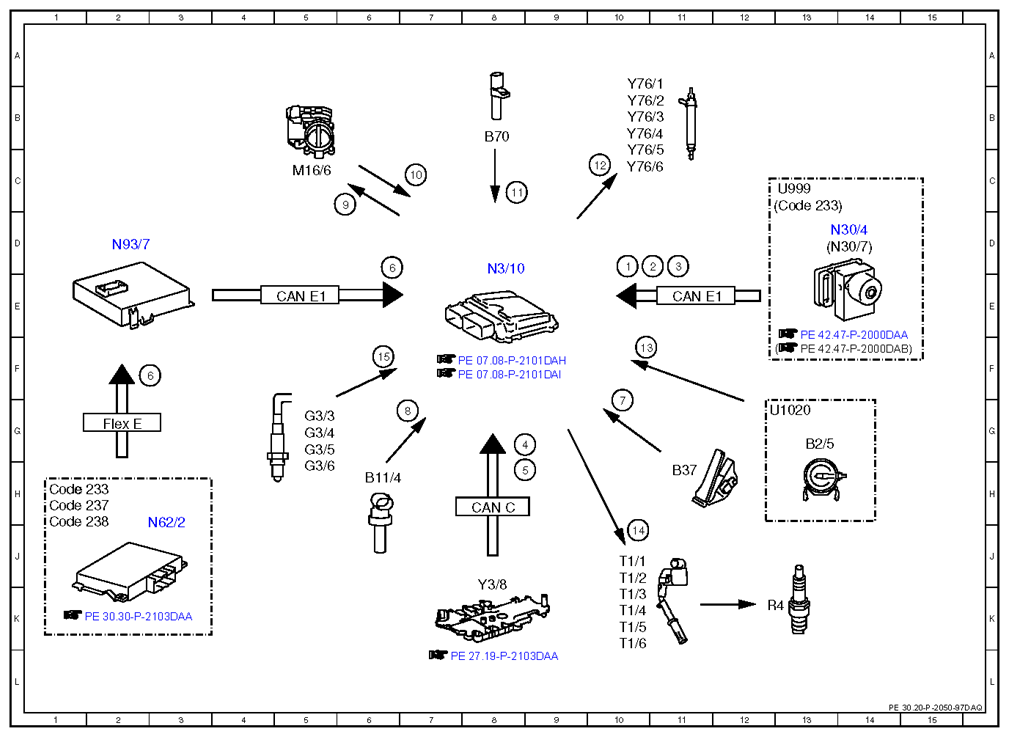

Electrical function schematic for electronic accelerator - PE30.20-P-2050-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8/9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Cruise control, request | 10D |
| 10 | Throttle valve actuator, signal | 7C |
| 11 | Engine speed, signal | 8C |
| 12 | Fuel injectors, actuation | 10C |
| 13 | Engine load, signal | 10F |
| 14 | Ignition coils, actuation | 10J |
| 15 | Oxygen sensor, signal | 6F |
| 2 | Service brake, status | 11D |
| 3 | Wheel speed, signal | 11D |
| 4 | Gear range, status | 8G |
| 5 | Reverse gear, status | 8H |
| 6 | DISTRONIC, request | 2F |
| 6 | DISTRONIC, request | 6D |
| 7 | Accelerator pedal sensor, signal | 10G |
| 8 | Coolant temperature sensor, signal | 7G |
| 9 | Throttle valve actuator, actuation | 6C |
| B11/4 | Coolant temperature sensor | 6H |
| B2/5 | Hot film mass air flow sensor | 13G |
| B37 | Accelerator pedal sensor | 11H |
| B70 | Crankshaft Hall sensor | 8B |
| CAN C | Drive train CAN | 8H |
| CAN E1 | Chassis CAN 1 | 5E |
| CAN E1 | Chassis CAN 1 | 11E |
| Code 233 | DISTRONIC PLUS | 1H |
| Code 233 | DISTRONIC PLUS | 12C |
| Code 237 | Active Blind Spot Assist | 1H |
| Code 238 | Active Lane Keeping Assist | 1J |
| Flex E | Chassis FlexRay | 2G |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 5G |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 5G |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 5G |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 5H |
| M16/6 | Throttle valve actuator | 5C |
| N3/10 | ME-SFI [ME] control unit | 8D |
| N30/4 | Electronic Stability Program control unit | 14D |
| N30/7 | Premium Electronic Stability Program control unit | 13D |
| N62/2 | Video and radar sensor system control unit | 3J |
| N93/7 | Chassis gateway control unit | 2D |
| R4 | Spark plugs | 12K |
| T1/1 | Cylinder 1 ignition coil | 10J |
| T1/2 | Cylinder 2 ignition coil | 10J |
| T1/3 | Cylinder 3 ignition coil | 10K |
| T1/4 | Cylinder 4 ignition coil | 10K |
| T1/5 | Cylinder 5 ignition coil | 10K |
| T1/6 | Cylinder 6 ignition coil | 10K |
| U1020 | Valid for gasoline engine with stratified operation | 12G |
| U999 | Not valid with DISTRONIC PLUS | 13C |
| Y3/8 | Fully integrated transmission control unit | 8K |
| Y76/1 | Cylinder 1 fuel injector | 10B |
| Y76/2 | Cylinder 2 fuel injector | 10B |
| Y76/3 | Cylinder 3 fuel injector | 10B |
| Y76/4 | Cylinder 4 fuel injector | 10B |
| Y76/5 | Cylinder 5 fuel injector | 10C |
| Y76/6 | Cylinder 6 fuel injector | 10C |
