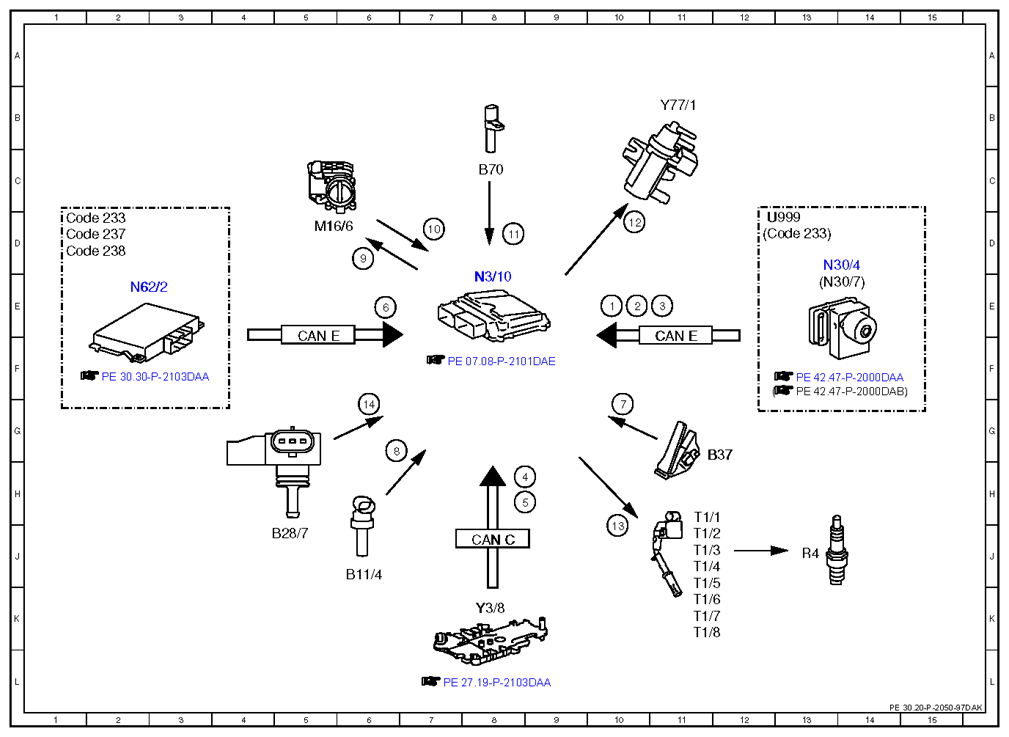

Electrical function schematic for electronic accelerator - PE30.20-P-2050-97DAK
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 278.9 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Cruise control, request | 10E |
| 10 | Throttle valve actuator, signal | 7D |
| 11 | Engine speed, signal | 8D |
| 12 | Boost pressure positioner, actuation | 10D |
| 13 | Ignition coils, actuation | 10J |
| 14 | Engine load, signal | 6G |
| 2 | Service brake, status | 10E |
| 3 | Wheel speed, signal | 11E |
| 4 | Gear range, status | 8H |
| 5 | Reverse gear, status | 8H |
| 6 | DISTRONIC, request | 6E |
| 7 | Accelerator pedal sensor, signal | 10G |
| 8 | Coolant temperature sensor, signal | 6G |
| 9 | Throttle valve actuator, actuation | 6D |
| B11/4 | Coolant temperature sensor | 6J |
| B28/7 | Pressure sensor downstream of throttle valve | 5J |
| B37 | Accelerator pedal sensor | 11G |
| B70 | Crankshaft Hall sensor | 8C |
| CAN C | Drive train CAN | 8J |
| CAN E | Chassis CAN | 11F |
| CAN E | Chassis CAN | 5F |
| Code 233 | DISTRONIC PLUS | 12D |
| Code 233 | DISTRONIC PLUS | 1D |
| Code 237 | Active Blind Spot Assist | 1D |
| Code 238 | Active Lane Keeping Assist | 1D |
| M16/6 | Throttle valve actuator | 5D |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N30/4 | Electronic Stability Program control unit | 13D |
| N30/7 | Premium Electronic Stability Program control unit | 13E |
| N62/2 | Video and radar sensor system control unit | 2E |
| R4 | Spark plugs | 13J |
| T1/1 | Cylinder 1 ignition coil | 11H |
| T1/2 | Cylinder 2 ignition coil | 11J |
| T1/3 | Cylinder 3 ignition coil | 11J |
| T1/4 | Cylinder 4 ignition coil | 11J |
| T1/5 | Cylinder 5 ignition coil | 11K |
| T1/6 | Cylinder 6 ignition coil | 11K |
| T1/7 | Cylinder 7 ignition coil | 11K |
| T1/8 | Cylinder 8 ignition coil | 11K |
| U999 | Not valid with DISTRONIC PLUS | 12D |
| Y3/8 | Fully integrated transmission control unit | 8K |
| Y77/1 | Boost pressure positioner | 11B |
