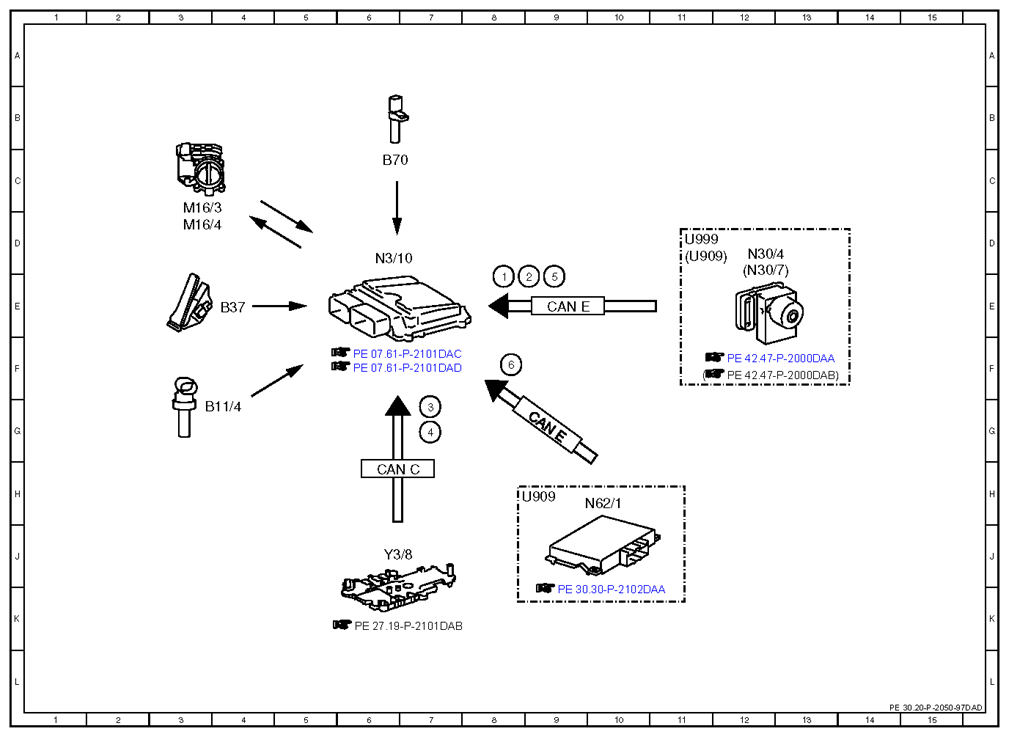

Electrical function schematic for electronic accelerator - PE30.20-P-2050-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 8E |
| 2 | Vehicle speed, signal | 9E |
| 3 | Gear range, status | 7G |
| 4 | Reverse gear, status | 7G |
| 5 | Cruise control, request | 9E |
| 6 | DISTRONIC, request | 8F |
| B11/4 | Coolant temperature sensor | 4G |
| B37 | Accelerator pedal sensor | 4E |
| B70 | Crankshaft Hall sensor | 6C |
| CAN C | Drive train CAN | 6H |
| CAN E | Chassis CAN | 9E |
| CAN E | Chassis CAN | 9G |
| M16/3 | Front throttle valve actuator | 3D |
| M16/4 | Rear throttle valve actuator | 3D |
| N3/10 | ME-SFI [ME] control unit | 6D |
| N30/4 | Electronic Stability Program control unit | 12D |
| N30/7 | Premium Electronic Stability Program control unit | 12E |
| N62/1 | Radar sensors control unit | 10H |
| U909 | Valid for DISTRONIC PLUS | 11D |
| U909 | Valid for DISTRONIC PLUS | 8H |
| U999 | Not valid with DISTRONIC PLUS | 11D |
| Y3/8 | Fully integrated transmission control unit | 6J |
