Remove/install contact plate for cell phone holder (UPCI (UHI)) in the armrest - AR82.70-P-8919EC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3 with CODE 386 (Comfort telephony)
MODEL 207 up to 2/28/11 with CODE 386 (Comfort telephony)
MODEL 212 with CODE 386 (Comfort telephony) without CODE 279 (Electronic gear selector)

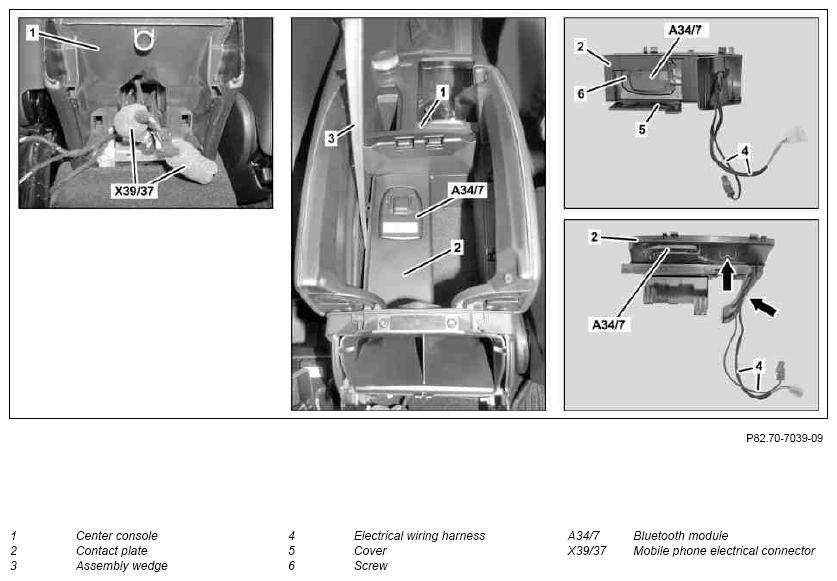

Illustrated on model 207.3
| Remove/install | |||
| 1.1 | Remove rear stowage compartment on center console (1) | Except CODE 301 (Smoker's package) | |
| 1.2 | Remove rear ashtray from center console (1) and place with connected electrical lines to one side | With CODE 301 (smoker package) | |
| MODEL 204.0/2/3, MODEL 207 | AR68.20-P-2230CW | ||
| MODEL 212 | AR68.20-P-2230EW | ||
| 2 | Slide back foam rubber jacketing and disconnect mobile phone electrical connector (X39/37) | ||
| 3 | Remove center console (1) | MODEL 204.0/2 as of model year 2012, MODEL 204.3, MODEL 212 as of model year 2012 | |
| MODEL 212 | AR68.20-P-2000EW | ||
| MODEL 204 | AR68.20-P-2000CW | ||
| 4 | Remove screw/bolt from underside of center console (1) | MODEL 204.0/2 as of model year 2012, MODEL 204.3, MODEL 212 as of model year 2012 | |
| AR68.20-P-2150CW | |||
| 5 | Unclip contact plate (2) using assembly wedge (3) at center console (1) | Figure | |
| 6.1 | Guide telephone console with hinged contact plate (2) and Bluetooth module (A34/7) along with electrical wiring harness (4) out of center console | MODEL 204.0/2 as of model year 2012, MODEL 204.3, MODEL 212 as of model year 2012 | |
| AR68.20-P-2150CW | |||
| 6.2 | Pull contact plate (2) with Bluetooth module (A34/7) upwards out of center console (1) | MODEL 204.0/2 up to model year 2012, MODEL 207, MODEL 212 up to model year 2012 |
|
| 7 | Unclip cover (5) at contact plate (2) and swivel to one side | MODEL 204.0/2 up to model year 2012, MODEL 207, MODEL 212 up to model year 2012 | |
| 8 | Remove bolt (6) | MODEL 204.0/2 up to model year 2012, MODEL 207, MODEL 212 up to model year 2012 | |
| 9 | Expose electrical wiring harness (4) of Bluetooth module (A34/7) at contact plate (2) (arrows) and guide Bluetooth module (A34/7) with electrical wiring harness (4) out of contact plate (2) | MODEL 204.0/2 up to model year 2012, MODEL 207, MODEL 212 up to model year 2012 | |
| 10 | Install in the reverse order |
