Removing/installing drive unit and motor for steering column adjustment - AR46.10-P-0626CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 172, 207, 212 with CODE (275) Electrically adjustable front seats memory package Steering column up/down adjustment
MODEL 204 with CODE (275) Memory package (driver seat, steering column, mirrors) Steering column up/down adjustment
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||

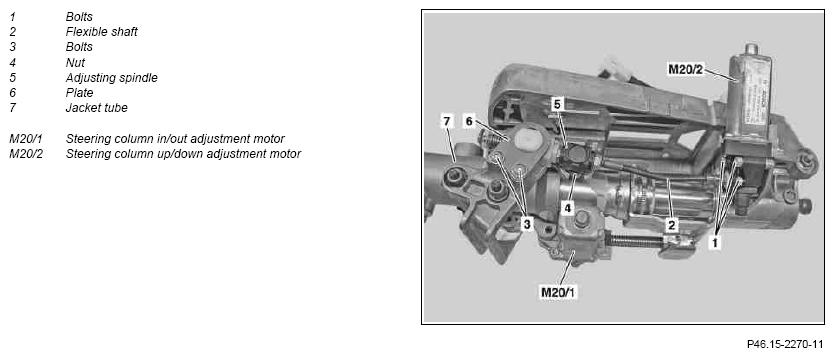

| 1 | Remove steering column tube (7) | Do not handle the steering column tube (7) by the steering column in/out adjustment motor (M20/1) or the steering column up/down adjustment motor (M20/2). These components will otherwise be damaged. |
|
| Model 172 | AR46.10-P-0400W | ||
| Model 204, 207 | AR46.10-P-0400CW | ||
| Model 212 | AR46.10-P-0400EW | ||
| 2 | Remove bolts (1) | ||
| 3 | Push steering column up/down adjustment motor (M20/2) to one side and pull flexible shaft (2) out of steering column up/down adjustment motor (M20/2) | ||
| 4 | Remove steering column up/down adjustment motor (M20/2) | ||
| 5 | Move height adjustment to lowest position | ||
| 6 | Unscrew nut (4) | ||
| 7 | Unscrew bolts (3) and remove plate (6) and adjusting spindle (5) with flexible shaft (2) | ||
| 8 | Install in the reverse order |
