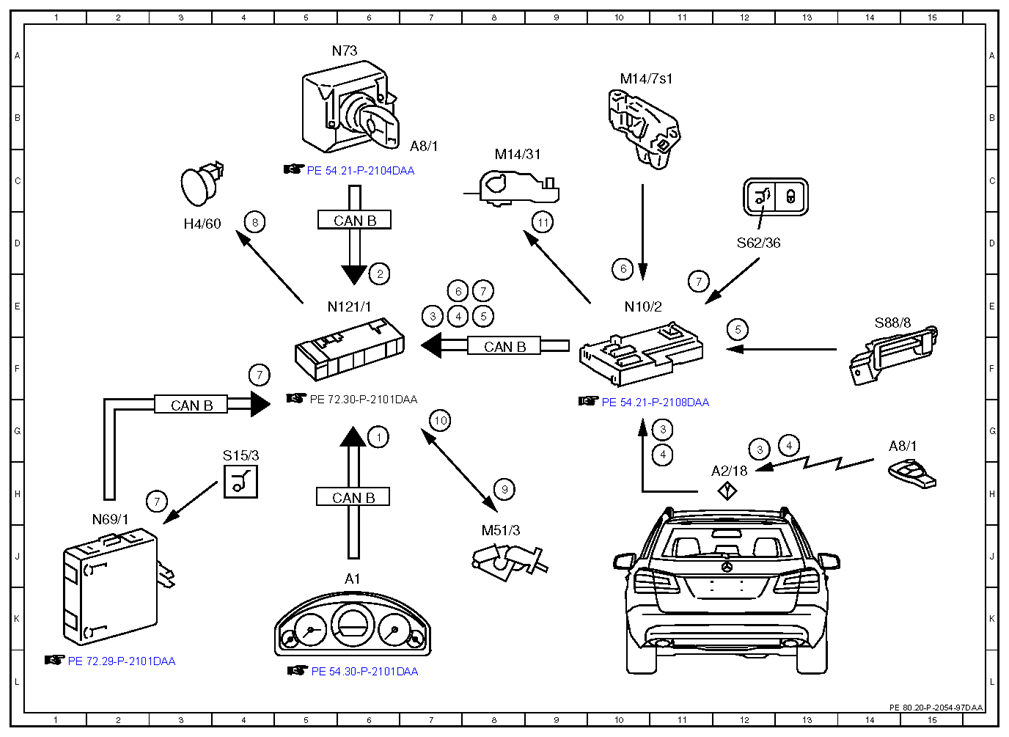

Electrical function schematic for rear-end door remote actuation - PE80.20-P-2054-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2 with CODE (890) EASY-PACK liftgate
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 6G |
| 10 | Tailgate control drive unit, status | 7G |
| 11 | Liftgate lock element, actuation | 9D |
| 2 | Circuit 15, status | 6E |
| 3 | Transmitter key, request | 7E |
| 3 | Transmitter key, request | 12G |
| 3 | Transmitter key, request | 11G |
| 4 | Access authorization code, signal | 7E |
| 4 | Access authorization code, signal | 13G |
| 4 | Access authorization code, signal | 11G |
| 5 | Tailgate external operation switch, status | 8E |
| 5 | Tailgate external operation switch, status | 12E |
| 6 | Tailgate rotary tumbler switch, status | 10D |
| 6 | Tailgate rotary tumbler switch, status | 7E |
| 7 | Tailgate control button, status | 3H |
| 7 | Tailgate control button, status | 4F |
| 7 | Tailgate control button, status | 8E |
| 7 | Tailgate control button, status | 11E |
| 8 | Tailgate control warning buzzer, actuation | 4D |
| 9 | Tailgate control drive unit, actuation | 8H |
| A1 | Instrument cluster | 6J |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 12H |
| A8/1 | Transmitter key | 7C |
| A8/1 | Transmitter key | 14G |
| CAN B | Interior CAN | 3G |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 8F |
| H4/60 | Trunk lid control warning buzzer | 3D |
| M14/31 | Trunk lid locking element | 8C |
| M14/7s1 | Trunk lid rotary tumbler switch | 10A |
| M51/3 | Trunk lid control drive unit | 8J |
| N10/2 | Rear SAM control unit with fuse and relay module | 10E |
| N121/1 | Tailgate control unit | 6E |
| N69/1 | Left front door control unit | 2H |
| N73 | Electronic ignition switch control unit | 5A |
| S15/3 | Driver trunk lid control button | 4G |
| S62/36 | Trunk lid control button | 12D |
| S88/8 | Trunk lid external operation switch | 14E |
