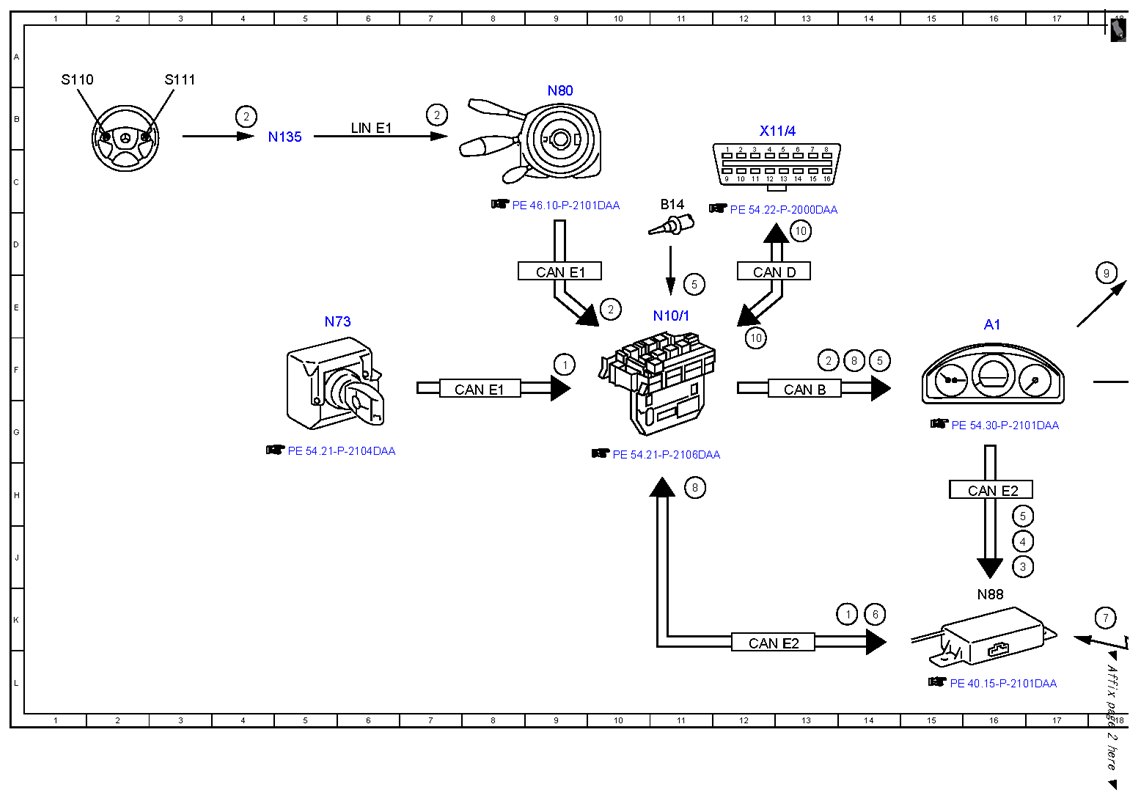

Electrical function schematic for tire pressure monitor (TPM (RDK)) - PE40.15-P-2050-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9F |
| 1 | Circuit 15, status | 14K |
| 10 | Diagnosis, communication | 13D |
| 10 | Diagnosis, communication | 12F |
| 2 | Multifunction steering wheel button group, signal | 13F |
| 2 | Multifunction steering wheel button group, signal | 7B |
| 2 | Multifunction steering wheel button group, signal | 4B |
| 2 | Multifunction steering wheel button group, signal | 10E |
| 3 | Activate tire pressure monitor, request | 16J |
| 4 | Vehicle speed, signal | 16J |
| 5 | Outside temperature, signal | 16H |
| 5 | Outside temperature, signal | 11E |
| 5 | Outside temperature, signal | 14F |
| 6 | Variant coding, signal | 14K |
| 7 | Tire pressure sensor, signal | 18K |
| 8 | Tire pressure monitor, message | 11H |
| 8 | Tire pressure monitor, message | 14F |
| 8 | Tire pressure monitor, message | 18G |

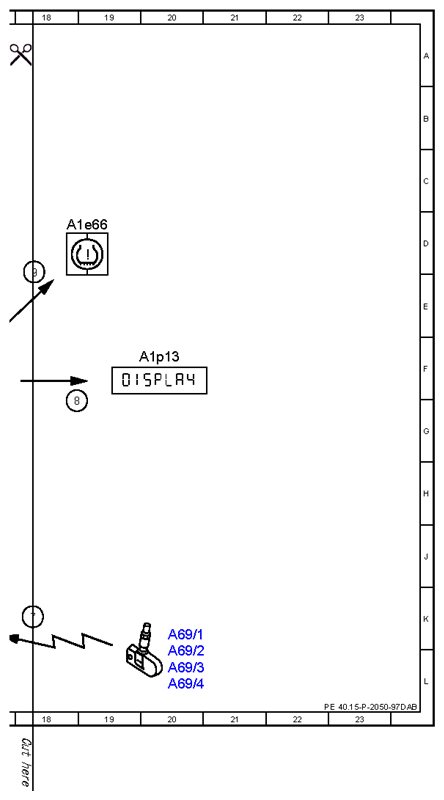

| 9 | Tire pressure monitor warning lamp, actuation | 18E |
| A1 | Instrument cluster | 16E |
| A1e66 | Tire pressure monitor warning lamp | 19D |
| A1p13 | Multifunction display | 20F |
| A69/1 | Left front tire pressure sensor | 20K |
| A69/2 | Right front tire pressure sensor | 20L |
| A69/3 | Left rear tire pressure sensor | 20L |
| A69/4 | Right rear tire pressure sensor | 20L |
| B14 | Outside temperature sensor | 11C |
| CAN B | Interior CAN | 13F |
| CAN D | Diagnostic CAN | 12E |
| CAN E1 | Chassis CAN 1 | 8F |
| CAN E1 | Chassis CAN 1 | 9E |
| CAN E2 | Chassis CAN 2 | 12K |
| CAN E2 | Chassis CAN 2 | 16H |
| LIN E1 | Steering LIN | 6B |
| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N135 | Steering wheel electronics | 4B |
| N73 | Electronic ignition switch control unit | 5E |
| N80 | Steering column module control unit | 9B |
| N88 | Tire pressure monitor control unit | 16K |
| S110 | Left multifunction steering wheel button group | 1A |
| S111 | Right multifunction steering wheel button group | 3A |
| X11/4 | Diagnostic connector | 12B |
