Remove grooved ball bearing in rear transmission housing - AR27.50-P-0601-01EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

Fig 1: Identifying Collet Chuck (140 589 06 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller (001 589 50 33 00)

Courtesy of MERCEDES-BENZ USA

Remove retaining ring of grooved ball bearing with pliers.
Screw in clamping pliers (1) into puller (2) and tighten.
Attach puller (2) over the bearing inner race.
Turning the upper part of the puller (2) counterclockwise (arrow) tightens the clamping pliers (1).
Pull out grooved ball bearing from transmission housing.

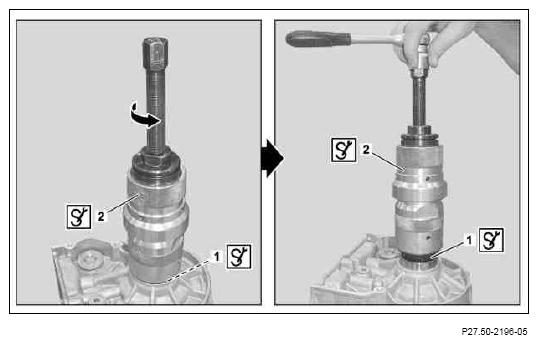

Fig 3: Turning Upper Part Of Puller Counterclockwise
Courtesy of MERCEDES-BENZ USA
