Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210G
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 460, 461, 463
Shown on MODEL 460, 461 except 461.302
Shown on model 461.302
Shown on model 463
| Check | |||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No fire, naked flames or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| 1 | Open engine hood | ||

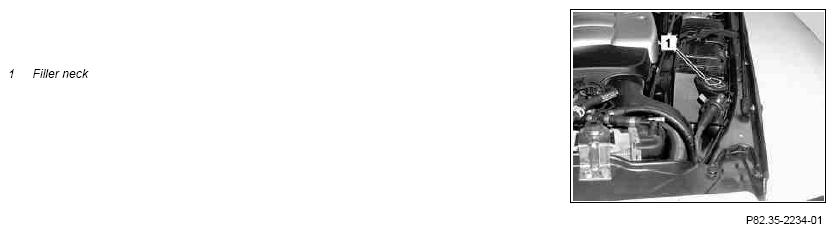

| 2 | Open the cap on the filler neck (1) of the washer fluid reservoir of the windshield washer system and pour in washer fluid | ||
| Windshield washer fluid concentrate | Windshield washer fluid concentrate. MB 371.0. | ||
| *BF82.35-P-1001-01J | |||
| 3 | Seal filler neck (1) with cap | ||
| 4 | Close engine hood |
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM
| Number | Designation | MODEL 461 | MODEL 463 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01J | Windshield washer fluid | Filling capacity | Liter | 7, 0 | 7, 0 |
