Clean water drain - AP82.35-P-8232A

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

Model 166, 204, 207, 212, 218, 231, 292

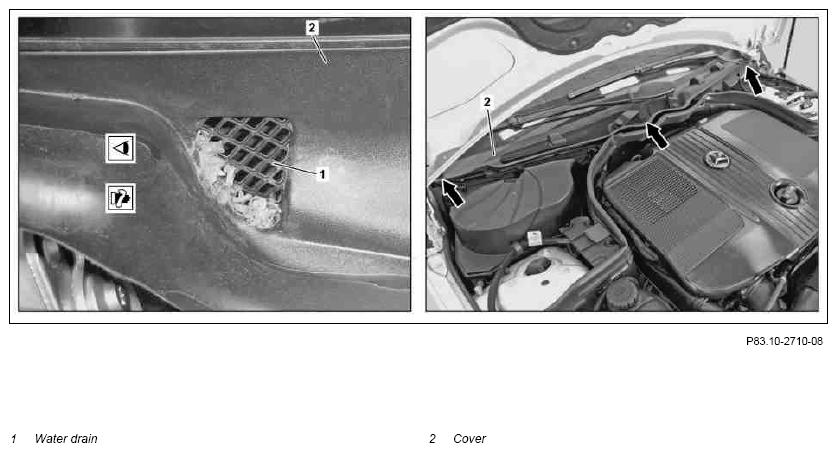

Fig 1: Locating Water Drain Pipe - Shown In Model 204
G10038279Courtesy of MERCEDES-BENZ USA

Shown in model 204

INSPECT Clean
1 Open engine hood and raise to vertical position Model 166, 204, 207, 212, 218, 231, 292
REFER TO TESTING & REPAIR   Model 204.3, 207, 212
IMPORTANT Model 204.3, 207, 212
with code U60 (Active Bonnet (Pedestrian protection))
Moving the engine hood to the vertical position:
Detach left and right clamping levers at the upper left and right hinges.		 AR88.40-P-1000EW
2 Check water drains (1) in cover (2) for signs of soiling, clean if necessary IMPORTANT Remove any soiling using a wet and dry vacuum cleaner.
3 Close engine hood Model 166, 204, 207, 212, 218, 231, 292
REFER TO TESTING & REPAIR   Model 204.3, 207, 212
IMPORTANT Model 204.3, 207, 212
with code U60 (Active Bonnet (Pedestrian protection))
Close engine hood:
Mount left and right clamping levers at the upper left and right hinges.		 AR88.40-P-1000EW
