Remove/install rear seat and rear seat backrest - AR91.12-P-1700GW
MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012
| Remove/install | |||
| 1 | Release rear seat and fold forward | ||

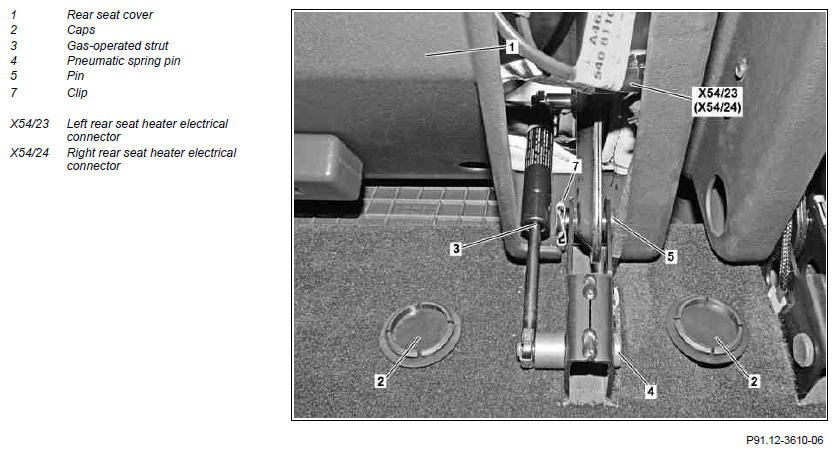

| 2 | Remove covering caps (2) | ||
| 3 | Disconnect left rear seat heater electrical connector (X54/23) or right rear seat heater electrical connector (X54/24) | ||
| Risk of injury caused by body parts being pinched or crushed when working on gas-filled struts under tension | Only remove or install gas-operated struts when device is in stress-relieved position and components are in proper working order and correctly secured. | AS00.00-Z-0012-01A | |
| 4 | Unlock and remove pin (4) of pneumatic spring (3) | ||
| 5 | Detach clamp (7) and remove pin (5) | ||
| 6 | Remove rear seat | ||

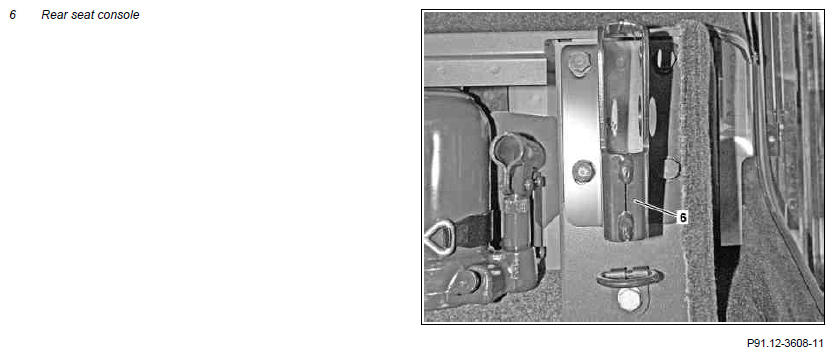

| 7 | Remove rear seat mounting console (6) | If necessary | |
| *BA91.12-P-1003-03J | |||
| 8 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 463 | |
|---|---|---|---|
| BA91.12-P-1003-03J | Bolt, rear seat mounting console to floor | Nm | 63 |
