Remove/install rear dome lamp - AR82.20-P-0113GW

MODEL 463 (except 463.202) as of model year 2013 /model refinement package 2012

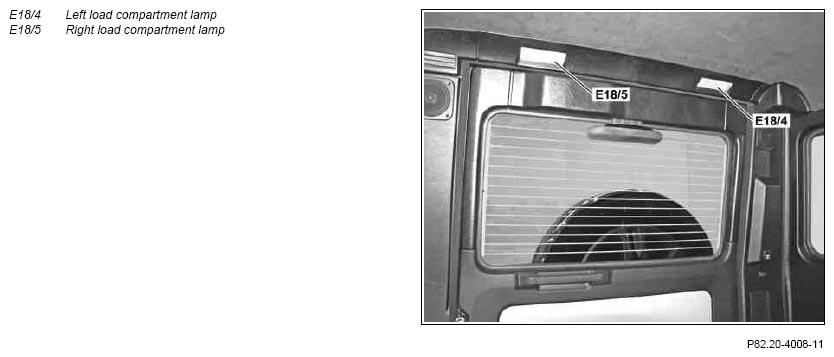

Fig 1: Identifying Load Compartment Lamps
G07891474Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install/B
1 Unclip left load compartment lamp (E18/4) and right load compartment lamp (E18/5) from paneling at roof frame
2 Disconnect electrical connector
3 Install in the reverse order
