Remove/install bass module speaker - AR82.62-P-7839GW
MODEL 463 (except 463.202) with CODE (EU9) Surround sound system (harman/kardon Logic 7) as of model year 2013 /model refinement package 2012

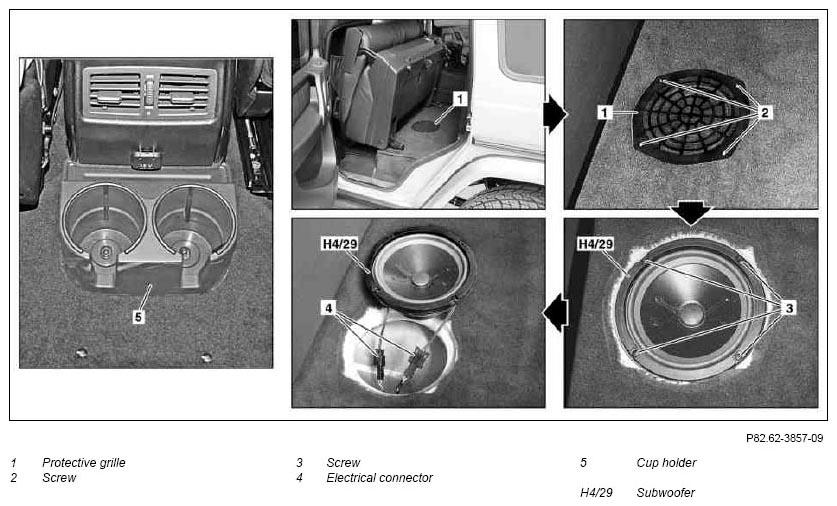

| Remove/install | |||
| 1 | Remove cup holder (5) in rear | Vehicles with code (FG2) Front and rear cup holder | |
| 2 | Fold left rear bench seat forward | ||
| 3 | Remove screws (2) of protective grille (1) | ||
| 4 | Remove bolt (3) | ||
| 5 | Remove subwoofer speaker (H4/29) | ||
| 6 | Disconnect electrical connector (4) | ||
| 7 | Install in the reverse order |
