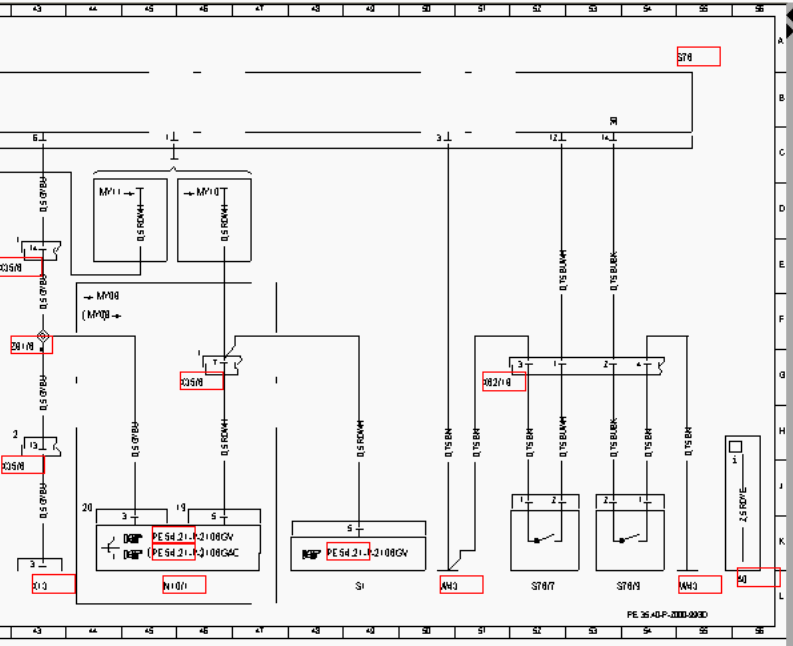

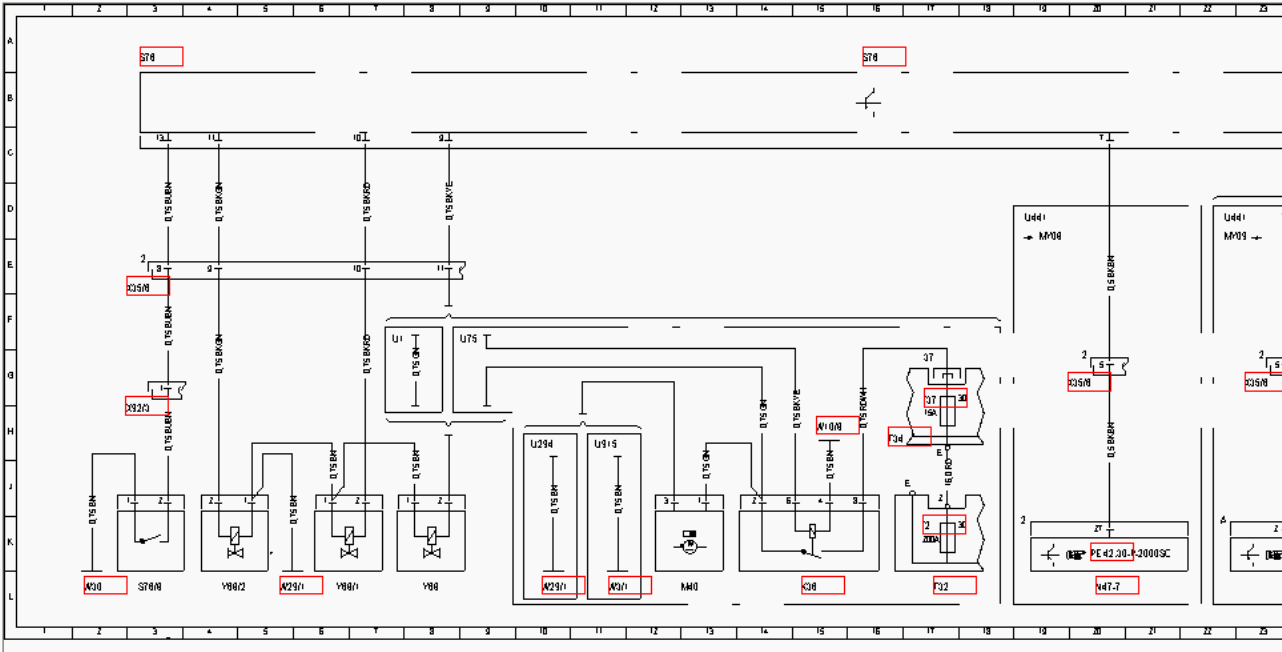

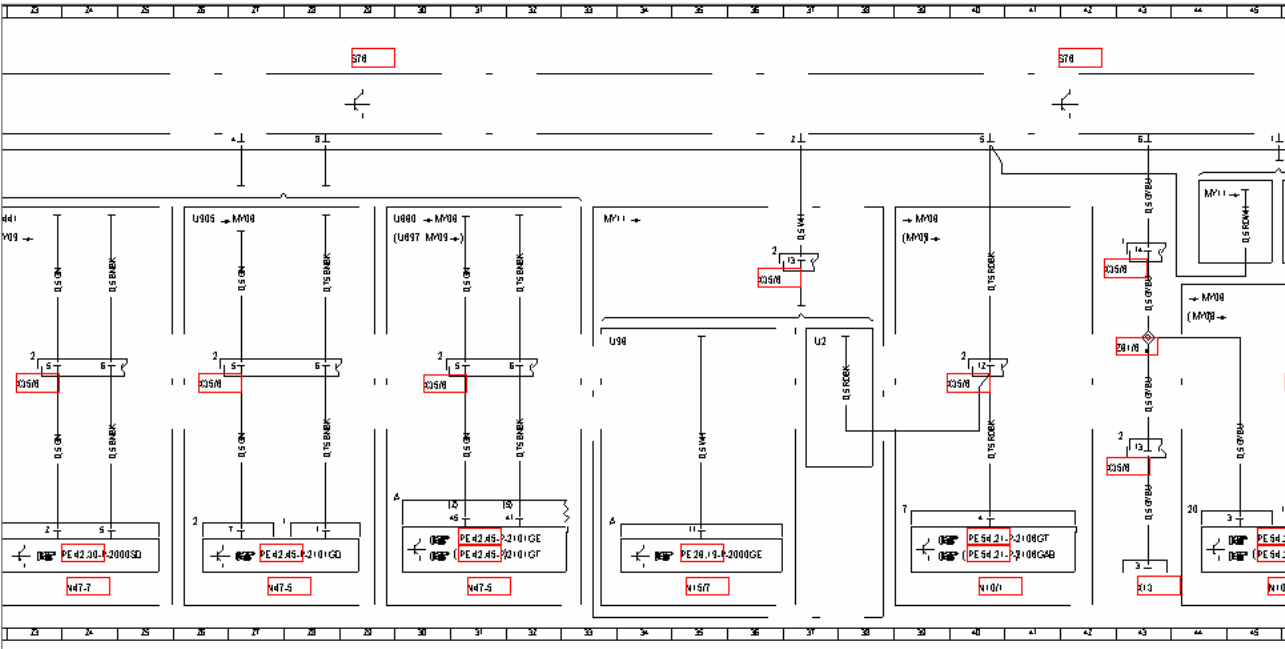

| A0 |
Color code key |
L56 |
| F32 |
Front prefuse |
L17 |
| F32f2 |
Prefuse 2 |
K17 |
| F34 |
Interior fuse box |
H16 |
| F34f37 |
Fuse 37 |
H17 |
| K36 |
Longitudinal equalization differential lock relay module |
L15 |
| M40 |
differential locks vacuum pump |
L13 |
| N10/1 |
Front signal acquisition and actuation module |
L40 |
| N10/1 |
Front signal acquisition and actuation module |
L45 |
| N15/7 |
VGS control unit |
L35 |
| N47-5 |
ESP and BAS control unit |
L27 |
| N47-5 |
ESP and BAS control unit |
L31 |
| N47-7 |
ABS control unit |
L20 |
| N47-7 |
ABS control unit |
L24 |
| S1 |
Light switch module |
L49 |
| S76 |
Differential lock switch group |
A3 |
| S76 |
Differential lock switch group |
A16 |
| S76 |
Differential lock switch group |
A29 |
| S76 |
Differential lock switch group |
A42 |
| S76 |
Differential lock switch group |
A55 |
| S76/7 |
Differential lock indicator switch (longitudinal equalization) |
L52 |
| S76/8 |
Rear axle differential lock |
L3 |
| S76/9 |
Front axle differential lock |
L54 |
| U1 |
Valid for diesel models |
F7 |
| U2 |
Valid for all except USA |
F37 |
| U294 |
Valid for G 55 AMG |
H10 |
| U441 |
Valid for special protection |
D19 |
| U441 |
Valid for special protection |
D22 |
| U697 |
Valid for all |
D30 |
| U75 |
Valid for gasoline engines |
F9 |
| U880 |
Valid for 0M642 |
D30 |
| U905 |
Valid for all except 0M642 |
D26 |
| U915 |
Valid for all except G 55 AMG |
H11 |
| U98 |
Valid for USA |
G33 |
| W10/8 |
Ground (right battery recess) |
H15 |
| W29/1 |
Ground (left A-pillar) |
L5 |
| W3/1 |
Ground (frame) |
L2 |
| W43 |
Ground (firewall) |
L50 |
| W43 |
Ground (firewall) |
L55 |
| X13 |
Cigar lighter connector |
L43 |
| X35/6 |
Cockpit/module box separation point |
F3 |
| X35/6 |
Cockpit/module box separation point |
G20 |
| X35/6 |
Cockpit/module box separation point |
G23 |
| X35/6 |
Cockpit/module box separation point |
G26 |
| X35/6 |
Cockpit/module box separation point |
G30 |
| X35/6 |
Cockpit/module box separation point |
E36 |
| X35/6 |
Cockpit/module box separation point |
G39 |
| X35/6 |
Cockpit/module box separation point |
E42 |
| X35/6 |
Cockpit/module box separation point |
J42 |
| X35/6 |
Cockpit/module box separation point |
G46 |
| X62/18 |
Front axle differential lock connector (function indicator), 2 poles |
G51 |
| X92/3 |
Frame connector (22-pin) |
H3 |
| Y68 |
Differential lock solenoid valve (longitudinal equalization) |
L8 |
| Y68/1 |
Differential lock solenoid valve (rear axle) |
L6 |
| Y68/2 |
Differential lock solenoid valve (front axle) |
L4 |
| Z81/6 |
Circuit 58d connector sleeve |
G42 |
