Remove/install paneling on A-pillar - AR68.30-P-4050GW

MODEL 463 as of model year 2013/model refinement package 2012

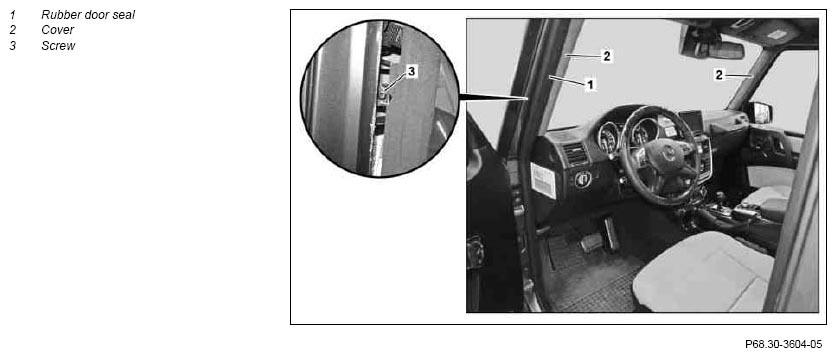

Fig 1: Identifying Rubber Door Seal, Cover And Screw
G07892594Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove rubber door seal (1) from A-pillar
2 Remove bolt (3)
3 Remove paneling (2) from A-pillar
4 Install in the reverse order
