Remove/install cover for steering column on instrument panel - AR68.10-P-1060GX

MODEL 463.202 /222 /236 /237, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 as of 1.6.04, 463.270 /271 /303 /306, 463.309 /322 /323 /332 /333 as of 1.6.04, 463.336 /340 /341 /346

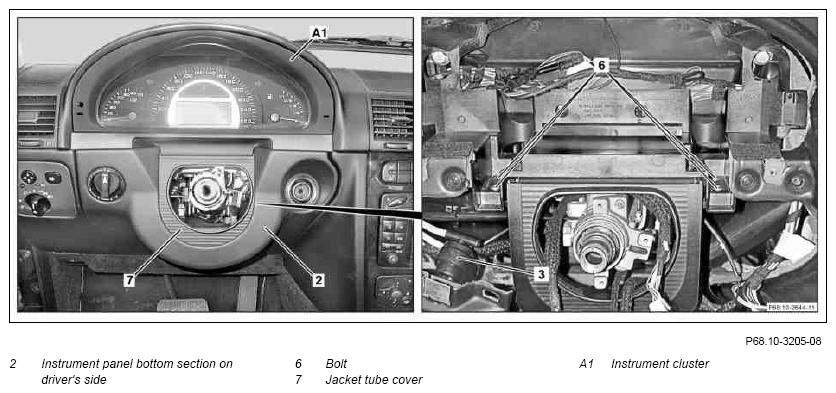

Fig 1: Identifying Steering Column Cover Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

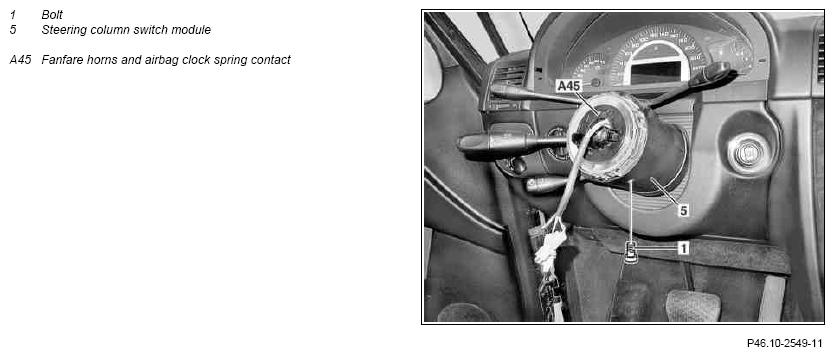

Fig 2: Identifying Steering Column Cover Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove steering wheel		AR46.10-P-0100P
2	Remove instrument panel bottom section on driver's side (2)		AR68.10-P-1505GM
3	Loosen bolt (1) from steering column switch module (5)
4	Completely remove steering column switch module (5) with combination switch and fanfare horns and airbag clock spring contact (A45) from steering column
5	Remove instrument cluster (A1)
6	Remove jacket tube cover (7)	For this purpose, unscrew bolts (6) from jacket tube cover (7)
7	Install in the reverse order
8	Perform a function test	Check all functions of multi-function steering wheel and switch on jacket tube.
