Using fixing mounts and templates - AR68.20-P-2030-02I
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1011-20A | Universal profile milling machine with surface milling cutter (3 single lip miller Ø 5 60mm, 2 single lip miller Ø 5 90mm, templates, fixing supports for model 129, 170, 202, 208, 210, 463), Firma Fetzer GmbH 75446 Wiernsheim-Pinache |

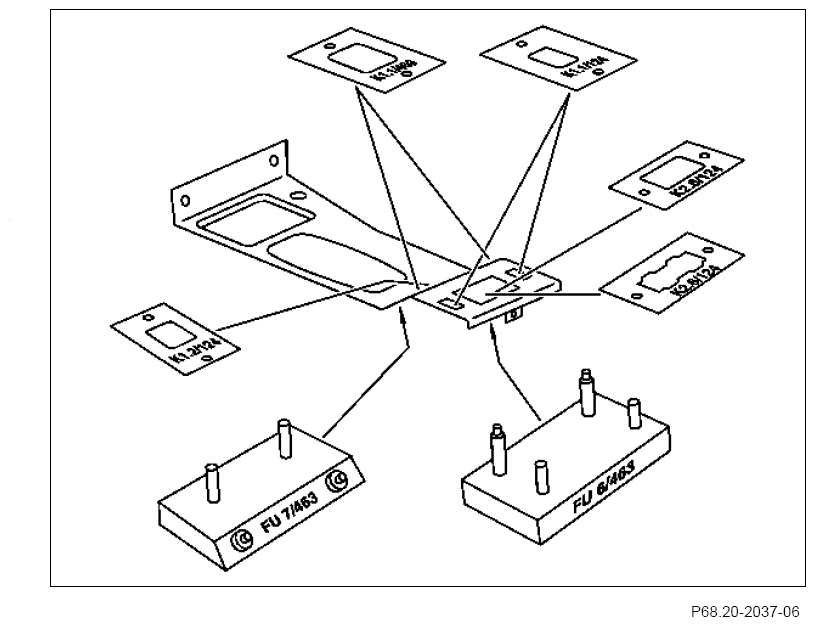

Bottom cover
Cover can only be processed with new clamping and milling table SFT 3/140.
For cutouts in the middle switch level using FU7/463, it is necessary to insert either suitable spacer blocks or a fitting spacer frame between the wood surface of the cover and the milling table. In this case, it is necessary to use the cutter dia. 5 90 mm. The maximum cutting depth per milling cut should not be >2 mm.
