Using fixing mounts and templates - AR68.20-P-2030-02H
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1011-20A | Universal profile milling machine with surface milling cutter (3 single lip miller Ø 5 60mm, 2 single lip miller Ø 5 90mm, templates, fixing supports for model 129, 170, 202, 208, 210, 463), Firma Fetzer GmbH 75446 Wiernsheim-Pinache |
Top cover
Cover can only be processed with new clamping and milling table SFT 3/140.

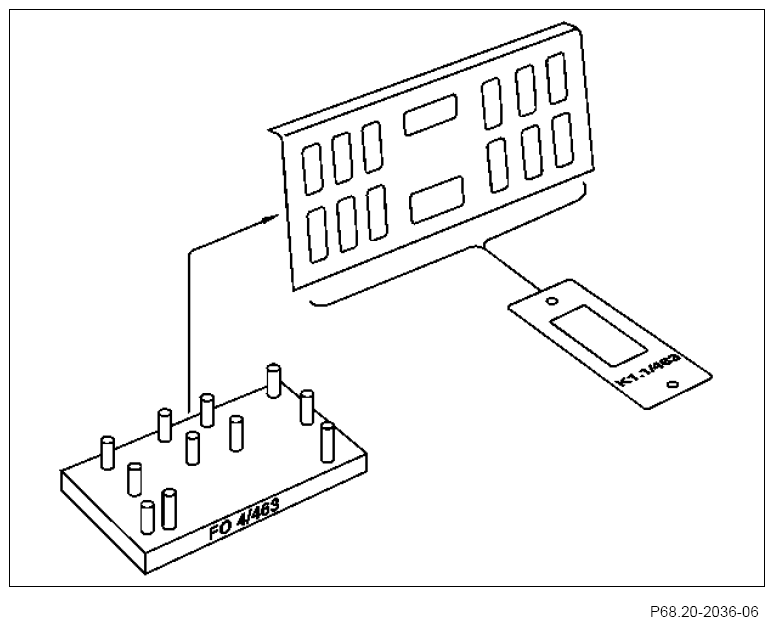

The bottom edge of the cover as well as the left side must be positioned precisely against the stop pins of template FO4/463.
