Remove/install stowage box - AR68.72-P-0010PM

MODEL 463.236 /248 with code (979) Special protection version with code (ZS6) Special protection version FB6 with code (E26) 100 Ah additional battery incl. cutoff relay

MODEL 463.236 /248 with code (979) Special protection version with code (ZS7) Special protection version FB7 with code (E26) 100 Ah additional battery incl. cutoff relay

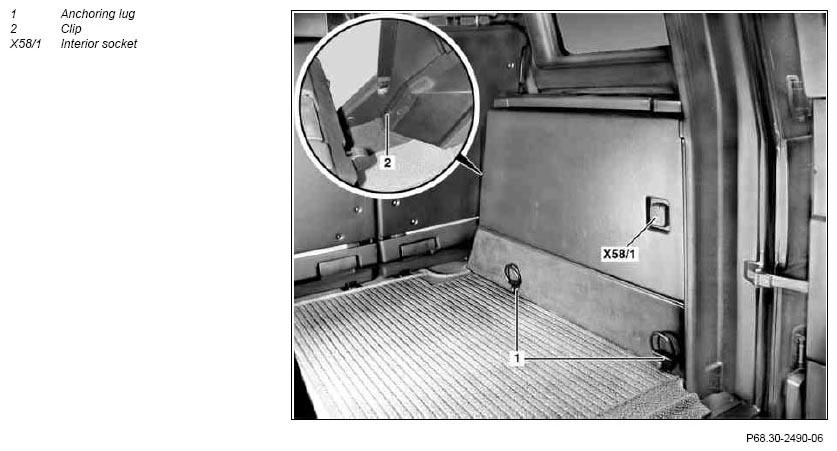

Fig 1: Identifying Anchoring Lug, Clip And Interior Socket

Courtesy of MERCEDES-BENZ USA

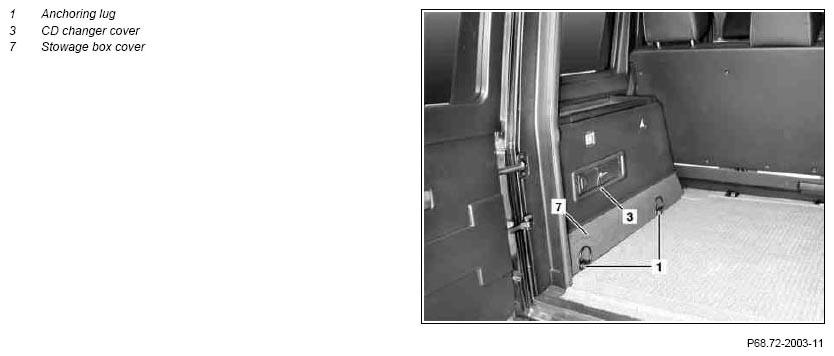

Fig 2: Identifying Anchoring Lug, CD Changer Cover And Stowage Box Cover

Courtesy of MERCEDES-BENZ USA

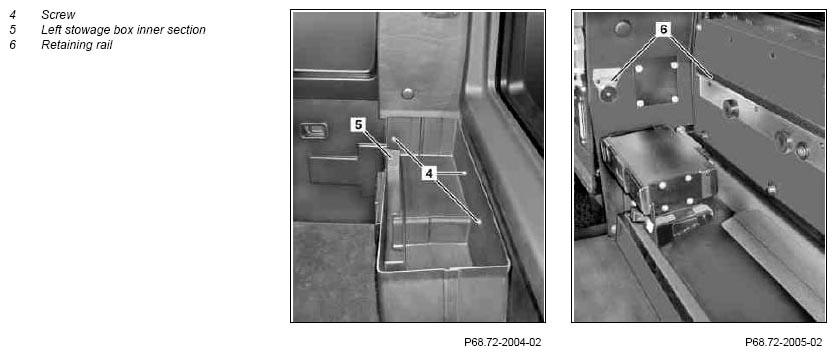

Fig 3: Identifying Screw, Left Stowage Box Inner Section And Retaining Rail

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Tilt rear seat toward front	On vehicles with rear bench seat
1.2	Adjust rear seats toward front	On vehicles with individual seats in rear.
2	Remove extinguishing agent tank panel	Only on vehicles with fire extinguisher system.
3	Remove fire extinguisher agent reservoir	Only on vehicles with fire extinguisher system.	AR86.10-P-0100A
4	Remove clip (2)
5	Remove anchoring lug (1) from stowage box	Unclip cover and unscrew bolts
6	Remove stowage box cover (7)
7.1	Remove interior socket (X58/1) from right stowage box	Only if right stowage box is removed
7.2	CD changer cover (3)	Only if left stowage box is removed and only with code (EP5) CD changer The CD changer cover (3) is located on the left stowage box, only with code (EP5) CD changer.
8	Remove bolts (4)
9	Remove left stowage box inner section (5)
10	Remove stowage box upward from retaining rails (6)	The stowage box is fastened with a double-sided adhesive tape, danger of breakage.
		Installation:  Replace double-sided adhesive tape. The stowage box should be seated correctly in the rear door seal.	*BR00.45-Z-1085-02A
11	Install in the reverse order
