Remove/install instrument panel grab handle - AR68.70-P-0301GR

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336/340 /341 /346

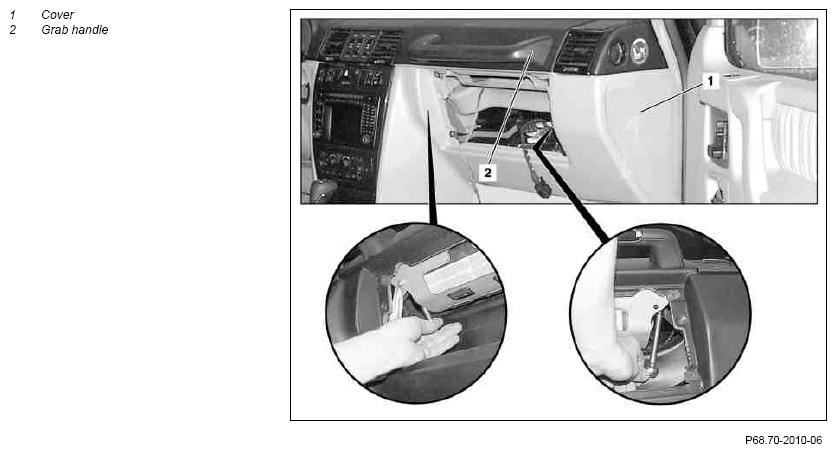

Fig 1: Removing/Installing Instrument Panel Grab Handle (1 Of 2)

Courtesy of MERCEDES-BENZ USA

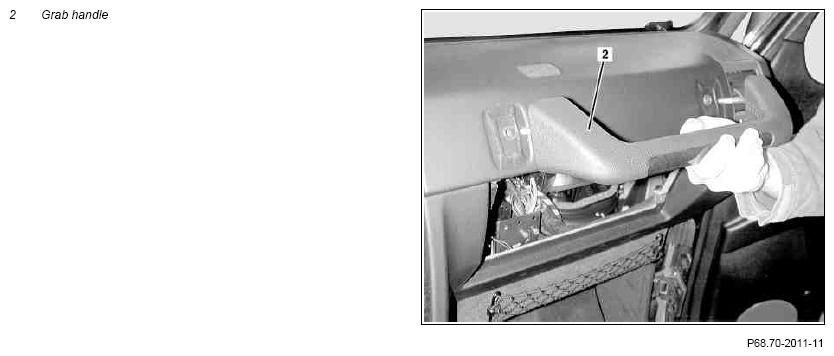

Fig 2: Removing/Installing Instrument Panel Grab Handle (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove glove compartment		AR68.10-P-1400GM
2	Remove cover (1)
3	Remove grab handle (2)	Unscrew both nuts on left and right in glove compartment opening
4	Remove grab handle (2)
5	Install in the reverse order
