Remove/install dashboard handle - AR68.70-P-0301GW

MODEL 463 as of model year 2013/model refinement package 2012

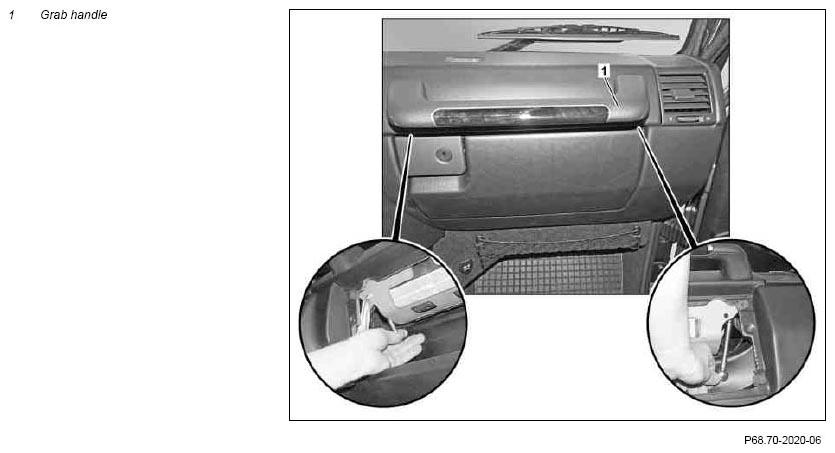

Fig 1: Identifying Grab Handle
G07892619Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove glove box   AR68.10-P-1400GW
2 Unscrew both nuts on left and right through opening on glove box
3 Pull out grab handle (1)
4 Install in the reverse order
