Remove/install cover below instrument panel (right) - AR68.10-P-1520GW

MODEL 463 as of model year 2013/model refinement package 2012

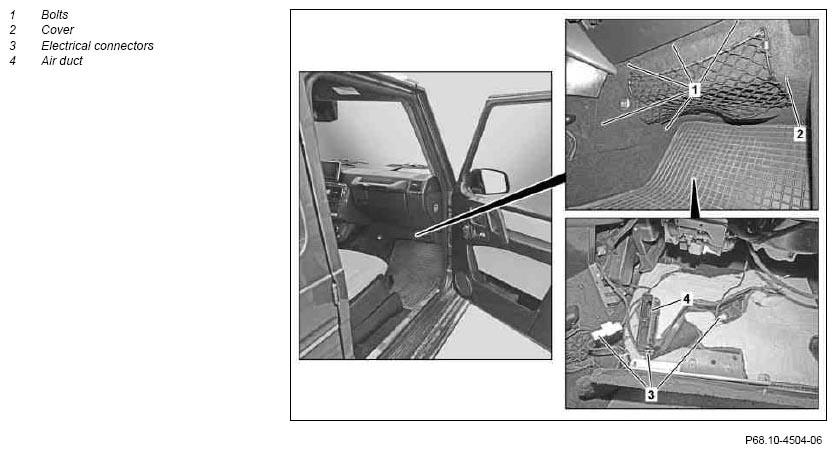

Fig 1: Identifying Bolts, Cover, Electrical Connectors And Air Duct

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Remove bolt (1)
3	Slightly press cover (2) downward
4	Remove air duct (4) from air ducting
5	Disconnect electrical connectors (3) from right front footwell lamp (E17/15) right footwell vent air outlet temperature sensor (B10/36)
6	Remove cover (2)	Installation:  Ensure that air duct (4) is seated correctly in cover (2).
7	Install in the reverse order
