Remove/install ashtray housing in front center console - AR68.20-P-2400GW

MODEL 463 as of model year 2013/model refinement package 2012

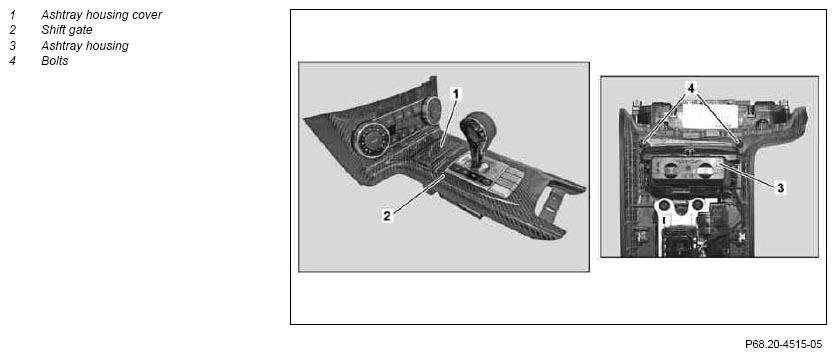

Fig 1: Identifying Ashtray Housing Cover, Shift Gate, Ashtray Housing And Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove shift gate (2)	See removal of center console.	AR68.20-P-2000GW
2	Remove bolts (4)
3	Pull ashtray housing (3) out of shift gate (2)
4	Install in the reverse order
