Air suspension, location of components - GF32.22-P-0001-01FLX

MODEL 212 with CODE 488 (Steel/air suspension)

Shown on model 212.0

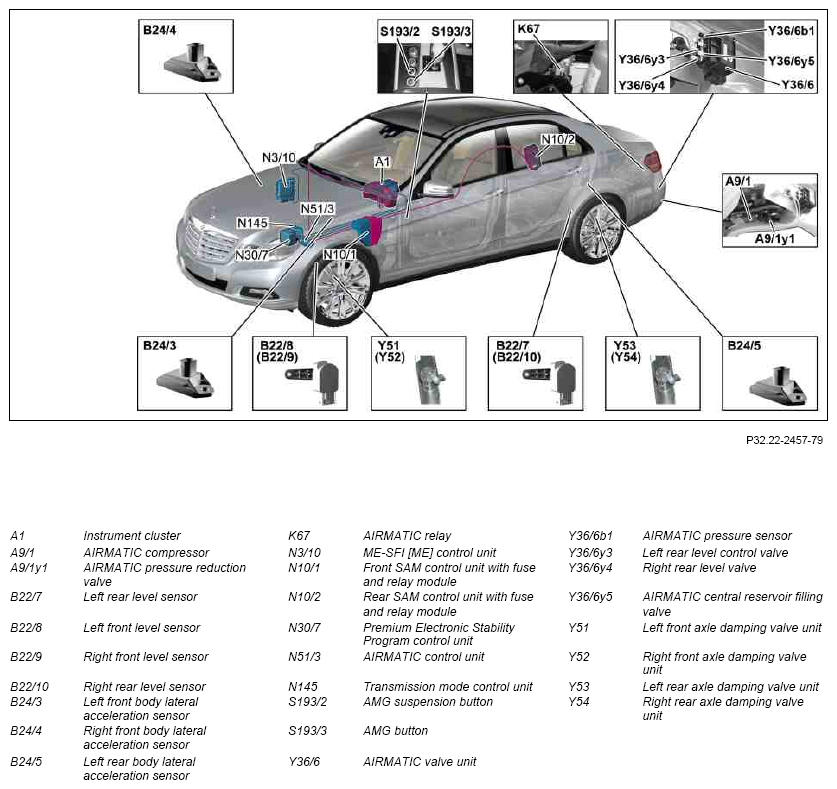

Fig 1: Air Suspension Components - Shown On Model 212.0
G10050137Courtesy of MERCEDES-BENZ USA
