Reversing camera control unit, component description - GF54.65-P-5030FLJ
MODEL 212.0/2 up to 28.2.13 with CODE (218) Backup camera with CODE (498) Japan version
Shown on model 212.0

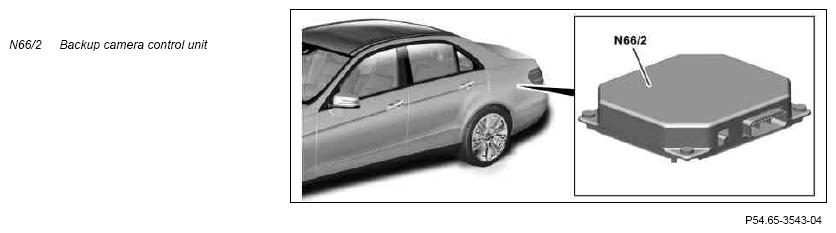

Location
The backup camera control unit is located behind the trim on the left side of the luggage compartment.
Task
The reversing camera control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The following signal is read in via a direct line:
- Reversing camera (B84/3) (Composite Video Baseband Signal (CVBS) signal)
Interior CAN
The signals are read in by the reversing camera control unit over the interior CAN.
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Actuation of components
Components are actuated with the following line:
- Direct line
Direct line
The following components are actuated via a direct line:
- Backup camera
- COMAND controller unit (A40/3) (CVBS signal)
| Wiring diagram for backup camera control unit | PE54.65-P-2102-97DAB |
