Component description for Audio/COMAND control panel - GF54.21-P-4501FLA
MODEL 212

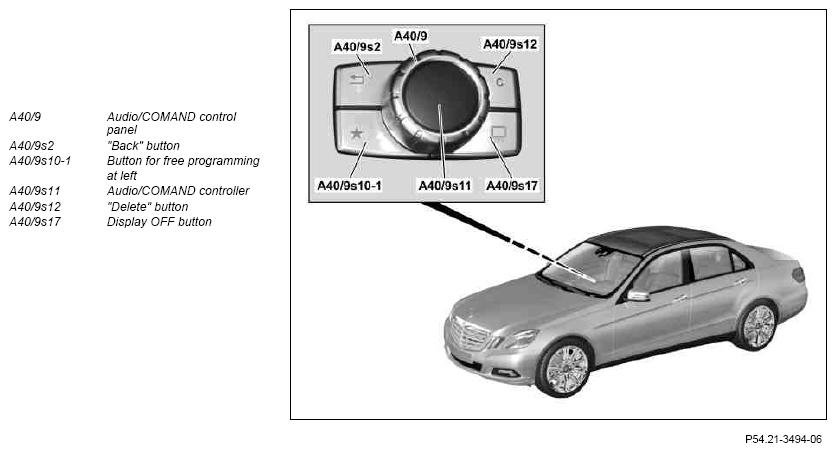

Shown on model 212.0 as of 2.3.15 with CODE 279 (Electronic gear selector) and except CODE 432 (Left and right dynamic seat)

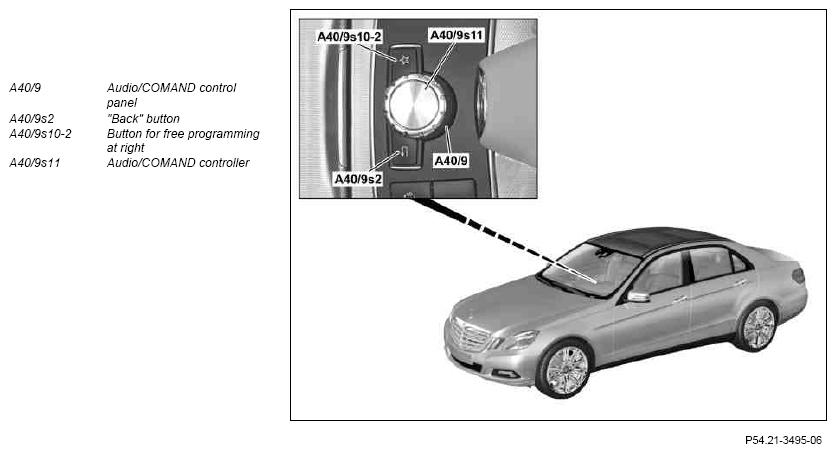

Shown on model 212.0 as of 2.3.15 except CODE 279 (Electronic gear selector)

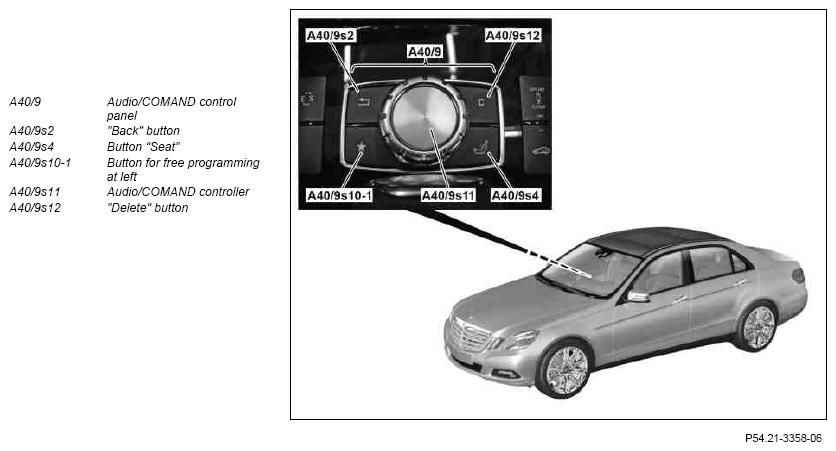

Shown on model 212.0 as of 1.3.13 with CODE 279 (Electronic gear selector) and CODE 432 (Left and right dynamic seat)

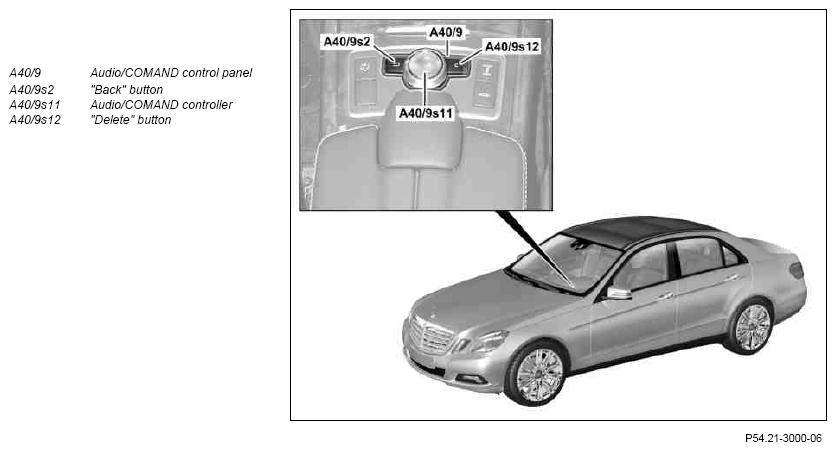

Shown on model 212.0 up to 28.2.13
Location
The Audio/COMAND control panel is located on the center console between the front seats.
Tasks
The Audio/COMAND control panel is the central control for the telematics functions. The Audio/COMAND control panel can be used to operate the functions shown on the Audio/COMAND display (A40/8). The Audio/COMAND control panel receives the following signals:
- Power supply of circuit 30g and circuit 31 via a direct line
- Control data from audio equipment via telematics CAN (CAN A) The Audio/COMAND control panel sends the following signals:
- Control signals via telematics CAN to the audio equipment
Body
Depending on the equipment specification involved, the Audio/COMAND control panel is equipped with the following controls:
- Audio/COMAND controller for navigation within the menu and selection of menu items, for operation of character bar on Audio/COMAND display and for navigating on the Internet
- "Back" button e.g. to jump back a level within a menu
- "Delete" button, to delete individual characters or complete entries
- Button for free programming at left, can be assigned by the user
- Button for free programming at right, can be assigned by the user
- "Seat" button, to make seat adjustments
- Display OFF button, to switch Audio/COMAND display off and on again
The Audio/COMAND controller is always installed. A detailed overview of the buttons and conditions of installation can be found under "Variants".
Function
The buttons are designed as push/push buttons.
The following individual operations are possible with the Audio/COMAND controller:
- Press: Down vertically
- Turn: To left or right
- Slide: To four quadrants as well as diagonally
Schematic view of operating functions
Variants
The Audio/COMAND control panel is installed in versions with 2 buttons or 4 buttons. The version with 4 buttons is installed in 3 variants. The following tables provide an overview of the variants.
| Version / Equipment | As of 2.3.15 except CODE 279 (Electronic gear selector) | As of 2.3.15 with CODE 279 (Electronic gear selector) and except CODE 432 (Left and right dynamic seat) | As of 2.3.15 with CODE 279 (Electronic gear selector) and with CODE 432 (Left and right dynamic seat) |
|---|---|---|---|
| 2 buttons: "Back" button and button for free programming at right |
Standard | Unavailable | Unavailable |
| 4 buttons with "Seat" button: "Back" button, "Delete" button, button for free programming at left, "Seat" button |
Unavailable | Unavailable | Standard |
| 4 buttons with button Display OFF: "Back" button, "Delete" button, button for free programming at left, button Display OFF |
Unavailable | Standard | Unavailable |
| Version / Equipment | Up to 28.2.13 | As of 1.3.13 up to 1.3.15 except CODE 279 (Electronic gear selector) | As of 1.3.13 up to 1.3.15 with CODE 279 (Electronic gear selector) and except CODE 432 (Left and right dynamic seat) | As of 1.3.13 up to 1.3.15 with CODE 279 (Electronic gear selector) and with CODE 432 (Left and right dynamic seat) |
|---|---|---|---|---|
| 2 buttons: "Back" button and "Delete" button |
Standard | Standard | Unavailable | Unavailable |
| 4 buttons with "Seat" button: "Back" button, "Delete" button, button for free programming at left, "Seat" button |
Unavailable | Unavailable | Unavailable | Standard |
| 4 buttons with Unavailable button for free programming at right: "Back" button, "Delete" button, button for free programming at left, button for free programming at right |
Unavailable | Unavailable | Standard | Unavailable |
| Wiring diagram, front central operating unit | A40/9 | PE82.00-P-2060-97DAA |
