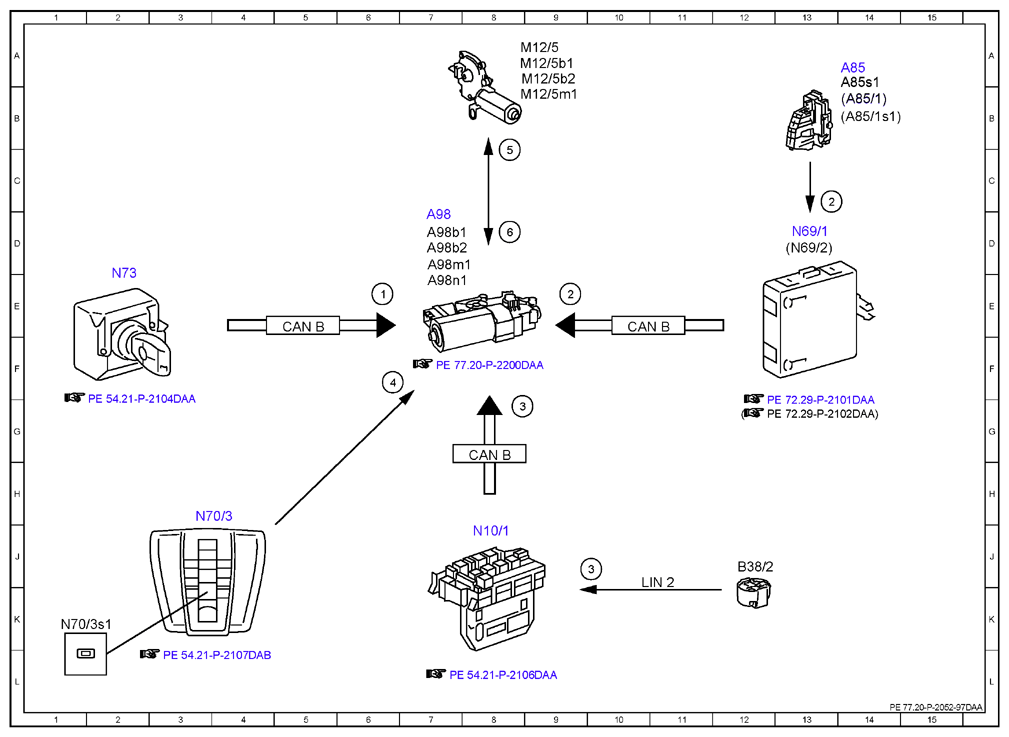

Function schematic for electric panoramic sliding roof - PE77.20-P-2052-97DAA
MODEL 212 with CODE 413 (Panoramic glass roof with top sliding roof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Door rotary tumbler switch, status | 9E |
| 2 | Door rotary tumbler switch, status | 13C |
| 3 | Rain/light sensor, status | 8G |
| 3 | Rain/light sensor, status | 10J |
| 4 | Panoramic sliding roof switch, status | 6F |
| 5 | Panoramic sliding roof roller sun blind drive unit, actuation | 8C |
| 6 | Hall sensors, signal | 8D |
| A85 | Left front door lock | 14A |
| A85/1 | Right front door lock | 14B |
| A85/1s1 | Right front door rotary tumbler switch | 14B |
| A85s1 | Left front door rotary tumbler switch | 14B |
| A98 | Panoramic sliding roof control module | 7D |
| A98b1 | Hall sensor 1, panoramic sliding roof | 7D |
| A98b2 | Hall sensor 2, panoramic sliding roof | 7D |
| A98m1 | Panoramic sliding roof motor | 7D |
| A98n1 | Panoramic sliding roof control unit | 7E |
| B38/2 | Rain/light sensor | 12J |
| CAN B | Interior CAN | 8G |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 10E |
| LIN 2 | Wiper/inside rearview mirror LIN | 10J |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 9A |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 9A |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 9A |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 9B |
| N10/1 | Front SAM control unit with fuse and relay module | 8J |
| N69/1 | Left front door control unit | 13D |
| N69/2 | Right front door control unit | 13D |
| N70/3 | Overhead control panel electronics | 3H |
| N70/3s1 | Panoramic sliding roof switch | 1K |
| N73 | Electronic ignition switch control unit | 2E |
