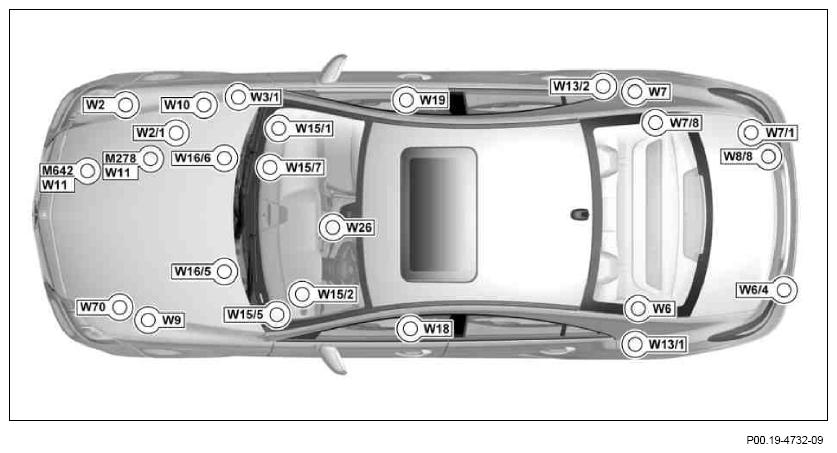

Location and assignment of ground points - GF00.19-P-2000XAA
MODEL 218
| W2 | Right front ground point at lamp unit | Location | GF00.19-P-2000-02XAA |
| Assignment | PE00.19-P-2800XAA | ||
| W2/1 | Right front ground point | Location | GF00.19-P-2000-02XAA |
| Assignment | PE46.35-P-2101XAA | ||
| W2/2 | Left front ground point | Assignment | PE46.35-P-2101XAA |
| W3/1 | Ground point (right front wheel well) | Location | GF00.19-P-2000-02XAA |
| Assignment | PE00.19-P-2800XAA | ||
| W6 | Left rear wheel well ground point | Location | GF00.19-P-2000-06XAA |
| Assignment | PE00.19-P-2800XAA | ||
| W6/4 | Ground point (bumper bracket on left of trunk) | Location | GF00.19-P-2000-06XAA |
| Assignment of AIRmatic | PE32.22-P-2101XAA | ||
| Assignment of level control | PE32.33-P-2101XAA | ||
| W7 | Right rear wheel well ground point | Location | GF00.19-P-2000-09XAA |
| Assignment | PE00.19-P-2800XAB | ||
| W7/1 | Right tail lamp trunk ground point | Location | GF00.19-P-2000-09XAA |
| Assignment | PE00.19-P-2800XAB | ||
| W7/6 | Rear additional battery ground point | Assignment, code U77 | PE14.40-P-2101XAB |
| Assignment | PE15.00-P-2103XAA | ||
| W7/8 | Right wheelhouse trunk ground point | Location | GF00.19-P-2000-09XAA |
| Assignment | PE00.19-P-2800XAB | ||
| W8/2 | Right trunk lid/liftgate ground point | Assignment | PE00.19-P-2800XAI |
| W8/8 | Right rear ground point | Location | GF00.19-P-2000-09XAA |
| Assignment | PE15.00-P-2101XAD | ||
| W9 | Left front ground point (at lamp unit) | Location | GF00.19-P-2000-01XAA |
| Assignment | PE00.19-P-2800XAA | ||
| W10 | Right front battery ground point | Location | GF00.19-P-2000-02XAA |
| Assignment (M642) | PE15.00-P-2101XAA | ||
| Assignment (M278) | PE15.00-P-2101XAB | ||
| Assignment (start/stop) | PE54.15-P-2502XAA | ||
| W11 | Combustion engine ground point | Location | GF00.19-P-2000-02XAA |
| Assignment M276 (except 276.8) in MODEL 218 control unit N3/10, engine connector | PE07.08-P-2101XAE | ||
| Assignment M642 in MODEL 218 | PE15.00-P-2101XAA | ||
| Assignment M651 in MODEL 218 | PE15.00-P-2101XAD | ||
| W13/1 | Ground point (left rear window heater) | Location | GF00.19-P-2000-04XAA |
| Assignment | PE54.21-P-2108XAG | ||
| W13/2 | Ground point (right rear window heater) | Location | GF00.19-P-2000-05XAA |
| Assignment | PE54.21-P-2108XAG | ||
| W15/1 | Right footwell ground point | Location | GF00.19-P-2000-05XAA |
| Assignment | PE00.19-P-2800XAC | ||
| W15/2 | Left footwell ground point | Location | GF00.19-P-2000-04XAA |
| Assignment | PE00.19-P-2800XAD | ||
| W15/5 | Left front footwell ground point | Location | GF00.19-P-2000-04XAA |
| Assignment | PE00.19-P-2800XAE | ||
| W15/7 | Right front footwell ground point | Location | GF00.19-P-2000-05XAA |
| Assignment | PE00.19-P-2800XAF | ||
| W16/3 | Left major assembly compartment ground point | Assignment | PE54.15-P-2502XAA |
| W16/4 | Right wheelhouse ground point | Assignment | PE54.15-P-2502XAA |
| W16/5 | Left major assembly compartment electronics ground point | Assignment | PE00.19-P-2800XAD |
| W16/6 | Right major assembly compartment ground point | Location | GF00.19-P-2000-02XAA |
| Assignment | PE07.16-P-2101XAD | ||
| W18 | Left front seat crossmember ground point | Location | GF00.19-P-2000-04XAA |
| Assignment | PE00.19-P-2800XAG | ||
| W19 | Right front seat crossmember ground point | Location | GF00.19-P-2000-05XAA |
| Assignment | PE00.19-P-2800XAH | ||
| W26 | Supplemental restraint system control unit ground point | Location | GF00.19-P-2000-04XAA |
| Assignment | PE91.60-P-2105XAB | ||
| W48 | Left rear roof frame ground point | Assignment | PE00.19-P-2800XAI |
| W48/1 | Right rear roof frame ground point | Assignment | PE00.19-P-2800XAI |
| W70 | Electronic Stability Program ground point | Location | GF00.19-P-2000-01XAA |
| Assignment, control unit N30/4, A7/3, Electronic Stability Program (ESP) Basic up to model year 2015 | PE42.47-P-2000XAA | ||
| Assignment, control unit N30/7, A7/3, Electronic Stability Program (ESP) Premium up to model year 2015 | PE42.47-P-2000XAB | ||
| Assignment, control unit N30/4, N30/7, A7/3, Electronic Stability Program (ESP) as of model year 2015 | PE42.47-P-2000XAC | ||
| Location and assignment of ground points, engine compartment, left | GF00.19-P-2000-01XAA | ||
| Location and assignment of ground points, engine compartment, right | GF00.19-P-2000-02XAA | ||
| Location and assignment of ground points - interior left | GF00.19-P-2000-04XAA | ||
| Location and assignment of ground points, interior compartment, right | GF00.19-P-2000-05XAA | ||
| Location and assignment of ground points, trunk, left | GF00.19-P-2000-06XAA | ||
| Location and assignment of ground points - trunk right | GF00.19-P-2000-09XAA |
