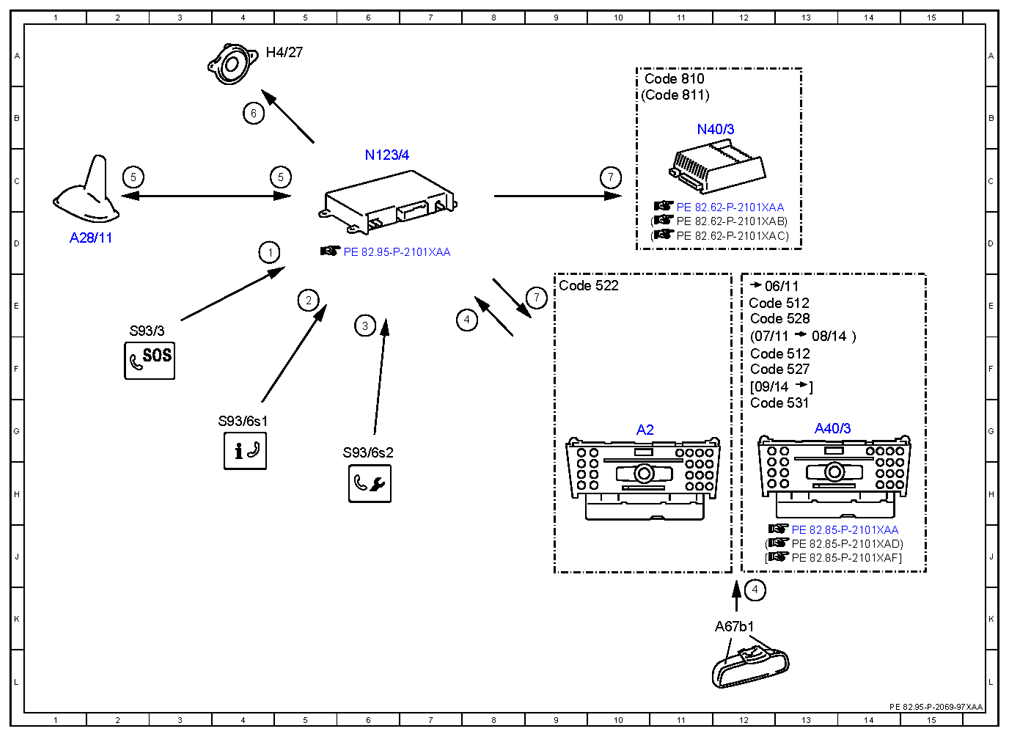

| 1 |
Emergency call, signal |
4D |
| 2 |
Breakdown assistance, signal |
5E |
| 3 |
MB-Info, signal |
6E |
| 4 |
Voice input, signal |
8E |
| 4 |
Voice input, signal |
12K |
| 5 |
Telephone, signal |
5C |
| 5 |
Telephone, signal |
2C |
| 6 |
Voice output, signal |
4B |
| 7 |
Mute, signal |
9E |
| 7 |
Mute, signal |
10C |
| A2 |
Radio |
10G |
| A28/11 |
Multifunction antenna |
1D |
| A40/3 |
COMAND control unit |
13G |
| A67b1 |
Hands-free system microphone |
12K |
| Code 512 |
COMAND APS with DVD changer |
12F |
| Code 512 |
COMAND APS with DVD changer |
12E |
| Code 522 |
Audio 20 radio |
9E |
| Code 527 |
COMAND APS (with navigation) |
12F |
| Code 528 |
COMAND with DVD changer |
12E |
| Code 531 |
COMAND APS |
12G |
| Code 810 |
Sound system |
10A |
| Code 811 |
Extended sound system |
10B |
| H4/27 |
Center instrument panel speaker |
4A |
| N123/4 |
Emergency call system control unit |
6C |
| N40/3 |
Sound system amplifier control unit |
11B |
| S93/3 |
Emergency call system button |
2E |
| S93/6s1 |
MB-Info button |
4G |
| S93/6s2 |
Breakdown assistance button |
6G |
