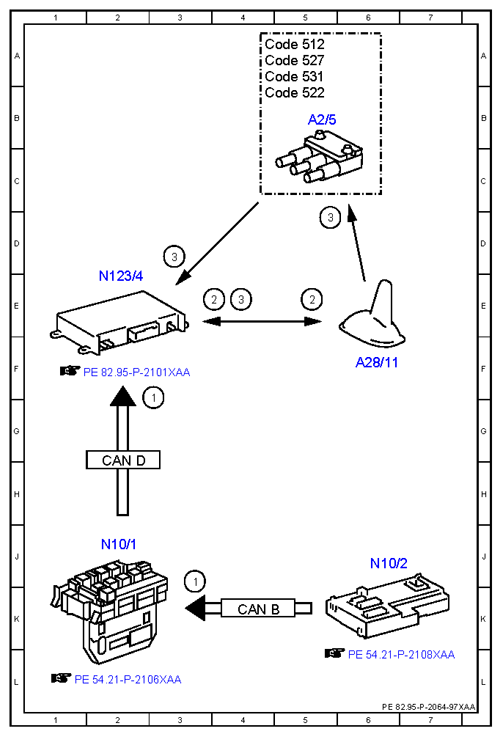

| 1 |
ATA [EDW] alarm, signal |
3G |
| 1 |
ATA [EDW] alarm, signal |
3J |
| 2 |
Telephone, signal |
5E |
| 2 |
Telephone, signal |
4E |
| 3 |
GPS, signal |
3D |
| 3 |
GPS, signal |
5D |
| 3 |
GPS, signal |
4E |
| A2/5 |
Global positioning system antenna splitter |
5B |
| A28/11 |
Multifunction antenna |
6F |
| CAN B |
Interior CAN |
4K |
| CAN D |
Diagnostic CAN |
2H |
| Code 512 |
COMAND APS with DVD changer |
4A |
| Code 522 |
Audio 20 radio |
4B |
| Code 527 |
COMAND APS (with navigation) |
4A |
| Code 531 |
COMAND APS |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
2J |
| N10/2 |
Rear SAM control unit with fuse and relay module |
6J |
| N123/4 |
Emergency call system control unit |
2E |
