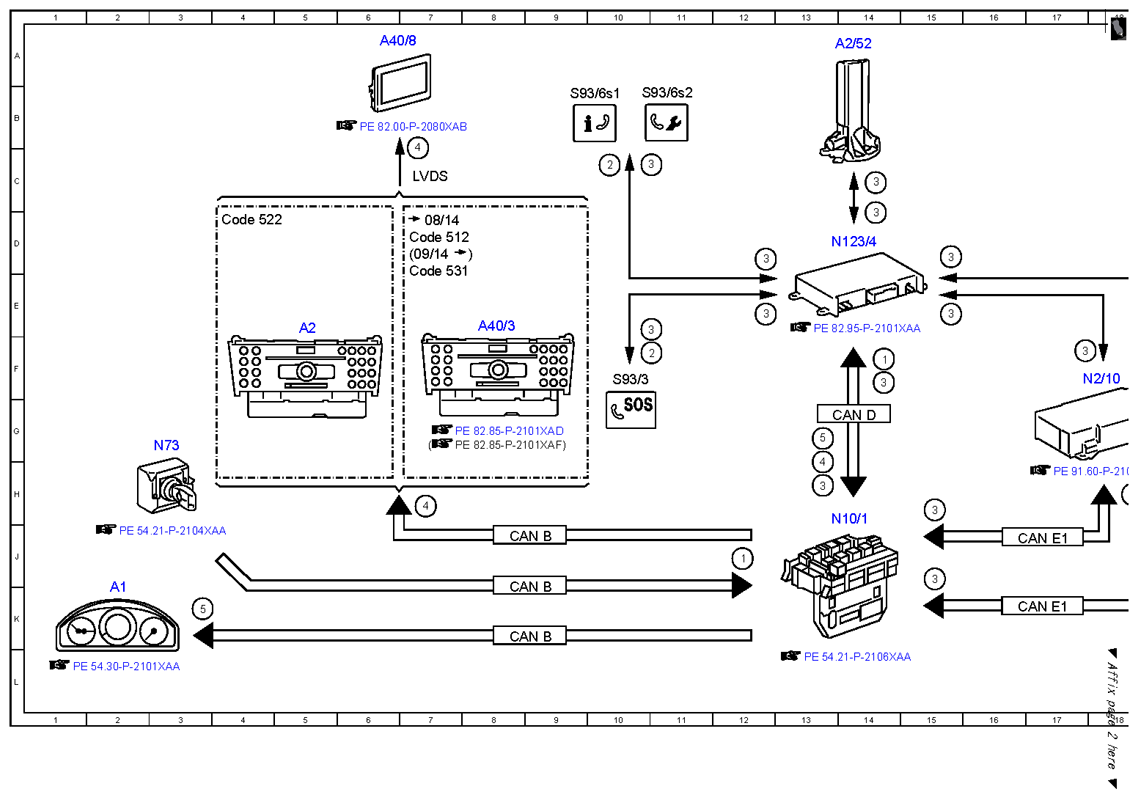

| 1 |
Circuit 15R, status |
12J |
| 1 |
Circuit 15R, status |
14F |
| 2 |
Status indication, signal |
10F |
| 2 |
Status indication, signal |
10C |
| 3 |
Check signal, signal |
15J |
| 3 |
Check signal, signal |
18H |
| 3 |
Check signal, signal |
14F |
| 3 |
Check signal, signal |
10E |
| 3 |
Check signal, signal |
10C |
| 3 |
Check signal, signal |
14C |
| 3 |
Check signal, signal |
17F |
| 3 |
Check signal, signal |
20D |
| 3 |
Check signal, signal |
22C |
| 3 |
Check signal, signal |
12D |
| 3 |
Check signal, signal |
12E |
| 3 |
Check signal, signal |
14D |
| 3 |
Check signal, signal |
13H |
| 3 |
Check signal, signal |
15D |
| 3 |
Check signal, signal |
15E |
| 3 |
Check signal, signal |
22C |
| 3 |
Check signal, signal |
19J |
| 4 |
Audio/COMAND display, message |
7H |
| 4 |
Audio/COMAND display, message |
13H |
| 4 |
Audio/COMAND display, message |
7C |
| 5 |
Instrument cluster, message |
3K |
| 5 |
Instrument cluster, message |
13G |
| A1 |
Instrument cluster |
2K |
| A2 |
Radio |
5E |
| A2/5 |

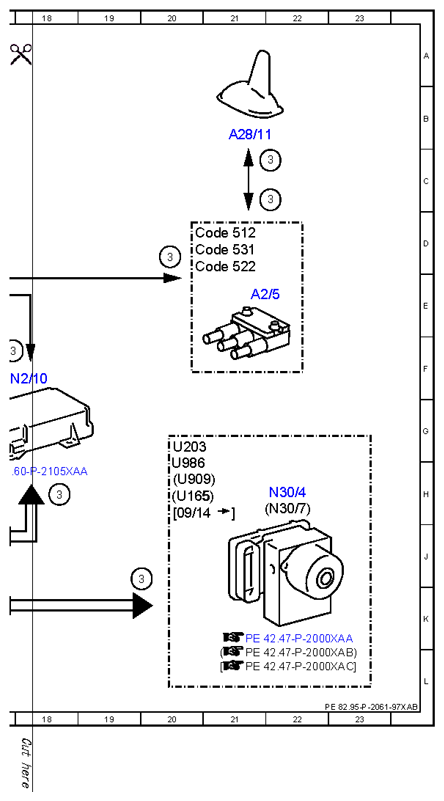

Global positioning system antenna splitter |
21E |
| A2/52 |
Emergency call system antenna |
14A |
| A28/11 |
Multifunction antenna |
21B |
| A40/3 |
COMAND control unit |
8E |
| A40/8 |
Audio/COMAND display |
6A |
| CAN B |
Interior CAN |
8K |
| CAN B |
Interior CAN |
8K |
| CAN B |
Interior CAN |
8J |
| CAN D |
Diagnostic CAN |
14G |
| CAN E1 |
Chassis CAN 1 |
17K |
| CAN E1 |
Chassis CAN 1 |
17J |
| Code 512 |
COMAND APS with DVD changer |
20D |
| Code 512 |
COMAND APS with DVD changer |
7D |
| Code 522 |
Audio 20 radio |
4D |
| Code 522 |
Audio 20 radio |
20D |
| Code 531 |
COMAND APS |
20D |
| Code 531 |
COMAND APS |
7E |
| LVDS |
Low voltage differential signal |
7C |
| N10/1 |
Front SAM control unit with fuse and relay module |
14H |
| N123/4 |
Emergency call system control unit |
14D |
| N2/10 |
Supplemental restraint system control unit |
17F |
| N30/4 |
Electronic Stability Program control unit |
22H |
| N30/7 |
Premium Electronic Stability Program control unit |
22H |
| N73 |
Electronic ignition switch control unit |
3G |
| S93/3 |
Emergency call system button |
10F |
| S93/6s1 |
MB-Info button |
9B |
| S93/6s2 |
Breakdown assistance button |
11B |
| U165 |
Valid for AMG |
20H |
| U203 |
Valid without DISTRONIC PLUS |
20G |
| U909 |
Valid for DISTRONIC PLUS |
20H |
| U986 |
Not valid for AMG |
20H |
