| 1 |
Multifunction steering wheel button group, signal |
2J |
| 1 |
Multifunction steering wheel button group, signal |
6K |
| 1 |
Multifunction steering wheel button group, signal |
8H |
| 1 |
Multifunction steering wheel button group, signal |
2F |
| 2 |
Wake-up, signal |
21K |
| 2 |
Wake-up, signal |
18F |
| 3 |
Transfer of video data (Y/C line) signal |
10H |
| 4 |
Audio/COMAND controller, request |
8D |
| 5 |
Audio/COMAND display, signal |
11C |
| 6 |
Audio, signal |
12H |
| 6 |
Audio, signal |
22K |
| 7 |
Sound system amplifier, actuation |
19F |
| 8 |
Voice input, signal |
14D |
| 9 |
Operation, signal |
22L |
| 9 |
Operation, signal |
21H |
| A1 |
Instrument cluster |
7J |
| A2 |
Radio |
7E |
| A2/56 |
Radio with auto pilot system |
10E |

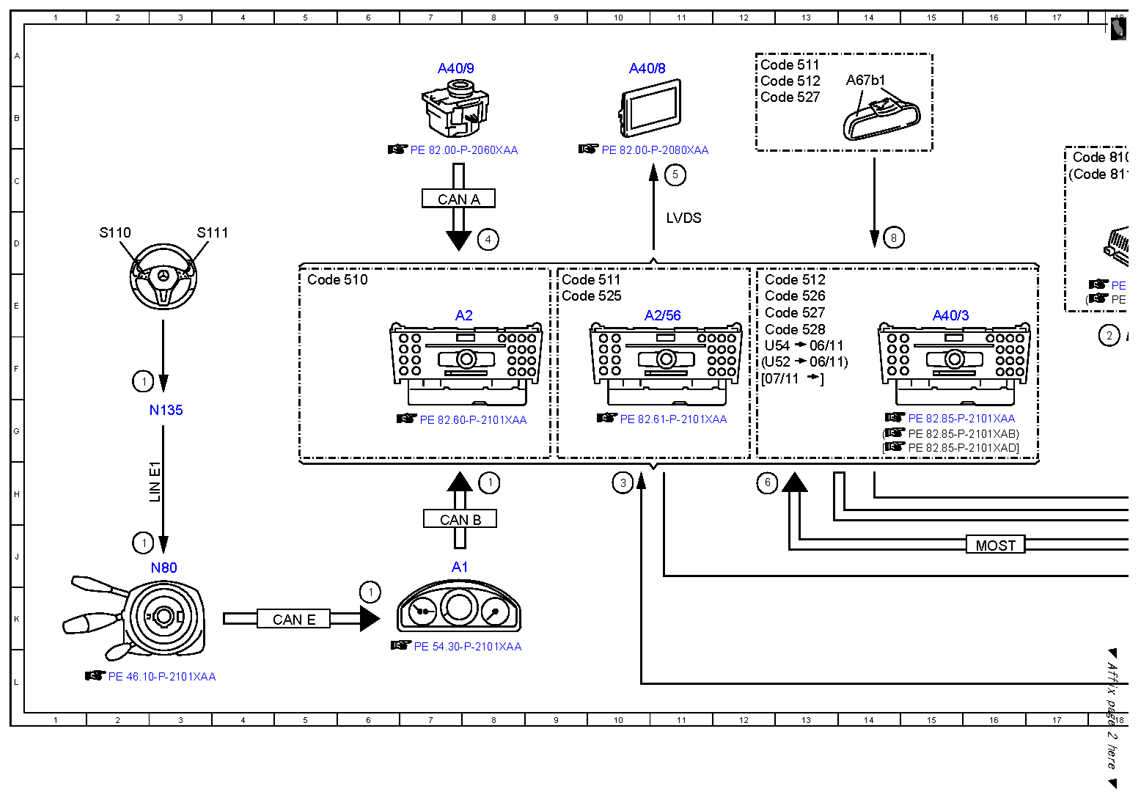

| A40/3 |
COMAND control unit |
15E |
| A40/8 |
Audio/COMAND display |
10A |
| A40/9 |
Audio/COMAND control panel |
7A |
| A67b1 |
Hands-free system microphone |
14A |
| CAN A |
Telematics CAN |
7C |
| CAN B |
Interior CAN |
7J |
| CAN E |
Chassis CAN |
5K |
| Code 510 |
Audio 20 with CD changer |
5E |
| Code 511 |
Audio 50 APS incl. DVD changer |
12A |
| Code 511 |
Audio 50 APS incl. DVD changer |
9E |
| Code 512 |
COMAND APS with DVD changer |
12A |
| Code 512 |
COMAND APS with DVD changer |
12E |
| Code 525 |
Audio 50 APS radio (CD) |
9E |
| Code 526 |
COMAND with single DVD drive (without navigation) |
12E |
| Code 527 |
COMAND APS (with navigation) |
12B |
| Code 527 |
COMAND APS (with navigation) |
12E |
| Code 528 |
COMAND with DVD changer |
12E |
| Code 810 |
Sound system |
17C |
| Code 811 |
Extended sound system |
17C |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
11D |
| MOST |
Media Oriented System Transport |
16J |
| MOST |
Media Oriented System Transport |
19G |

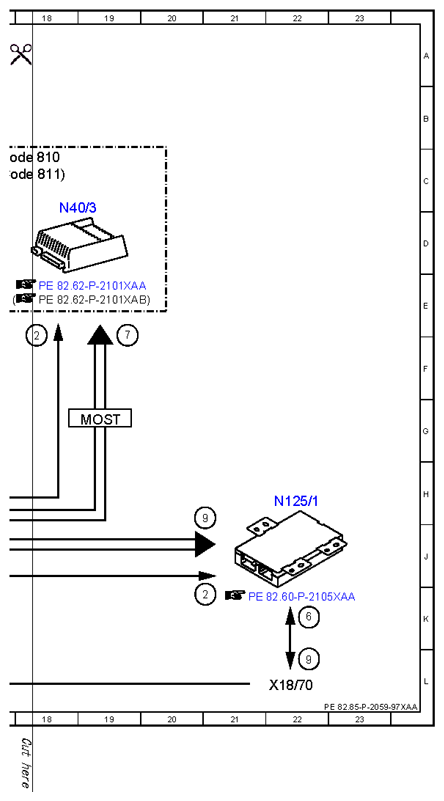

| N125/1 |
Media interface control unit |
22H |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
18D |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
3D |
| U52 |
Valid for Japan |
12F |
| U54 |
Valid for all except Japan |
12F |
| X18/70 |
Media interface electrical connector |
22L |
