| 1 |
TV antennas, signal |
22E |
| 1 |
TV antennas, signal |
21H |
| 1 |
TV antennas, signal |
23H |
| 1 |
TV antennas, signal |
25J |
| 1 |
TV antennas, signal |
18K |
| 1 |
TV antennas, signal |
24B |
| 1 |
TV antennas, signal |
23E |
| 1 |
TV antennas, signal |
27F |
| 1 |
TV antennas, signal |
27D |
| 2 |
TV, signal |
17G |
| 3 |
Audio applications, signal |
17G |
| 4 |
Video, signal |
15D |
| 5 |
Sound system amplifier, actuation |
20D |
| 6 |
Multifunction steering wheel button group, signal |
3E |
| 6 |
Multifunction steering wheel button group, signal |
3C |
| 6 |
Multifunction steering wheel button group, signal |
13F |
| 6 |
Multifunction steering wheel button group, signal |
9E |
| 6 |
Multifunction steering wheel button group, signal |
6E |
| 7 |
Audio/COMAND controller, request |
13H |
| A1 |
Instrument cluster |
10D |
| A2/118 |
Windshield antenna |
16K |
| A2/118 |
Windshield antenna |
28D |
| A2/19 |
FM 2 and DAB antenna amplifier |
25F |
| A2/32 |
Rear window antenna |
30B |
| A2/89 |
TV antenna splitter |
25K |
| A40/3 |
COMAND control unit |
15F |
| A40/8 |
Audio/COMAND display |
15B |
| A40/9 |
Audio/COMAND control panel |
10H |
| A90/4 |

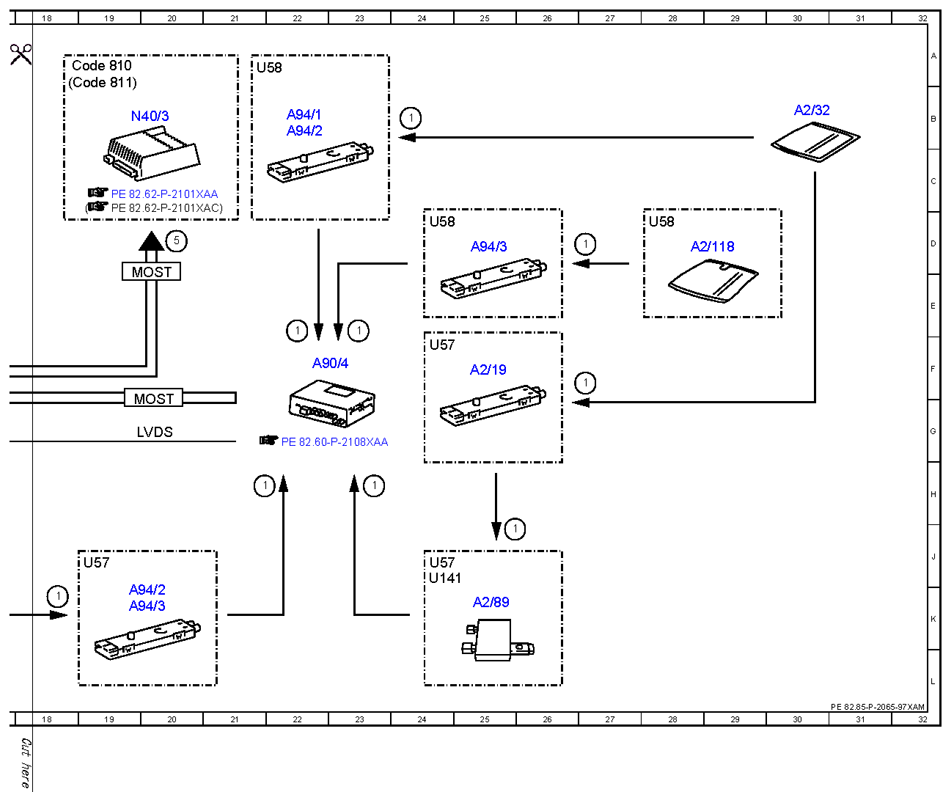

Tuner unit |
22F |
| A94/1 |
TV 1 antenna amplifier |
22B |
| A94/2 |
TV 2 antenna amplifier |
22B |
| A94/2 |
TV 2 antenna amplifier |
19K |
| A94/3 |
TV 3 antenna amplifier |
19K |
| A94/3 |
TV 3 antenna amplifier |
25D |
| CAN A |
Telematics CAN |
12H |
| CAN B |
Interior CAN |
12G |
| CAN E1 |
Chassis CAN 1 |
5G |
| CAN E2 |
Chassis CAN 2 |
8G |
| Code 810 |
Sound system |
18A |
| Code 811 |
Extended sound system |
18B |
| LIN E1 |
Steering LIN |
3E |
| LVDS |
Low voltage differential signal |
15E |
| LVDS |
Low voltage differential signal |
20G |
| MOST |
Media Oriented System Transport |
20G |
| MOST |
Media Oriented System Transport |
20E |
| N10/1 |
Front SAM control unit with fuse and relay module |
7C |
| N135 |
Steering wheel electronics |
3D |
| N40/3 |
Sound system amplifier control unit |
20B |
| N80 |
Steering column module control unit |
3F |
| S110 |

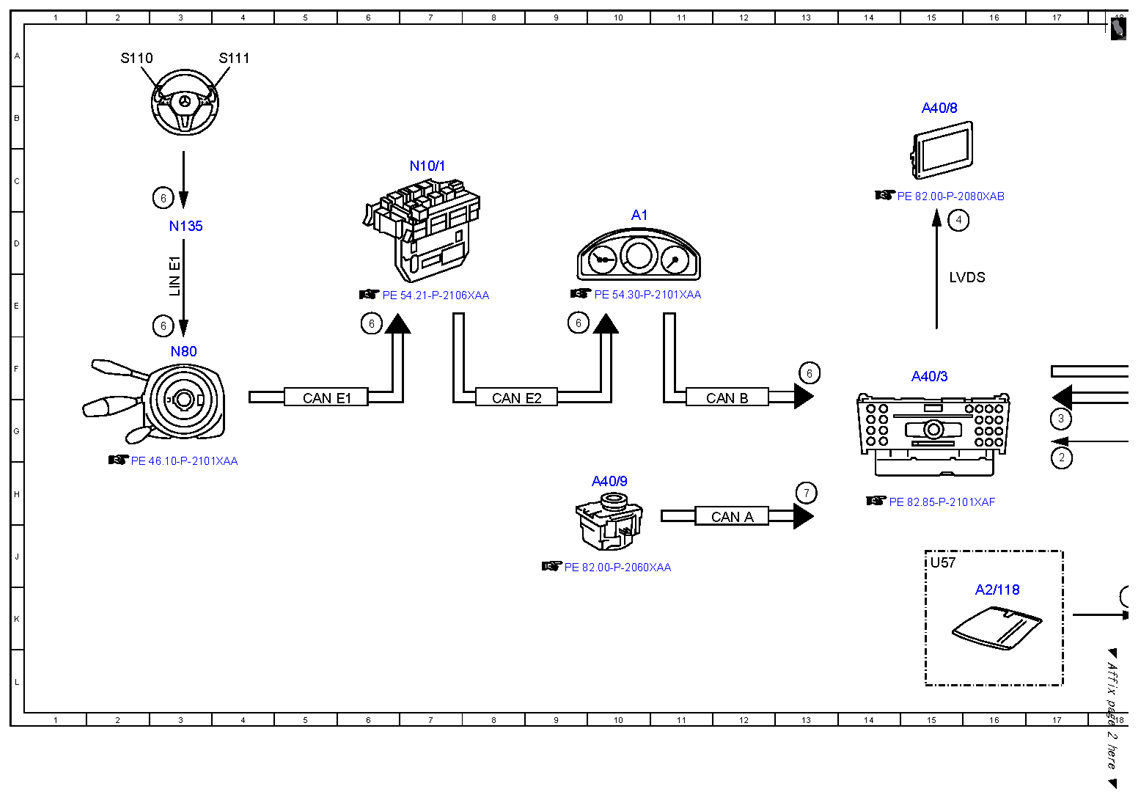

Left multifunction steering wheel button group |
2A |
| S111 |
Right multifunction steering wheel button group |
4A |
| U141 |
Valid for Digital Audio Broadcasting |
24J |
| U57 |
Valid for model 218.9 |
19J |
| U57 |
Valid for model 218.9 |
24J |
| U57 |
Valid for model 218.9 |
24F |
| U57 |
Valid for model 218.9 |
15J |
| U58 |
Valid for model 218.3 |
21A |
| U58 |
Valid for model 218.3 |
24D |
| U58 |
Valid for model 218.3 |
28D |
