Remove/install battery sensor - AR54.10-P-0002EW
MODEL 207, 212, 218

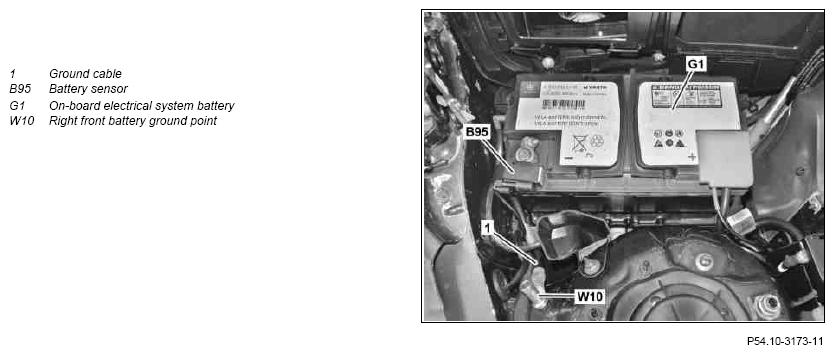

Shown on model 212 with battery in engine compartment

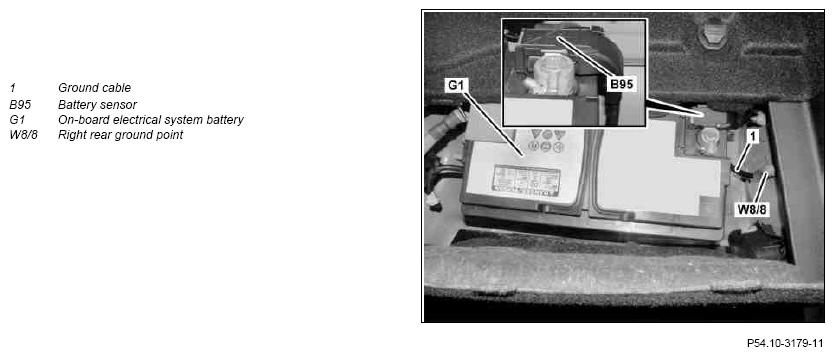

Shown on model 212.072 up to model year 2011 with battery in luggage compartment

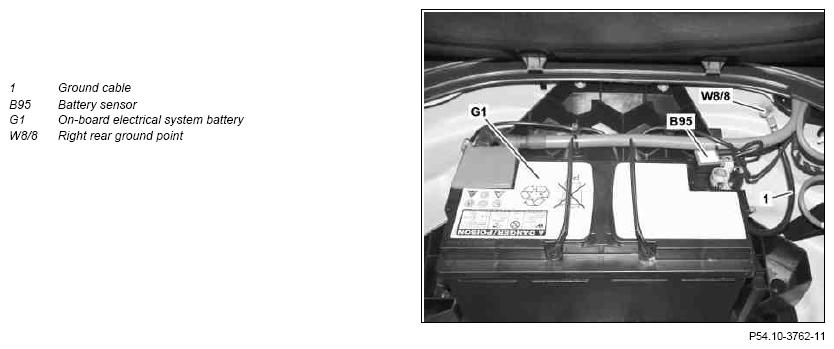

Shown on model 212 with CODE ME04 (Mild hybrid drive) with battery in luggage compartment
| Remove/install | |||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Disconnect ground line (1) from the on-board electrical system battery (G1) | AR54.10-P-0003EW | |
| 2 | Detach electrical connector from battery sensor (B95) | ||
| 3.1 | Detach ground line (1) on ground point on right front of battery (W10) | MODEL 207, 218 MODEL 212 (except 212.072) without CODE ME04 (Mild hybrid drive) MODEL 212.072 as of model year 2011 |
|
MODEL 212.072 as of model year 2011 |
*BA54.10-P-1002-01F | ||
| 3.2 | Detach ground line (1) to right rear ground point (W8/8) | MODEL 212 (except 212.072) with CODE ME04 (Mild hybrid drive) MODEL 212.072 up to model year 2011 |
|
MODEL 212.072 up to model year 2011 |
*BA54.10-P-1002-01F | ||
| 4 | Install in the reverse order |
BATTERY
| Number | Designation | MODEL 207 | MODEL 212 | |
|---|---|---|---|---|
| BA54.10-P-1002-01F | Nut, battery ground line to body | Nm | 16 | 16 |
BATTERY
| Number | Designation | MODEL 218 | |
|---|---|---|---|
| BA54.10-P-1002-01F | Nut, battery ground line to body | Nm | 16 |
