Remove/install Night View Assist control unit - AR54.30-P-3100EW

MODEL 212, 218 with CODE (610) Night vision assist

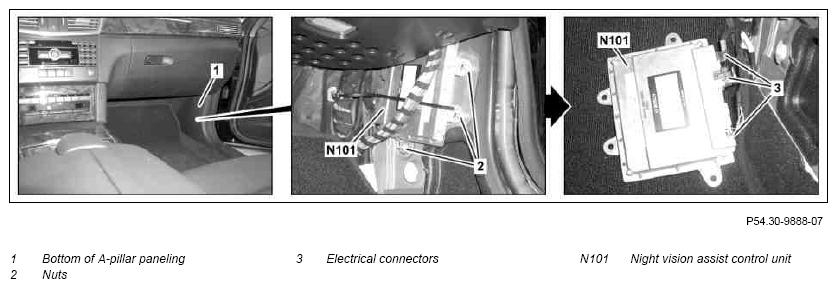

Fig 1: Identifying Night View Assist Control Unit Remove/Install Components - Shown On Model 212

Courtesy of MERCEDES-BENZ USA

Shown on model 212

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO stop/start button from the EZS control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
2	Remove right-hand door sill molding	Model 212 Model 218	AR68.30-P-4100EW
3	Loosen edge guard in the lower area of the lower A-pillar panel (1)
4	Remove A-pillar paneling at bottom (1)
5	Unscrew nuts (2) and remove Night View Assist control unit (N101)	For vehicles with diesel engines avoid contacting the Night View Assist control unit (N101) with stud carrying circuit 30 on the bottom A-pillar, as otherwise a short circuit may occur! Cover up or tape up the stud when removing the Night View Assist control unit (N101).
6	Disconnect electrical connectors (3)
7	Install in the reverse order
8	Connect Star Diagnosis, read out fault memory and calibrate Night View Assist camera	When replacing Night View Assist control unit (N101). Calibration target for Night Vision Assist	AD00.00-P-2000-04A
