Upper control panel control unit, component description - GF54.21-P-6040FQ

MODEL 218

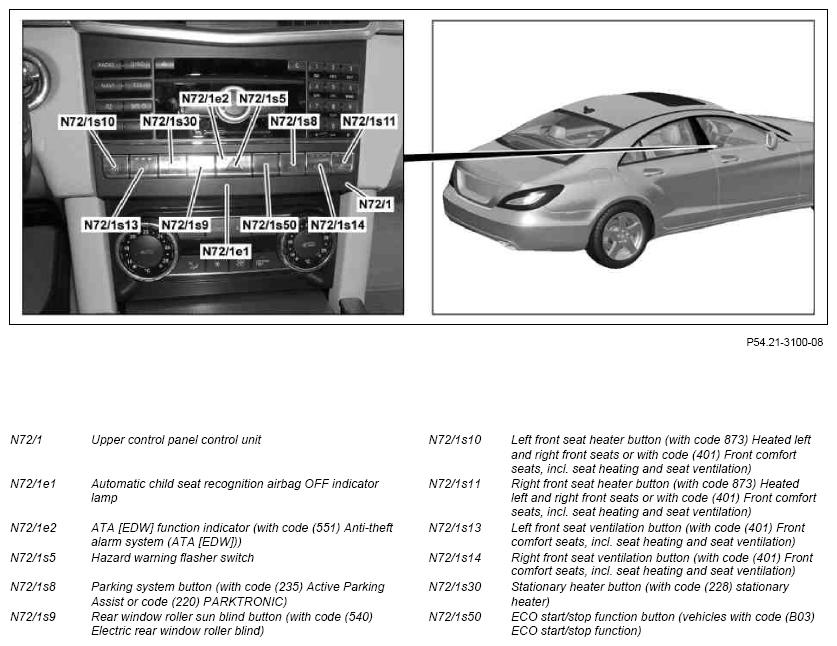

Fig 1: Identifying Upper Control Panel Control Unit Components

Courtesy of MERCEDES-BENZ USA

Location

The upper control panel control unit is located on the center console.

Task

The upper control panel control unit performs the following tasks:

Reading in of signals
Transmitting signals

Reading in of signals

Signals are read in via the following connection:

Instrument panel LIN (LIN 1)

Instrument panel LIN

The upper control panel control unit reads in function feedback requests over the instrument panel LIN. These are sent from the front SAM control unit with fuse and relay module (N10/1).

The activity of the following functions is displayed by the corresponding light-emitting diodes in the buttons on the upper control panel control unit's controls:

Parking system (with code (235) Active Parking Assist or code (220) PARKTRONIC)
Rear window roller sun blind (with code (540) Electric roller blind for rear-end window)
Front seat heater (with code (873) Heated left and right front seats or with code (401) Front comfort seats, incl. seat heating and seat ventilation)
Front seat ventilation (with code (401) Front comfort seats, incl. seat heating and seat ventilation)
Stationary heater (with code (228) Stationary heater)
Antitheft alarm system (ATA [EDW]) (with code (551) Antitheft alarm system (ATA [EDW]))
ECO start-stop function (for code (B03) ECO start-stop function)

Transmitting signals

Signals are sent through the following connection:

Instrument panel LIN

Instrument panel LIN

The upper control panel control unit sends the function requests for the following buttons over the instrument panel LIN to the front SAM control unit:

Hazard warning flasher switch
Parking system (with code (235) Active Parking Assist or code (220) PARKTRONIC)
Rear window roller sun blind button (with code (540) Electric rear window roller blind)
Left front seat heater button (with code 873) Heated left and right front seats or with code (401) Front comfort seats, incl. seat heating and seat ventilation)
Right front seat heater button (with code 873) Heated left and right front seats or with code (401) Front comfort seats, incl. seat heating and seat ventilation)
Left front seat ventilation button (with code (401) Front comfort seats, incl. seat heating and seat ventilation)
Right front seat ventilation button (with code (401) Front comfort seats, incl. seat heating and seat ventilation)
Stationary heater button (with code (228) stationary heater)
ECO start/stop function button (vehicles with code (B03) ECO start/stop function)

Wiring diagram for upper control panel control unit

PE54.21-P-2119-97XAA
