Component description for chassis gateway control unit - GF54.21-P-1010CAM
MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus)
Location

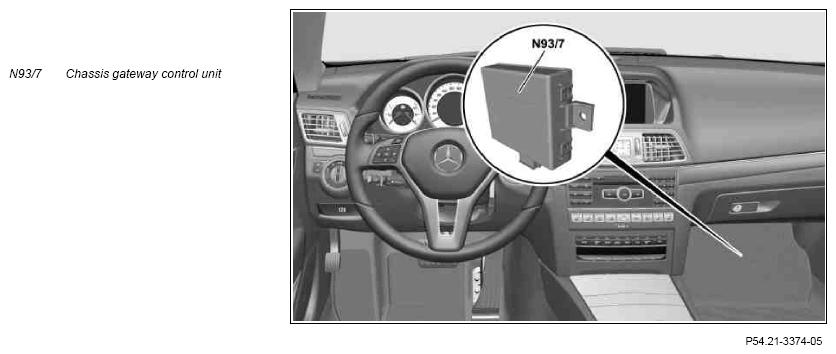

The chassis gateway control unit is secured under the floor covering on the equipment support at the front in the front passenger footwell.
Task
The chassis gateway control unit is the central interface (Gateway) between the following bus systems:
- Chassis CAN 1 (CAN E1) and chassis FlexRay (Flex E)
- Chassis CAN 2 (CAN E2) and chassis FlexRay
The corresponding signal flows are described in the respective function descriptions and in the associated block diagrams or function schematics.
In addition, the chassis gateway control unit monitors the transmit readiness ("timeout error") of the control units named below using certain input signals:
Control units connected to chassis CAN 1:
- CDI control unit (N3/9) (with diesel engine)
- ME-SFI control unit (N3/10) (with gasoline engine)
- Electronic Stability Program control unit (N30/4)
- Electronic ignition lock control unit (N73)
- Fully integrated transmission control unit (Y3/8n4) (with transmission 722.9, 725)
Control units connected to chassis CAN 2:
- Instrument cluster (A1)
- Electrical power steering control unit (N68)
Control units connected to chassis FlexRay:
- Stereo multifunction camera (A40/13)
- Front long-range radar sensor (B29)
- Radar sensors control unit (N62/1)
Reasons for a detected "timeout error" can be, for example, interruption of the power supply, an internal reset, fault in CAN communication or a hardware fault.
| Wiring diagram for chassis gateway control unit | PE54.21-P-2143-97EAA |
