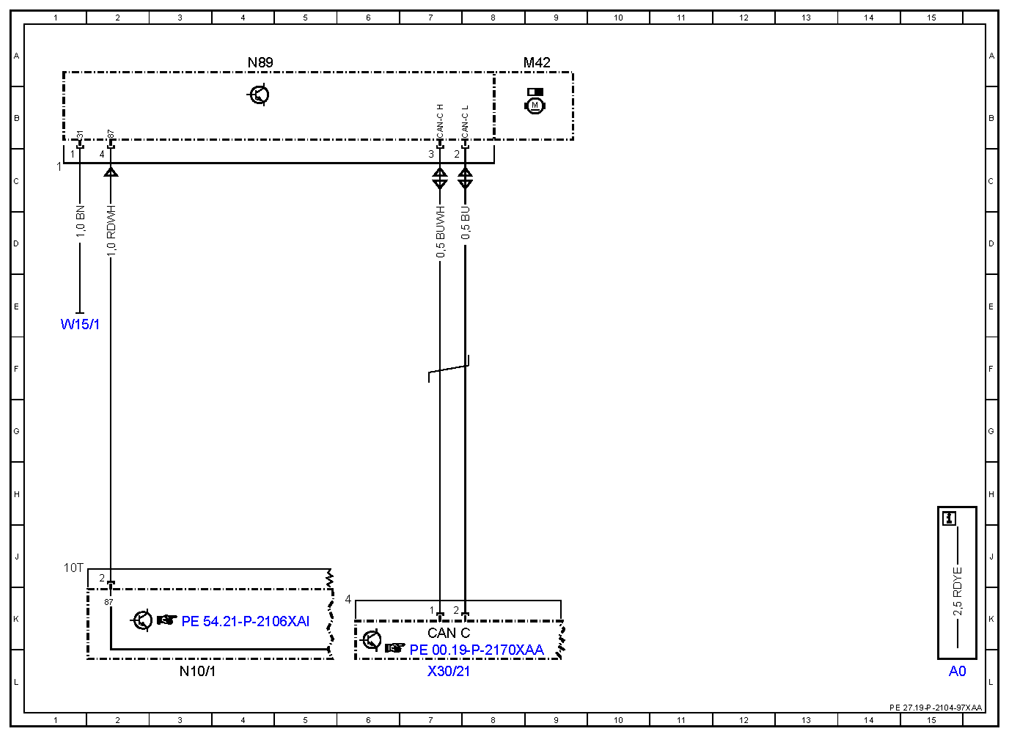

Wiring diagram for transmission oil auxiliary pump control unit - PE27.19-P-2104-97XAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| M42 | Electric transmission oil pump | 9A |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N89 | Transmission oil auxiliary pump control unit | 4A |
| W15/1 | Right footwell ground point | 1E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 7L |
