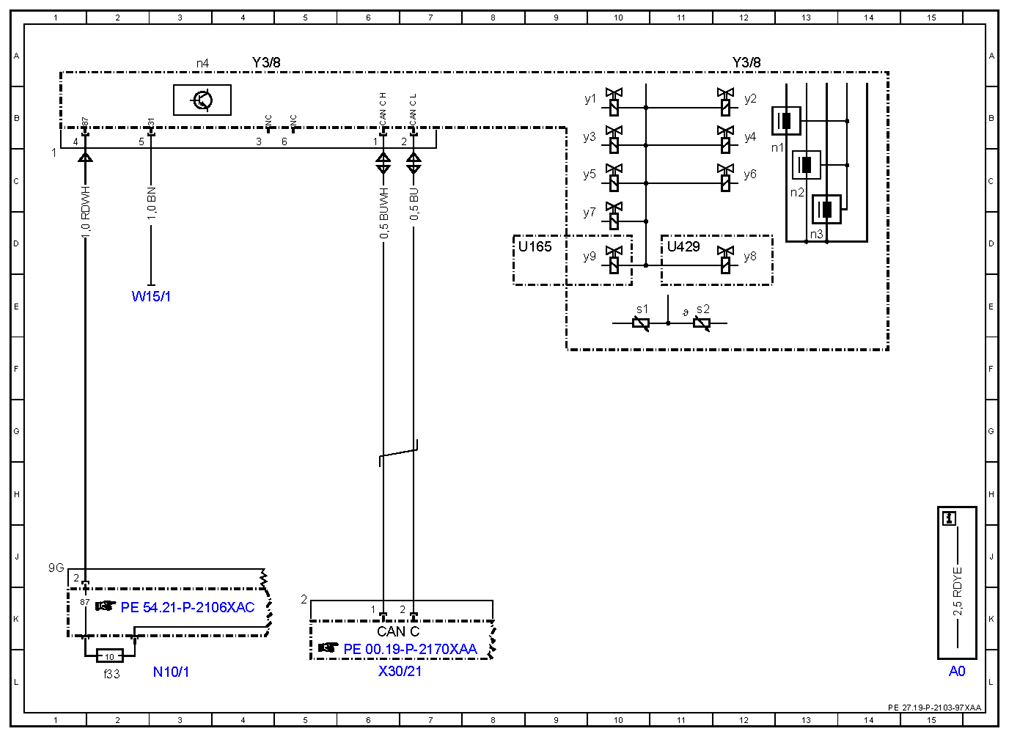

| A0 |
Color code key |
15L |
| CAN C |
Drive train CAN |
6K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f33 |
Fuse 33 |
2L |
| U165 |
Valid for AMG |
8D |
| U429 |
Valid for all except AMG |
11D |
| W15/1 |
Right footwell ground point |
2E |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
6L |
| Y3/8 |
Fully integrated transmission control unit |
4A |
| Y3/8 |
Fully integrated transmission control unit |
12A |
| Y3/8n1 |
Turbine wheel rpm sensor |
12C |
| Y3/8n2 |
Internal transmission speed rpm sensor |
13C |
| Y3/8n3 |
Output shaft rpm sensor |
13D |
| Y3/8n4 |
Fully integrated transmission control unit |
3A |
| Y3/8s1 |
Selection range sensor |
10E |
| Y3/8s2 |
Transmission oil temperature sensor |
11E |
| Y3/8y1 |
Working pressure control solenoid valve |
9B |
| Y3/8y2 |
Clutch control solenoid valve K1 |
12B |
| Y3/8y3 |
Clutch control solenoid valve K2 |
9B |
| Y3/8y4 |
Clutch control solenoid valve K3 |
12B |
| Y3/8y5 |
Multidisk brake control solenoid valve B1 |
9C |
| Y3/8y6 |
Multidisk brake control solenoid valve B2 |
12C |
| Y3/8y7 |
Multidisk brake control solenoid valve B3 |
9D |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve |
12D |
| Y3/8y9 |
Start-up clutch control solenoid valve |
9D |
