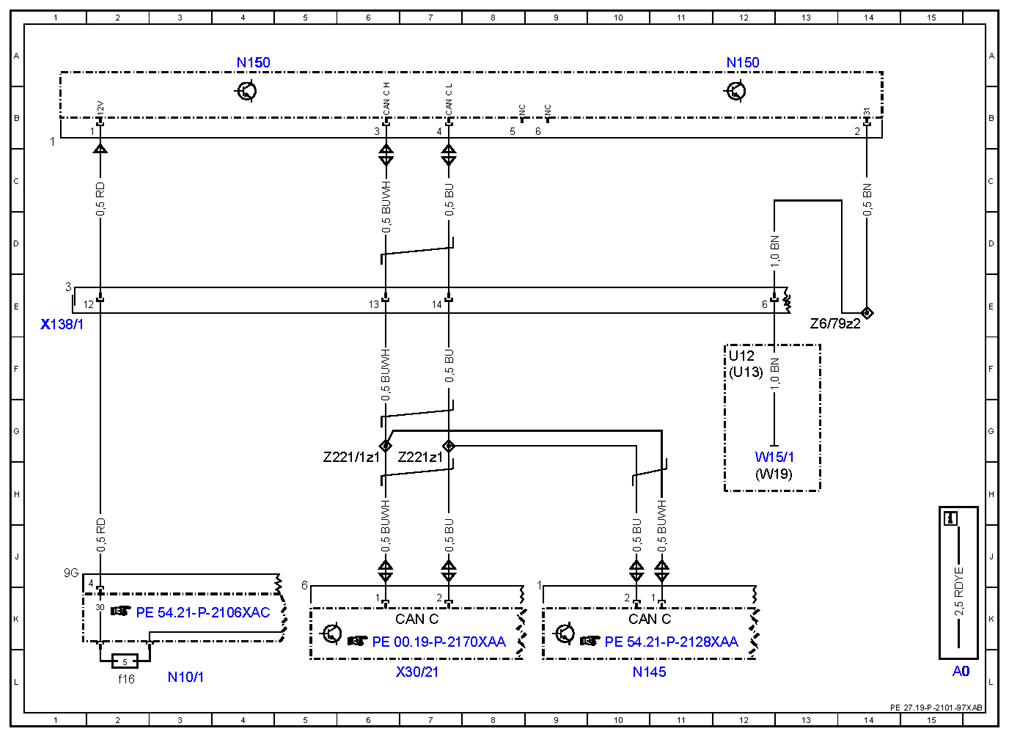

| A0 |
Color code key |
15L |
| CAN C |
Drive train CAN |
7K |
| CAN C |
Drive train CAN |
10K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f16 |
Fuse 16 |
2L |
| N145 |
Transmission mode control unit |
10L |
| N150 |
DIRECT SELECT INTERFACE |
4A |
| N150 |
DIRECT SELECT INTERFACE |
12A |
| U12 |
Valid for left-hand drive vehicles |
12F |
| U13 |
Valid for right-hand drive vehicles |
12F |
| W15/1 |
Right footwell ground point |
12H |
| W19 |
Right front seat crossmember ground point |
12H |
| X138/1 |
Front center console electrical connector |
1E |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
7L |
| Z221/1z1 |
Drive train CAN "high" potential distributor connector sleeve |
6G |
| Z221z1 |
Drive train CAN "low" potential distributor connector sleeve |
7G |
| Z6/79z2 |
Front center console circuit 31 connector sleeve |
13E |
