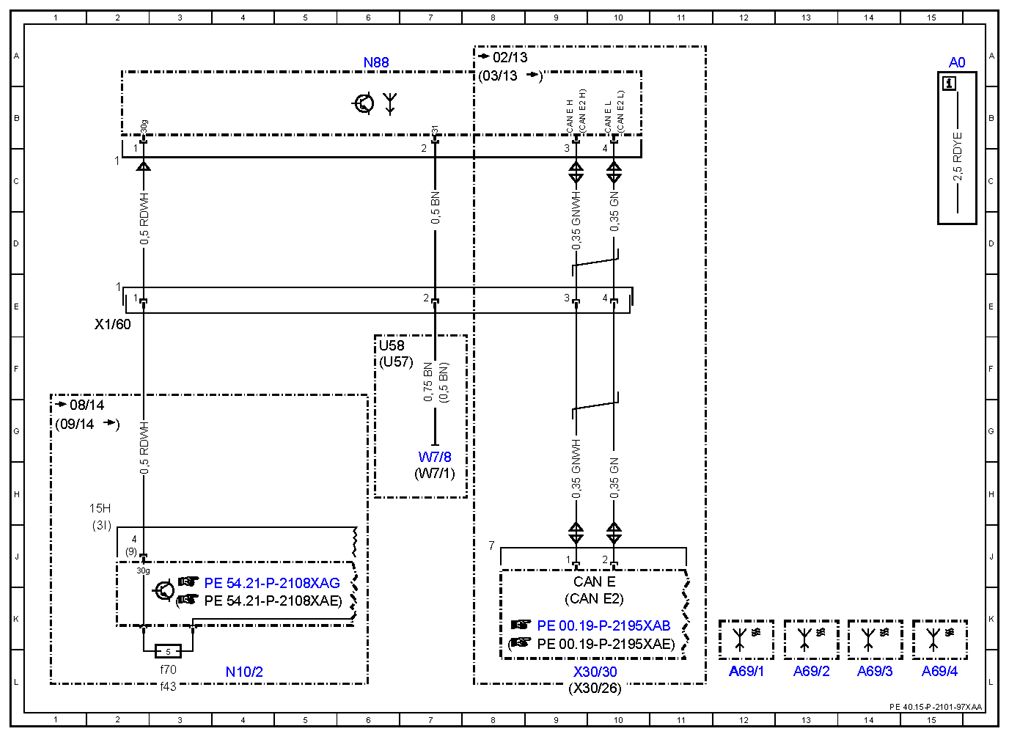

| A0 |
Color code key |
15A |
| A69/1 |
Left front tire pressure sensor |
12L |
| A69/2 |
Right front tire pressure sensor |
13L |
| A69/3 |
Left rear tire pressure sensor |
14L |
| A69/4 |
Right rear tire pressure sensor |
15L |
| CAN E |
Chassis CAN |
9J |
| CAN E2 |
Chassis CAN 2 |
9K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2f43 |
Fuse 43 |
3L |
| N10/2f70 |
Fuse 70 |
3L |
| N88 |
Tire pressure monitor control unit |
6A |
| U57 |
Valid for model 218.9 |
6F |
| U58 |
Valid for model 218.3 |
6F |
| W7/1 |
Right tail lamp trunk ground point |
7H |
| W7/8 |
Right wheelhouse trunk ground point |
7G |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
9L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
9L |
