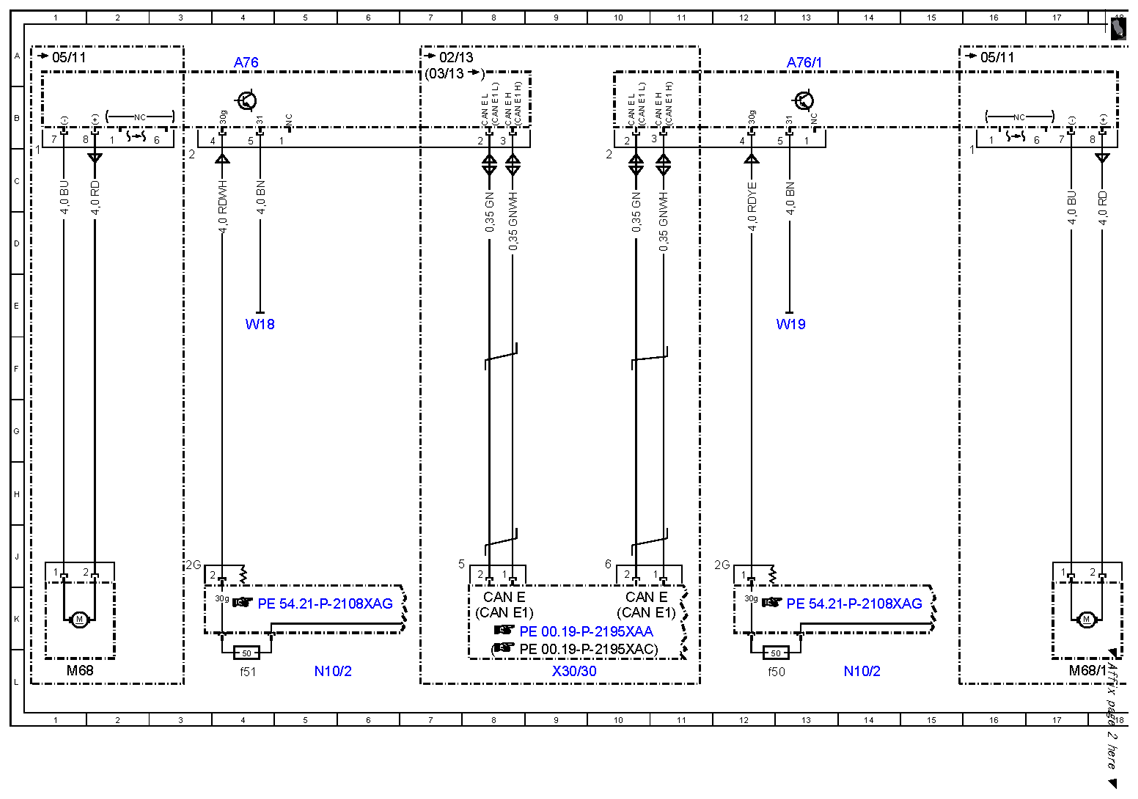

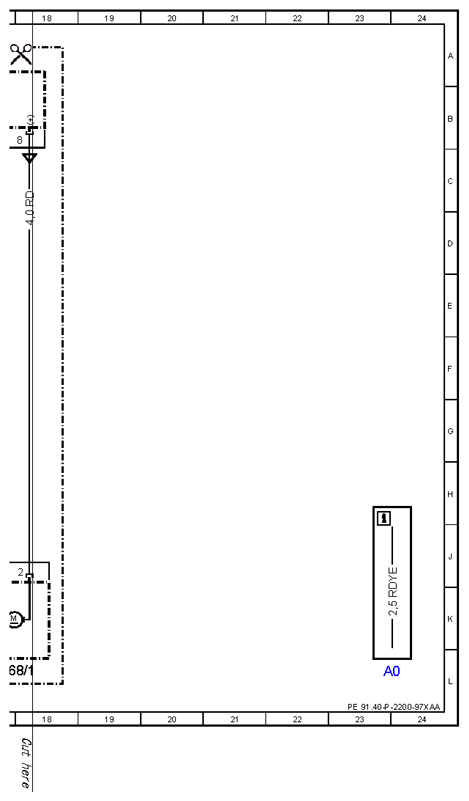

| A0 |
Color code key |
23L |
| A76 |
Left front reversible emergency tensioning retractor |
4A |
| A76/1 |
Right front reversible emergency tensioning retractor |
13A |
| CAN E |
Chassis CAN |
8K |
| CAN E |
Chassis CAN |
10K |
| CAN E1 |
Chassis CAN 1 |
8K |
| CAN E1 |
Chassis CAN 1 |
10K |
| M68 |
Left front reversible emergency tensioning retractor actuator motor |
1L |
| M68/1 |
Right front reversible emergency tensioning retractor actuator motor |
17L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
14L |
| N10/2f50 |
Fuse 50 |
12L |
| N10/2f51 |
Fuse 51 |
4L |
| W18 |
Left front seat crossmember ground point |
4E |
| W19 |
Right front seat crossmember ground point |
13E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
9L |
