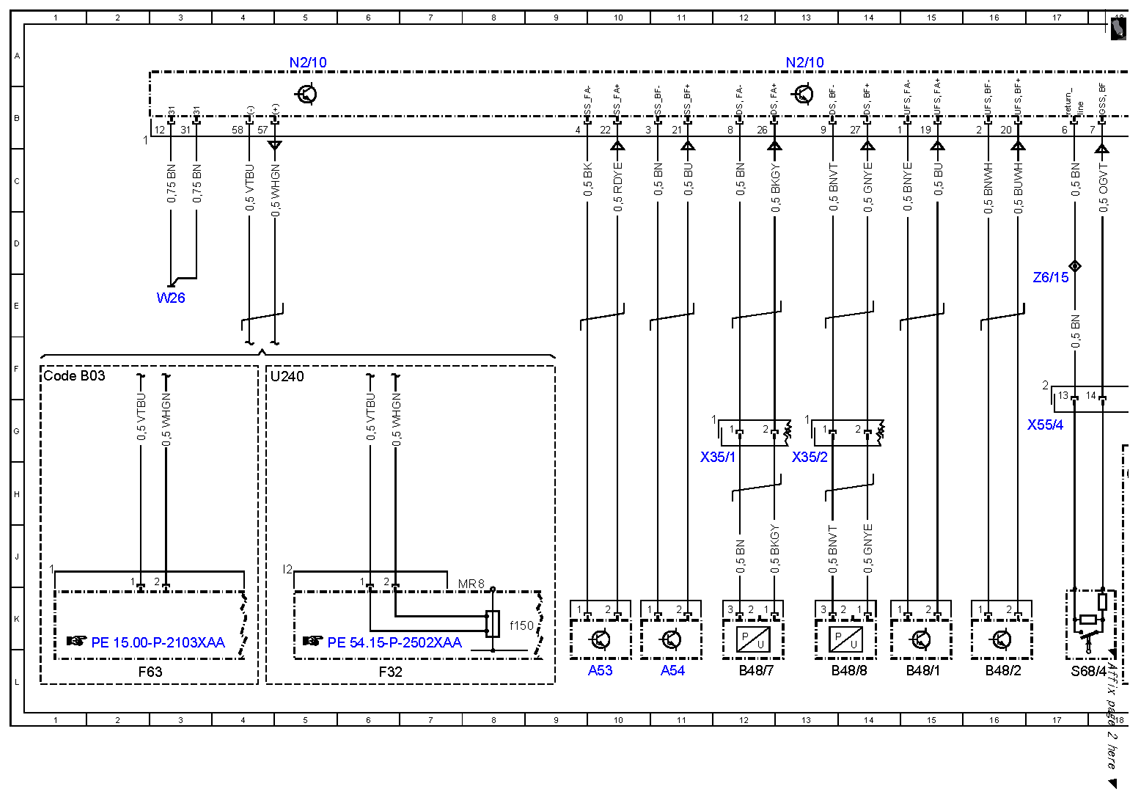

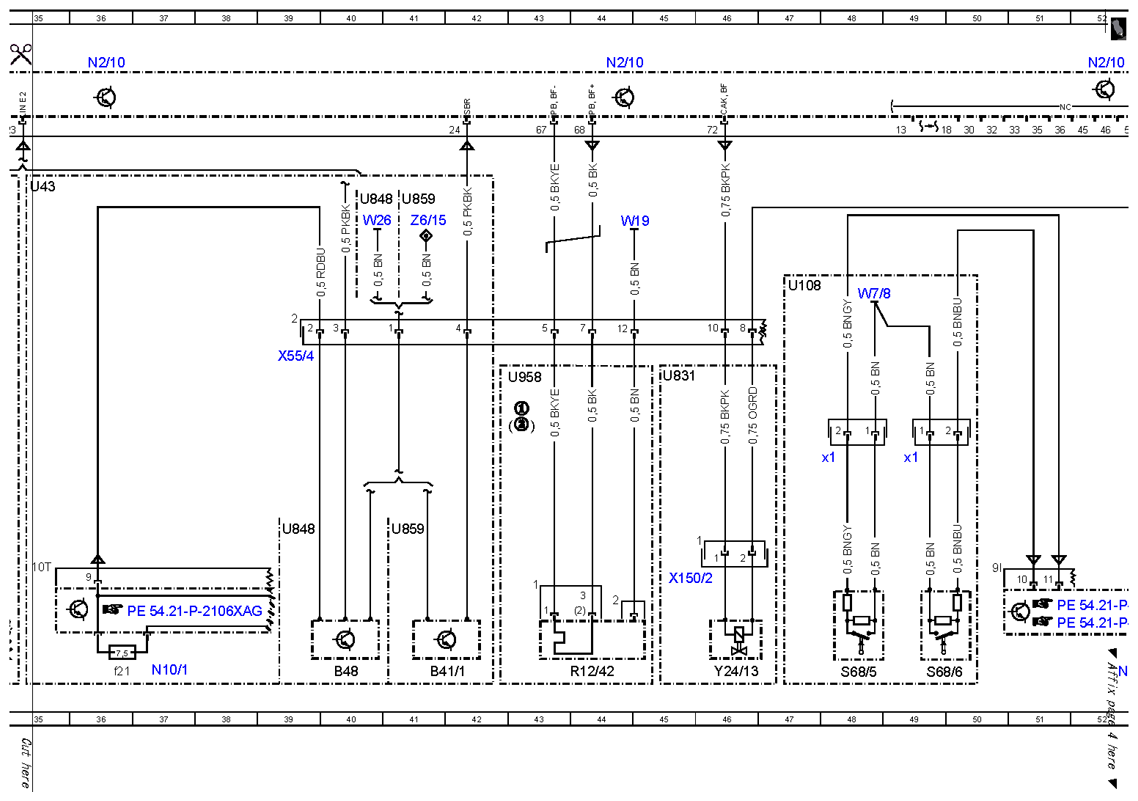

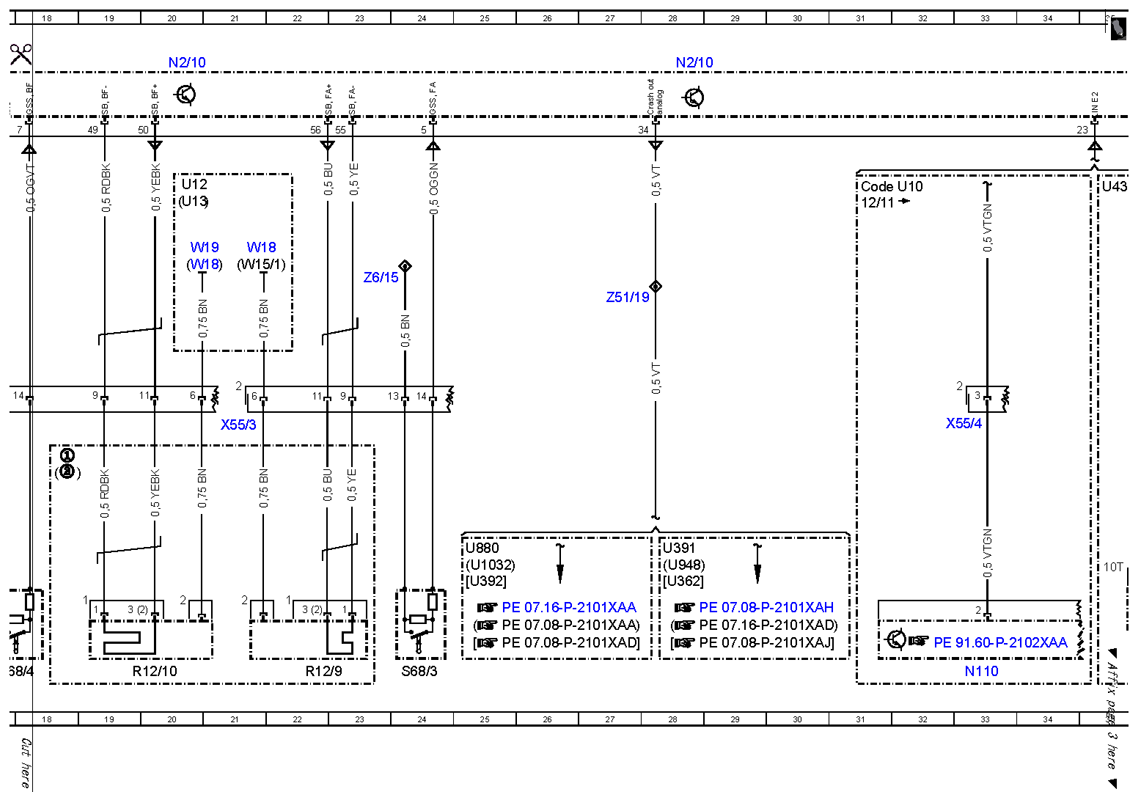

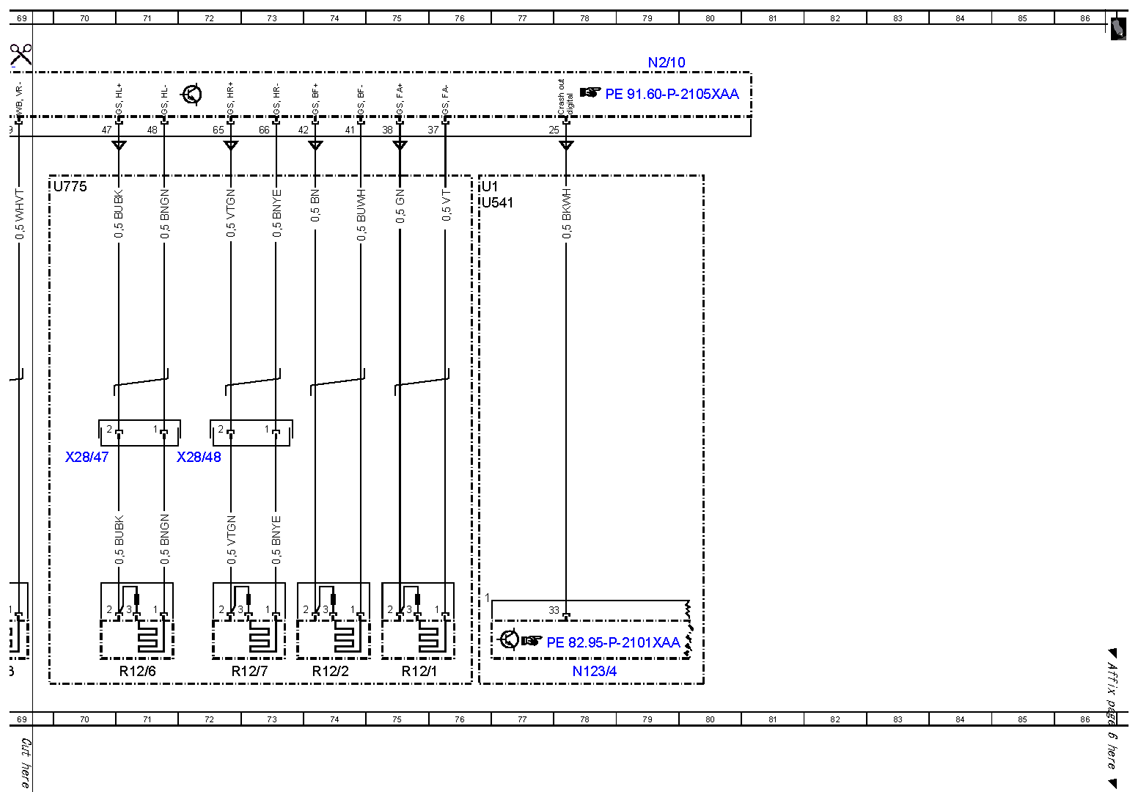

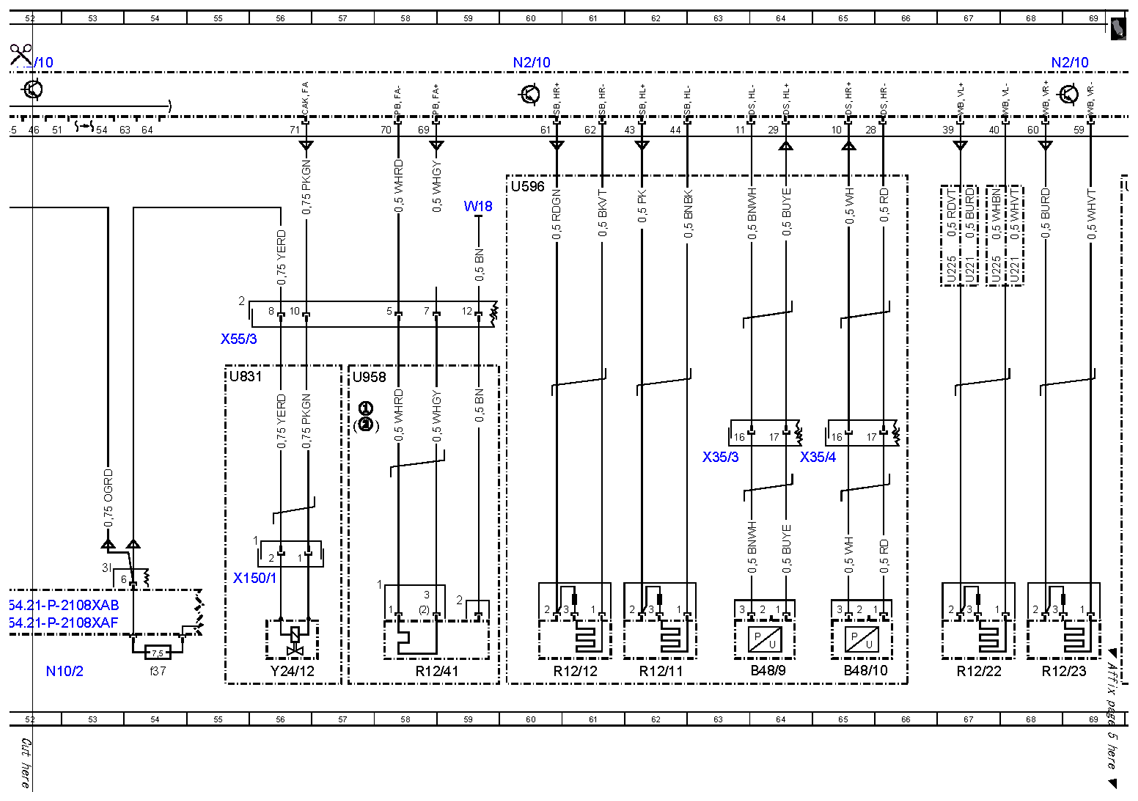

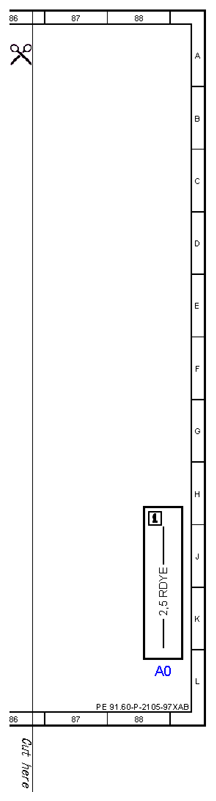

| A0 |
Color code key |
88L |
| A53 |
Left sidebag sensor |
10L |
| A54 |
Right sidebag sensor |
11L |
| B41/1 |
Front passenger seat occupied recognition |
41L |
| B48 |
Front passenger seat occupied recognition and ACSR |
40L |
| B48/1 |
Left frontal acceleration sensor |
15L |
| B48/10 |
Right rear door pressure sensor |
65L |
| B48/2 |
Right frontal acceleration sensor |
16L |
| B48/7 |
Left front door pressure sensor |
12L |
| B48/8 |
Right front door pressure sensor |
14L |
| B48/9 |
Left rear door pressure sensor |
64L |
| Code B03 |
ECO start/stop function |
1F |
| Code U10 |
Front passenger seat with weight detection |
31C |
| F32 |
Front electrical prefuse box |
6L |
| F32f150 |
Pyrofuse 150 |
8K |
| F63 |
Pyrofuse |
2L |
| N10/1 |
Front SAM control unit with fuse and relay module |
37L |
| N10/1f21 |
Fuse 21 |
36L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52L |
| N10/2f37 |
Fuse 37 |
54L |
| N110 |
Weight Sensing System (WSS) control unit |
33L |
| N123/4 |
Emergency call system control unit |
78L |
| N2/10 |
Supplemental restraint system control unit |
5A |
| N2/10 |
Supplemental restraint system control unit |
13A |
| N2/10 |
Supplemental restraint system control unit |
20A |
| N2/10 |
Supplemental restraint system control unit |
28A |
| N2/10 |
Supplemental restraint system control unit |
36A |
| N2/10 |
Supplemental restraint system control unit |
44A |
| N2/10 |
Supplemental restraint system control unit |
52A |
| N2/10 |
Supplemental restraint system control unit |
60A |
| N2/10 |
Supplemental restraint system control unit |
68A |
| N2/10 |
Supplemental restraint system control unit |
79A |
| R12/1 |
Driver ETR [GUS] squib |
75L |
| R12/10 |
Front passenger sidebag squib |
20L |
| R12/11 |
Left rear sidebag squib |
62L |
| R12/12 |
Right rear sidebag squib |
61L |
| R12/2 |
Front passenger ETR [GUS] squib |
74L |
| R12/22 |
Left window bag squib |
67L |
| R12/23 |
Right window bag squib |
68L |
| R12/41 |
Driver pelvis bag squib |
58L |
| R12/42 |
Front passenger pelvis bag squib |
44L |
| R12/6 |
Left rear emergency tensioning retractor squib |
71L |
| R12/7 |
Right rear emergency tensioning retractor squib |
72L |
| R12/9 |
Driver sidebag squib |
22L |
| S68/3 |
Driver seat belt buckle restraint system switch |
24L |
| S68/4 |
Front passenger seat belt buckle restraint system switch |
17L |
| S68/5 |
Left rear seat belt buckle switch |
48L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
48H |
| S68/6 |
Right rear seat belt buckle switch |
49L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
49H |
| U1 |
Valid for USA |
76C |
| U1032 |
Valid for engine 278 and 157 |
25J |
| U108 |
Valid for rear seat belt buckles |
47E |
| U12 |
Valid for left-hand drive vehicles |
20C |
| U13 |
Valid for right-hand drive vehicles |
20C |
| U221 |
Valid for China |
67E |
| U221 |
Valid for China |
68E |
| U225 |
Valid for all except China |
68E |
| U225 |
Valid for all except China |
67E |
| U240 |
Valid for all except ECO start/stop function |
4F |
| U362 |
Valid for gasoline engine 274 |
28J |
| U391 |
Valid for gasoline engine 276.8 |
28J |
| U392 |
Valid for gasoline engine 276 except gasoline engine 276.8 |
25J |
| U43 |
Valid for ECE |
35C |
| U541 |
Valid for TELEAID emergency call system |
76C |
| U596 |
Valid for rear sidebag |
60C |
| U775 |
Valid for emergency tensioning retractor |
69C |
| U831 |
Valid for NECK-PRO head restraint |
45F |
| U831 |
Valid for NECK-PRO head restraint |
55F |
| U848 |
Valid for ACSR |
39J |
| U848 |
Valid for ACSR |
40C |
| U859 |
Valid for seat belt reminder warning |
41J |
| U859 |
Valid for seat belt reminder warning |
41C |
| U880 |
Valid for diesel engine 642 |
25J |
| U948 |
Valid for diesel engine 651 |
28J |
| U958 |
Valid for pelvis airbag |
43F |
| U958 |
Valid for pelvis airbag |
57F |
| W15/1 |
Right footwell ground point |
21D |
| W18 |
Left front seat crossmember ground point |
20D |
| W18 |
Left front seat crossmember ground point |
21D |
| W18 |
Left front seat crossmember ground point |
59C |
| W19 |
Right front seat crossmember ground point |
44D |
| W19 |
Right front seat crossmember ground point |
20D |
| W26 |
Supplemental restraint system control unit ground point |
3E |
| W26 |
Supplemental restraint system control unit ground point |
40D |
| W7/8 |
Right wheelhouse trunk ground point |
48E |
| X150/1 |
Driver NECK-PRO head restraint electrical connector |
56J |
| X150/2 |
Front passenger NECK-PRO head restraint electrical connector |
45J |
| X28/47 |
Left rear emergency tensioning retractor squib electrical connector |
70H |
| X28/48 |
Right rear emergency tensioning retractor squib electrical connector |
72H |
| X35/1 |
Left front door electrical connector |
12H |
| X35/2 |
Right front door electrical connector |
13H |
| X35/3 |
Left rear door electrical connector |
63H |
| X35/4 |
Right rear door electrical connector |
65H |
| X55/3 |
Driver seat connector block |
21G |
| X55/3 |
Driver seat connector block |
55F |
| X55/4 |
Front passenger seat connector block |
17G |
| X55/4 |
Front passenger seat connector block |
33G |
| X55/4 |
Front passenger seat connector block |
39F |
| Y24/12 |
Driver seat NECK-PRO head restraint solenoid |
56L |
| Y24/13 |
Front passenger seat NECK-PRO head restraint solenoid |
46L |
| Z51/19 |
Engine management crash signal connector sleeve |
27E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
17E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
23E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
41D |
