| A0 |
Color code key |
80L |
| A9 |

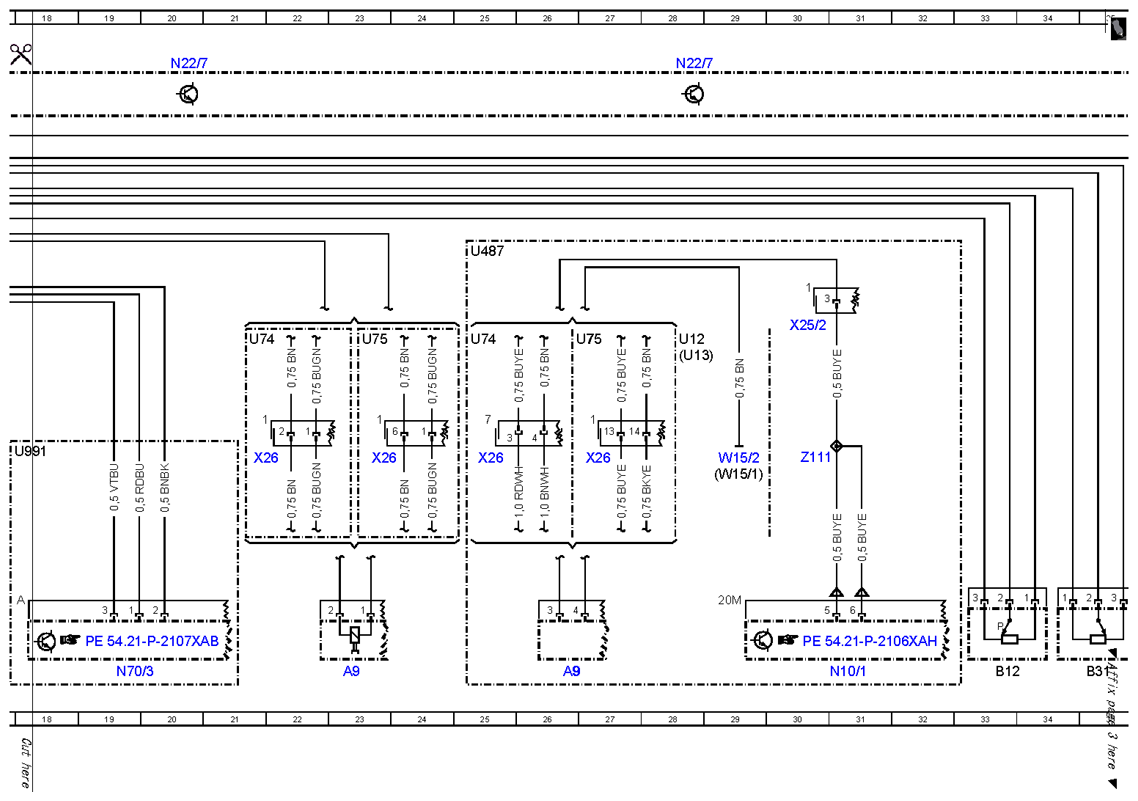

Refrigerant compressor |
23L |
| A9 |
Refrigerant compressor |
26L |
| B10/38 |
Rear footwell air outlet temperature sensor |
74L |

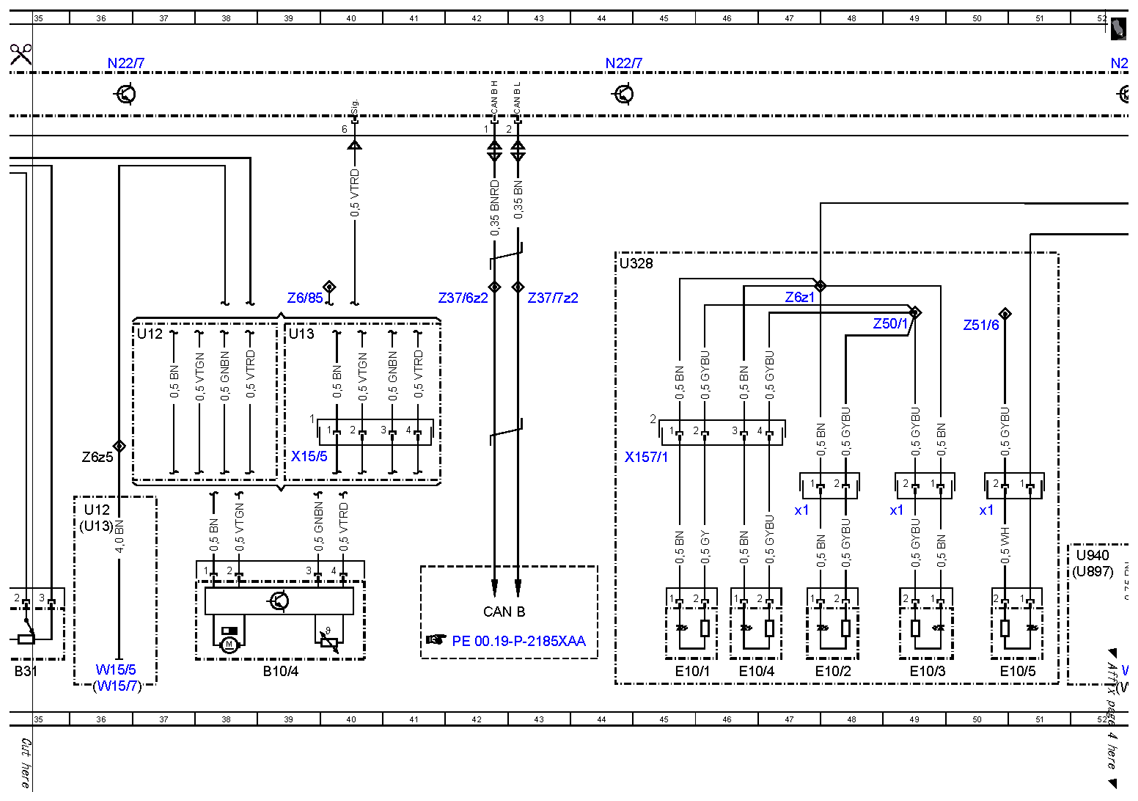

| B10/4 |
Interior temperature sensor |
39L |
| B12 |
Refrigerant pressure sensor |
33L |
| B31 |
Emissions sensor |
35L |
| B82 |
Vehicle interior humidity/temperature sensor |
77L |
| CAN B |
Interior CAN |
42K |
| E10/1 |
Left center air outlet symbol illumination |
45L |
| E10/2 |
Left front side air outlet symbol illumination |
48L |
| E10/2x1 |
Left front side vent symbol illumination electrical connector |
47H |
| E10/3 |
Right front side air outlet symbol illumination |
49L |
| E10/3x1 |
Right front side vent symbol illumination electrical connector |
49H |
| E10/4 |
Right center air outlet symbol illumination |
46L |
| E10/5 |
Rear air outlet symbol illumination |
51L |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
50H |

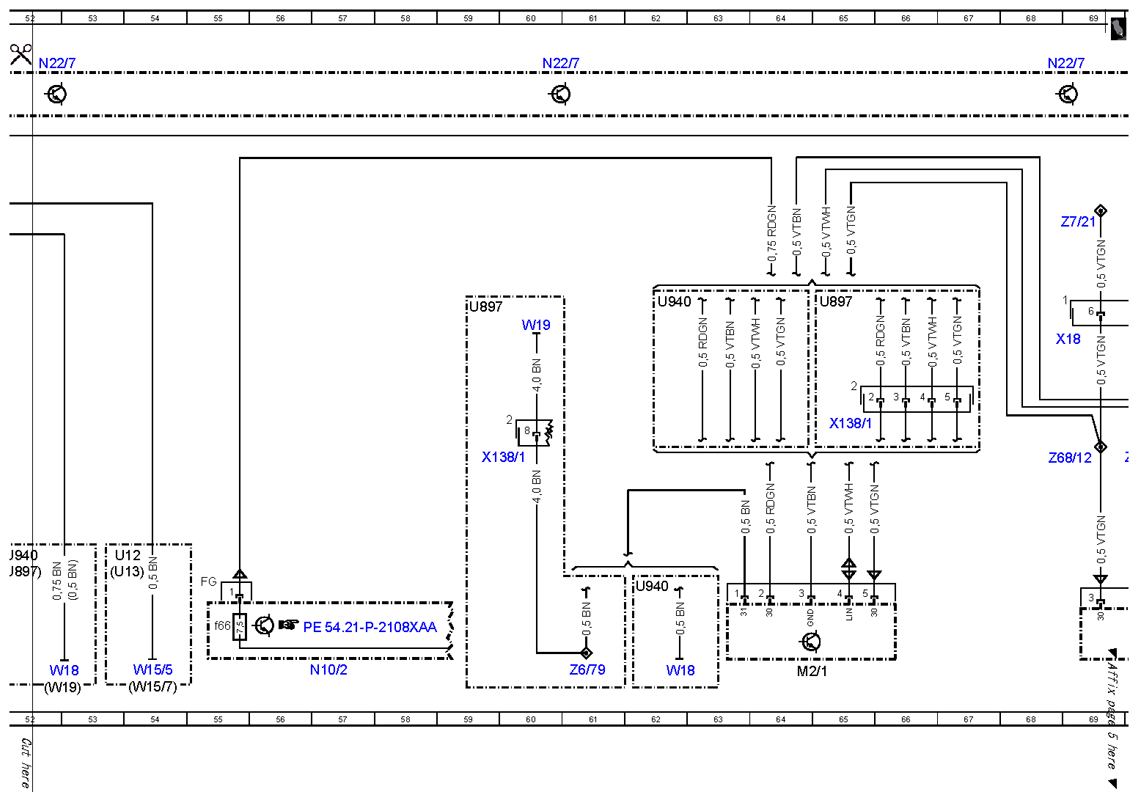

| M2/1 |
Rear blower motor |
64L |

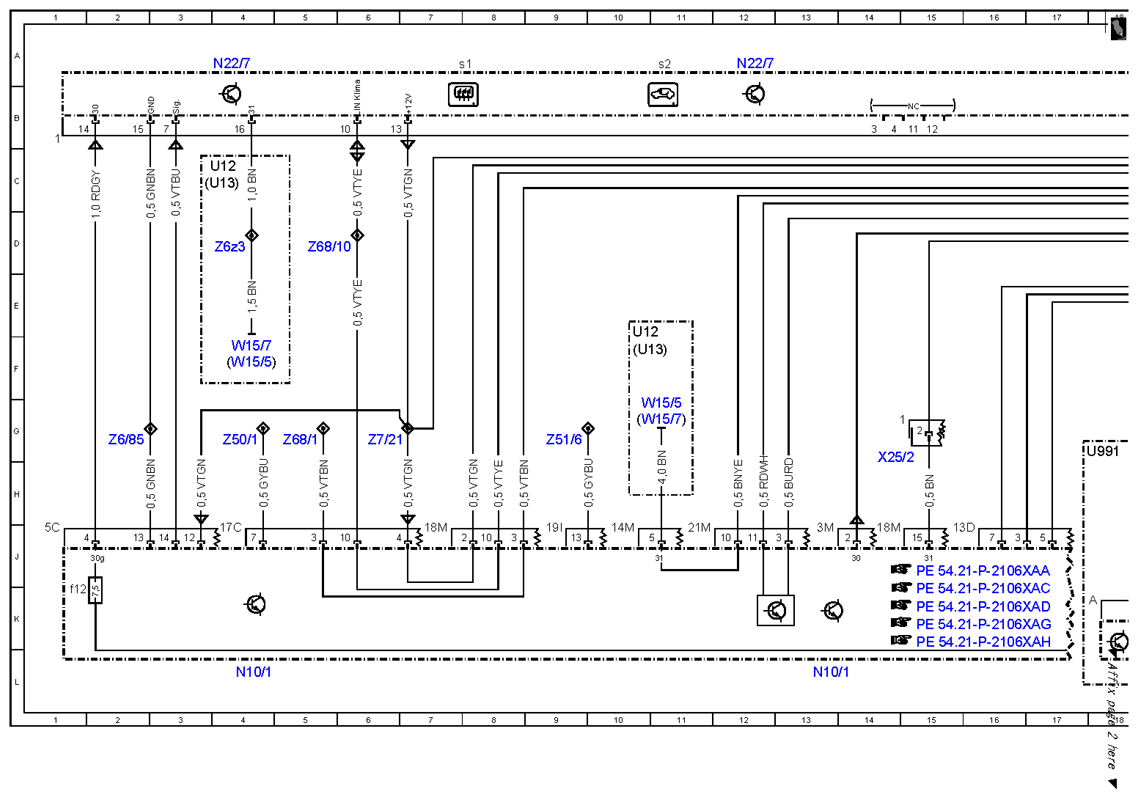

| N10/1 |
Front SAM control unit with fuse and relay module |
4L |
| N10/1 |
Front SAM control unit with fuse and relay module |
13L |
| N10/1 |
Front SAM control unit with fuse and relay module |
31L |
| N10/1f12 |
Fuse 12 |
1K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
57L |
| N10/2f66 |
Fuse 66 |
55K |

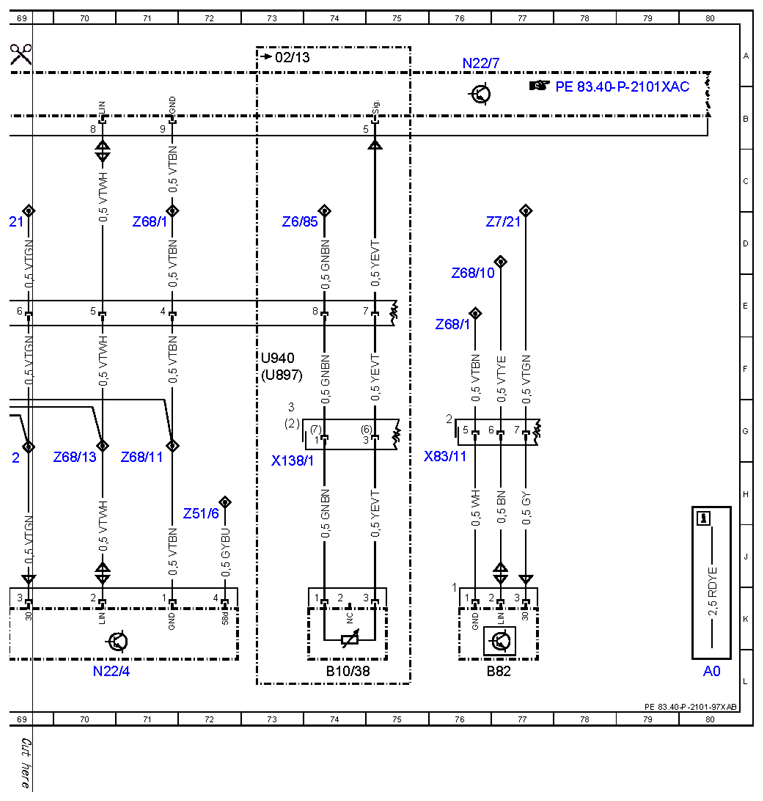

| N22/4 |
Rear automatic air conditioning operating unit |
70L |
| N22/7 |
Automatic air conditioning control and operating unit |
4A |
| N22/7 |
Automatic air conditioning control and operating unit |
12A |
| N22/7 |
Automatic air conditioning control and operating unit |
20A |
| N22/7 |
Automatic air conditioning control and operating unit |
28A |
| N22/7 |
Automatic air conditioning control and operating unit |
36A |
| N22/7 |
Automatic air conditioning control and operating unit |
44A |
| N22/7 |
Automatic air conditioning control and operating unit |
52A |
| N22/7 |
Automatic air conditioning control and operating unit |
60A |
| N22/7 |
Automatic air conditioning control and operating unit |
68A |
| N22/7 |
Automatic air conditioning control and operating unit |
76A |
| N22/7s1 |
Rear window heater button |
7A |
| N22/7s2 |
Air recirculation mode button |
11A |
| N70/3 |
Overhead control panel electronics |
19L |
| U12 |
Valid for left-hand drive vehicles |
36H |
| U12 |
Valid for left-hand drive vehicles |
10E |
| U12 |
Valid for left-hand drive vehicles |
3C |
| U12 |
Valid for left-hand drive vehicles |
28F |
| U12 |
Valid for left-hand drive vehicles |
37F |
| U12 |
Valid for left-hand drive vehicles |
53J |
| U13 |
Valid for right-hand drive vehicles |
36J |
| U13 |
Valid for right-hand drive vehicles |
10F |
| U13 |
Valid for right-hand drive vehicles |
3C |
| U13 |
Valid for right-hand drive vehicles |
28F |
| U13 |
Valid for right-hand drive vehicles |
39F |
| U13 |
Valid for right-hand drive vehicles |
53J |
| U328 |
Valid for air outlet symbol illumination |
44D |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
25D |
| U74 |
Valid for diesel engines |
21F |
| U74 |
Valid for diesel engines |
25F |
| U75 |
Valid for gasoline engines |
23F |
| U75 |
Valid for gasoline engines |
26F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
73F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
52J |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
59E |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
65E |
| U940 |
Valid without DIRECT SELECT |
52J |
| U940 |
Valid without DIRECT SELECT |
62K |
| U940 |
Valid without DIRECT SELECT |
62E |
| U940 |
Valid without DIRECT SELECT |
73F |
| U991 |
Valid for all except tilting/sliding roof |
17G |
| W15/1 |
Right footwell ground point |
29H |
| W15/2 |
Left footwell ground point |
29H |
| W15/5 |
Left front footwell ground point |
11G |
| W15/5 |
Left front footwell ground point |
36L |
| W15/5 |
Left front footwell ground point |
4F |
| W15/5 |
Left front footwell ground point |
54L |
| W15/7 |
Right front footwell ground point |
11G |
| W15/7 |
Right front footwell ground point |
36L |
| W15/7 |
Right front footwell ground point |
4F |
| W15/7 |
Right front footwell ground point |
54L |
| W18 |
Left front seat crossmember ground point |
52L |
| W18 |
Left front seat crossmember ground point |
62L |
| W19 |
Right front seat crossmember ground point |
52L |
| W19 |
Right front seat crossmember ground point |
60E |
| X138/1 |
Front center console electrical connector |
60H |
| X138/1 |
Front center console electrical connector |
65G |
| X138/1 |
Front center console electrical connector |
73H |
| X15/5 |
Temperature sensor electrical connector |
39G |
| X157/1 |
Center console ambiance illumination electrical connector |
45G |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
69F |
| X25/2 |
Engine compartment/interior electrical connector |
14H |
| X25/2 |
Engine compartment/interior electrical connector |
30E |
| X26 |
Interior and engine wiring harness electrical connector |
22H |
| X26 |
Interior and engine wiring harness electrical connector |
23H |
| X26 |
Interior and engine wiring harness electrical connector |
25H |
| X26 |
Interior and engine wiring harness electrical connector |
27H |
| X83/11 |
Circuit 56 exterior lights switch electrical connector |
76G |
| Z111 |
Air conditioning connector sleeve 1 |
30G |
| Z37/6z2 |
Interior CAN (high) connector sleeve |
42E |
| Z37/7z2 |
Interior CAN (low) connector sleeve |
43E |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
4G |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
49E |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
9G |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
72H |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
50E |
| Z6/79 |
Front center console circuit 31 connector sleeve |
61L |
| Z6/85 |
Sensor ground connector sleeve |
2G |
| Z6/85 |
Sensor ground connector sleeve |
39E |
| Z6/85 |
Sensor ground connector sleeve |
73D |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
5G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
76E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
71D |
| Z68/10 |
Instrument panel LIN connector sleeve |
5D |
| Z68/10 |
Instrument panel LIN connector sleeve |
76E |
| Z68/11 |
Rear air conditioning LIN bus ground line connector sleeve |
71G |
| Z68/12 |
Rear air conditioning LIN bus positive lead connector sleeve |
69H |
| Z68/13 |
Rear air conditioning LIN bus data line connector sleeve |
70G |
| Z6z1 |
Circuit 31 connector sleeve |
47E |
| Z6z3 |
Circuit 31 connector sleeve |
4D |
| Z6z5 |
|
36G |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
6G |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
69D |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
77D |
