Remove/install desiccant cartridge - AR83.30-P-6521EL
MODEL 218
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01A | ||
| Notes on handling refrigerant | R134a | AH83.30-N-0003-01A | |
| Remove | |||
| 1 | Drain air conditioning system | AR83.30-P-1760CW | |

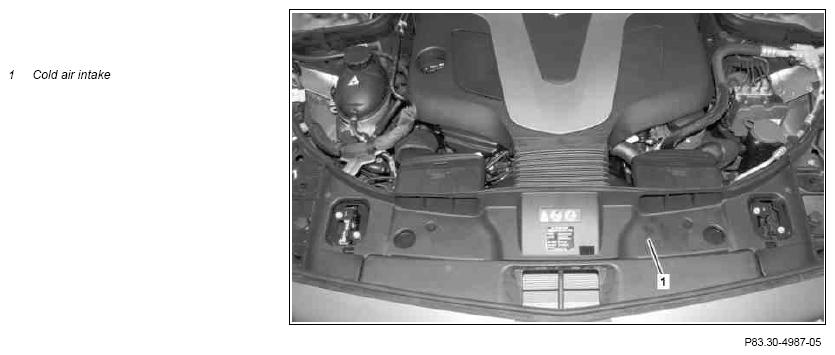

| 2 | Remove cold air intake (1) | ||
| 3 | Remove center front reinforcement above radiator unit | ||

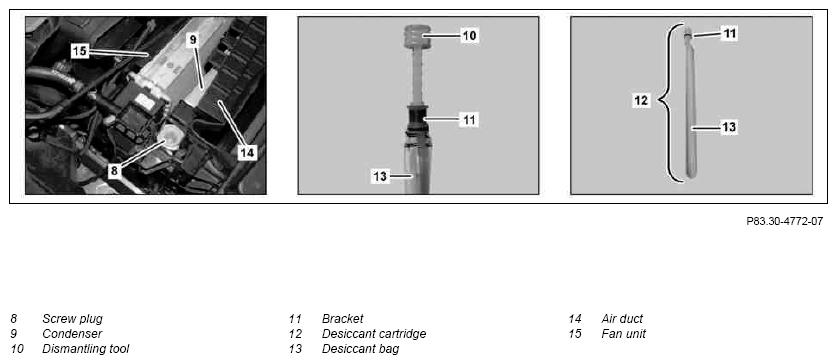

| 4 | Unhook air deflector (14) from fan unit (15) | ||
| 5 | Remove screw plug (8) from condenser (9) | ||
| 6 | Insert dismantling tool (10) into holder (11) of desiccant cartridge (12) | ||
| 7 | Remove desiccant cartridge (12) by rotating dismantling tool (10) to right and left while simultaneously pulling it up and out of the condenser (9) | ||
| Install | |||
| 8 | Check packaging for new desiccant bag (13) for any damage | If packaging is leaky: ↓ Dispose of desiccant bag (13). |
|
| 9 | Moisten sealing ring for new bracket (11) with compressor oil | ||
| Compressor oils (specification 362.0) |
MB 362.0 compressor oil A 001 989 08 03 |
||
| 10 | Insert new desiccant bag (13) into bracket (11) | After opening the packaging, the desiccant bag (13) must be installed within the next 20 minutes. Otherwise, the desiccant bag (13) will be unusable. |
|
| 11 | Insert desiccant cartridge (12) into condenser (9) | Carefully insert desiccant cartridge (12) by hand and without using a tool. Otherwise, the desiccant bag (13) may be damaged. |
|
| 12 | Moisten sealing ring of screw plug (8) with compressor oil and tighten screw plug (8) | ||
| Compressor oils (specification 362.0) |
MB 362.0 compressor oil A 001 989 08 03 |
||
| 13 | Hook air deflector (14) onto fan unit (15) | ||
| 14 | Install center front reinforcement above radiator unit | ||
| 15 | Install cold air intake (1) | ||
| 16 | Charge air conditioning system | AR83.30-P-1760CW |
