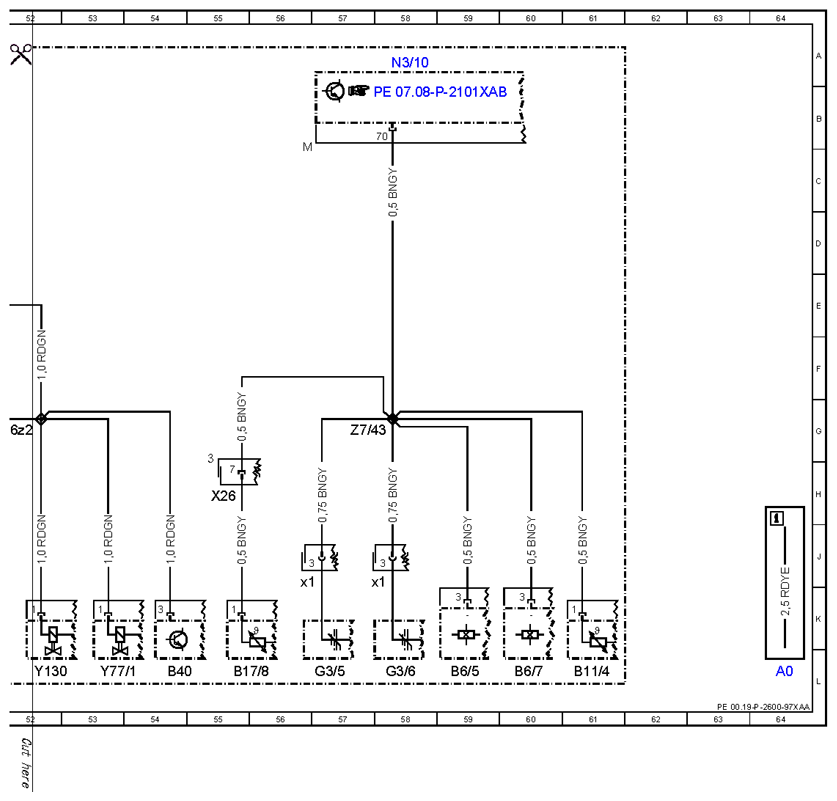

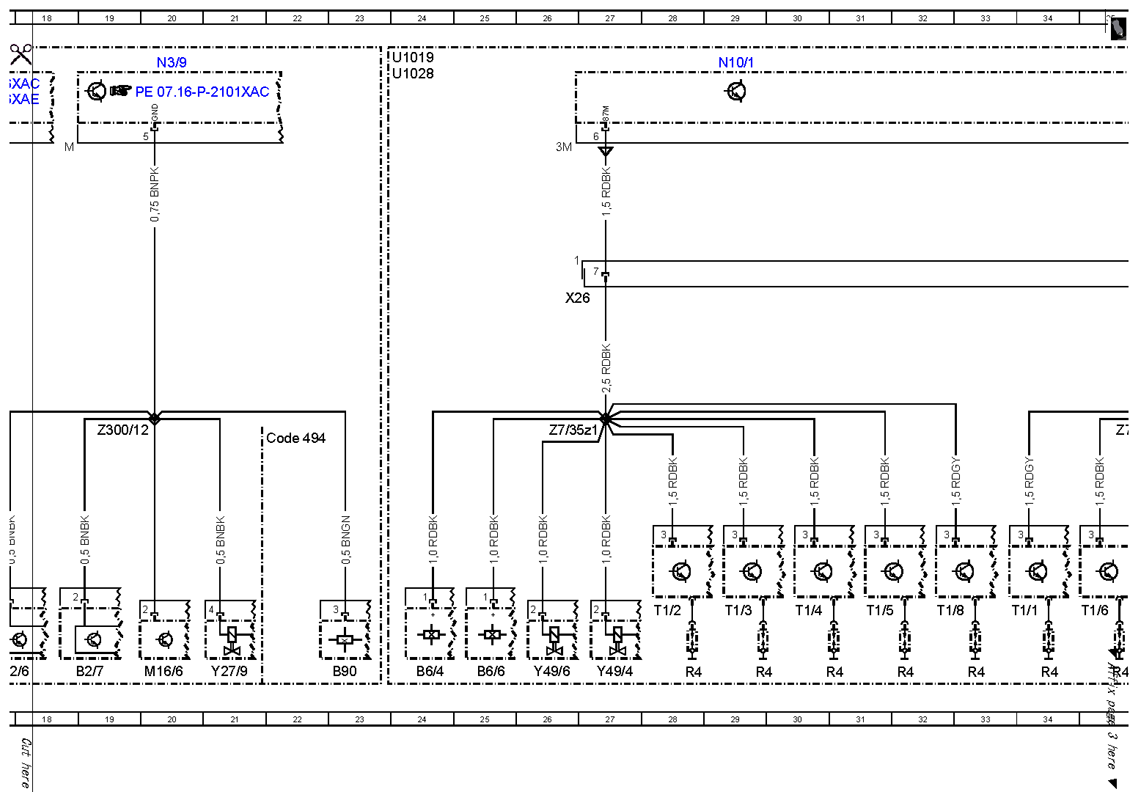

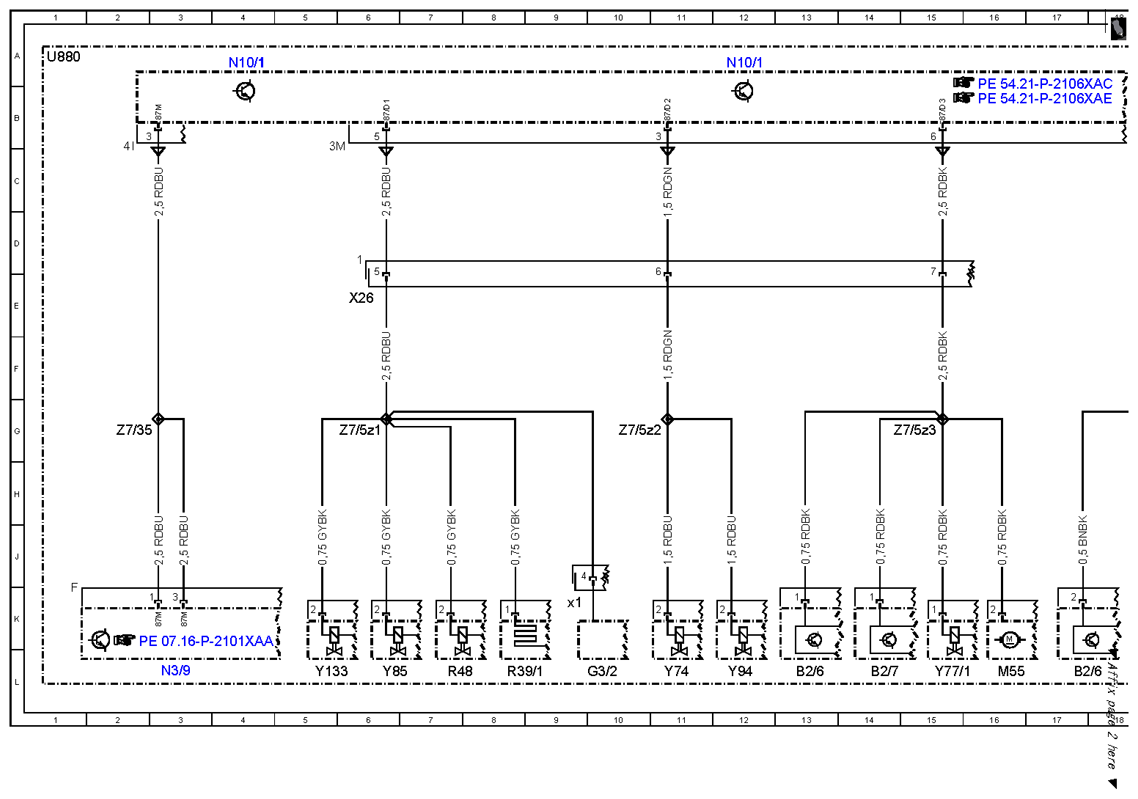

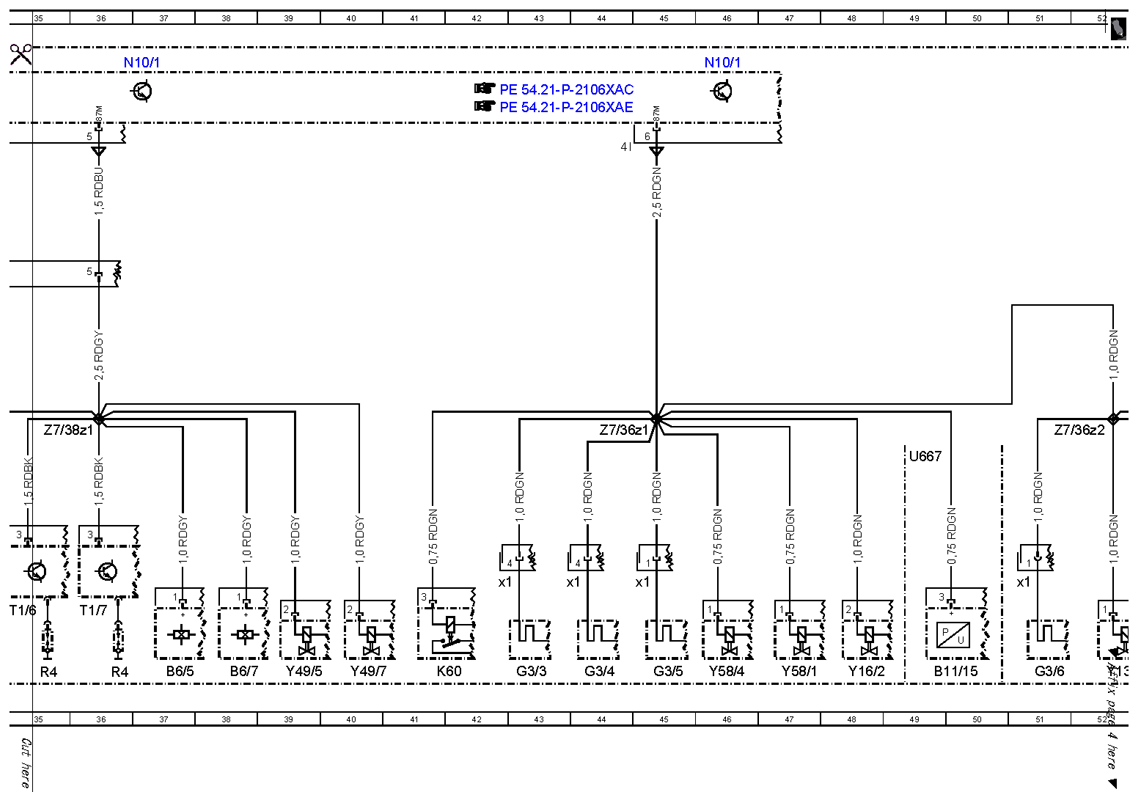

| A0 |
Color code key |
64L |
| B11/15 |
Radiator sensor for engine diagnosis |
49L |
| B11/4 |
Coolant temperature sensor |
61L |
| B17/8 |
Charge air temperature sensor |
55L |
| B2/6 |
Left hot film MAF sensor |
17L |
| B2/6 |
Left hot film MAF sensor |
13L |
| B2/7 |
Right hot film MAF sensor |
14L |
| B2/7 |
Right hot film MAF sensor |
19L |
| B40 |
Oil sensor (oil level, temperature and quality) |
54L |
| B6/4 |
Left intake camshaft Hall sensor |
24L |
| B6/5 |
Right intake camshaft Hall sensor |
37L |
| B6/5 |
Right intake camshaft Hall sensor |
59L |
| B6/6 |
Left exhaust camshaft Hall sensor |
25L |
| B6/7 |
Right exhaust camshaft Hall sensor |
38L |
| B6/7 |
Right exhaust camshaft Hall sensor |
60L |
| B90 |
Exhaust gas recirculation cooling bypass flap Hall sensor |
23L |
| Code 494 |
USA version |
22G |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
10L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
9K |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
43L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
42J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
44L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
44J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
45L |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
57L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
45J |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
56J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
51L |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
58L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
51J |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
58J |
| K60 |
Coolant circulation pump relay |
41L |
| M16/6 |
Throttle valve actuator |
20L |
| M55 |
Intake port shutoff actuator motor |
16L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
29A |
| N10/1 |
Front SAM control unit with fuse and relay module |
37A |
| N10/1 |
Front SAM control unit with fuse and relay module |
46A |
| N3/10 |
ME-SFI [ME] control unit |
58A |
| N3/9 |
CDI control unit |
3L |
| N3/9 |
CDI control unit |
20A |
| R39/1 |
Vent line heater element |
8L |
| R4 |
Spark plugs |
32L |
| R4 |
Spark plugs |
28L |
| R4 |
Spark plugs |
31L |
| R4 |
Spark plugs |
29L |
| R4 |
Spark plugs |
34L |
| R4 |
Spark plugs |
36L |
| R4 |
Spark plugs |
35L |
| R4 |
Spark plugs |
33L |
| R48 |
Coolant thermostat heating element |
7L |
| T1/1 |
Cylinder 1 ignition coil |
33K |
| T1/2 |
Cylinder 2 ignition coil |
28K |
| T1/3 |
Cylinder 3 ignition coil |
29K |
| T1/4 |
Cylinder 4 ignition coil |
30K |
| T1/5 |
Cylinder 5 ignition coil |
31K |
| T1/6 |
Cylinder 6 ignition coil |
35K |
| T1/7 |
Cylinder 7 ignition coil |
36K |
| T1/8 |
Cylinder 8 ignition coil |
32K |
| U1019 |
Valid for gasoline engine 278 |
24A |
| U1028 |
Valid for engine 157 |
24A |
| U667 |
Valid for California |
49G |
| U880 |
Valid for diesel engine 642 |
1A |
| X26 |
Interior and engine wiring harness electrical connector |
6E |
| X26 |
Interior and engine wiring harness electrical connector |
27E |
| X26 |
Interior and engine wiring harness electrical connector |
55H |
| Y130 |
Engine oil pump valve |
52L |
| Y133 |
Coolant pump switchover valve |
5L |
| Y16/2 |
Heating system shutoff valve |
48L |
| Y27/9 |
Exhaust gas recirculation actuator |
21L |
| Y49/4 |
Left intake camshaft solenoid |
27L |
| Y49/5 |
Right intake camshaft solenoid |
39L |
| Y49/6 |
Left exhaust camshaft solenoid |
26L |
| Y49/7 |
Right exhaust camshaft solenoid |
40L |
| Y58/1 |
Purge control valve |
47L |
| Y58/4 |
Activated charcoal filter shutoff valve |
46L |
| Y74 |
Pressure regulator valve |
11L |
| Y77/1 |
Boost pressure control pressure tranducer |
15L |
| Y77/1 |
Boost pressure control pressure tranducer |
53L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
6L |
| Y94 |
Quantity control valve |
12L |
| Z300/12 |
Connector sleeve/power supply/sensors |
19G |
| Z7/35 |
Circuit 87 M1e connector sleeve |
2G |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
26G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
44G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
52G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
35G |
| Z7/43 |
Sensor ground connector sleeve |
57G |
| Z7/5z1 |
Circuit 87 connector sleeve |
6G |
| Z7/5z2 |
Circuit 87 connector sleeve |
10G |
| Z7/5z3 |
Circuit 87 connector sleeve |
15G |
