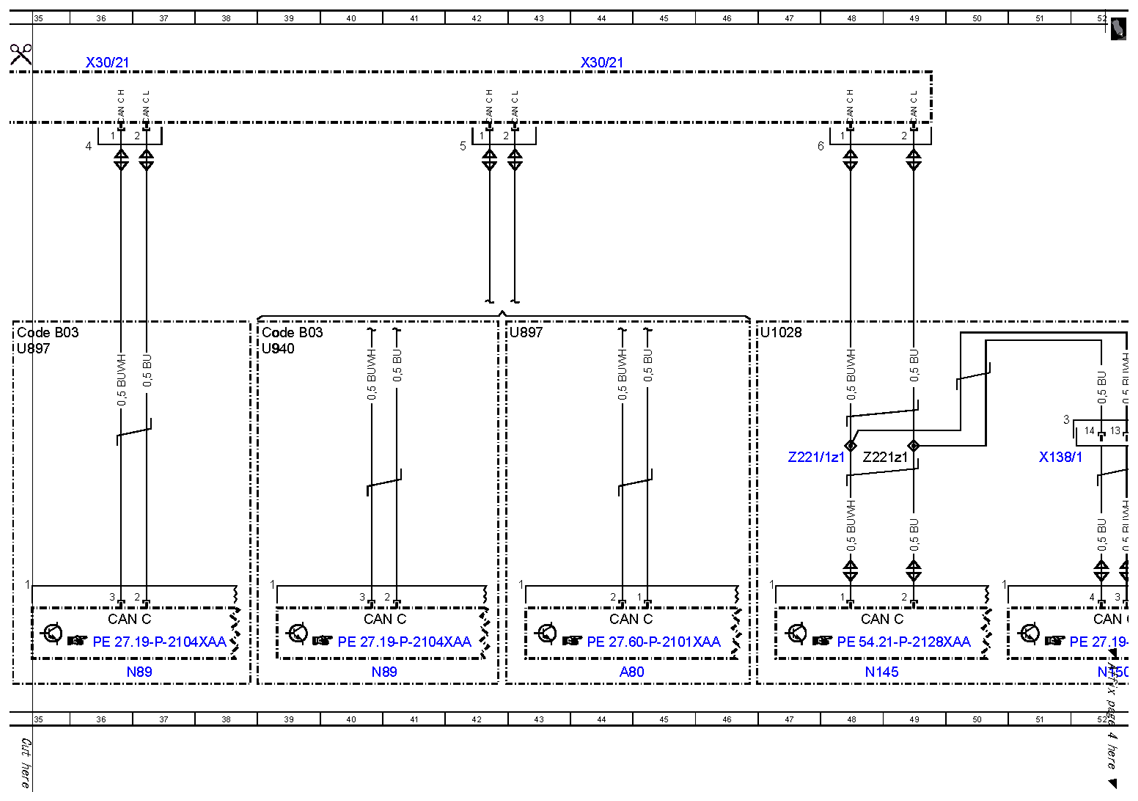

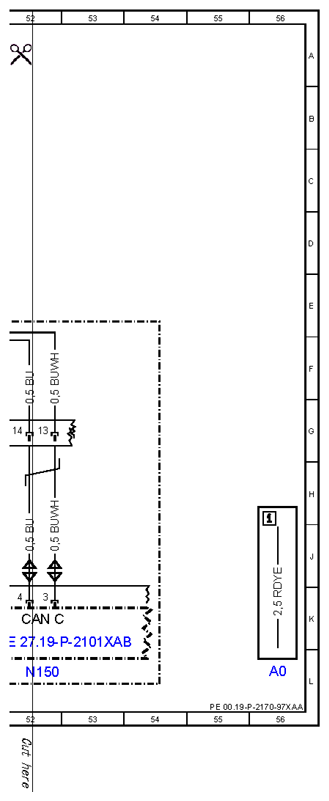

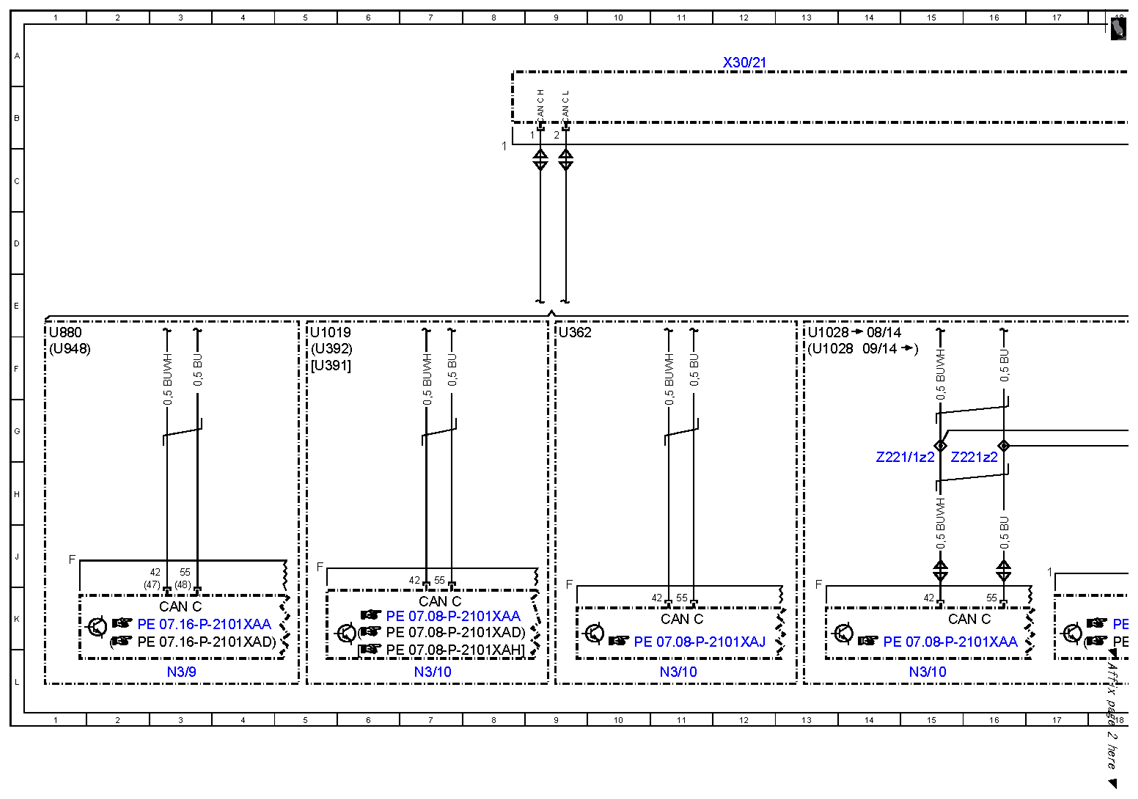

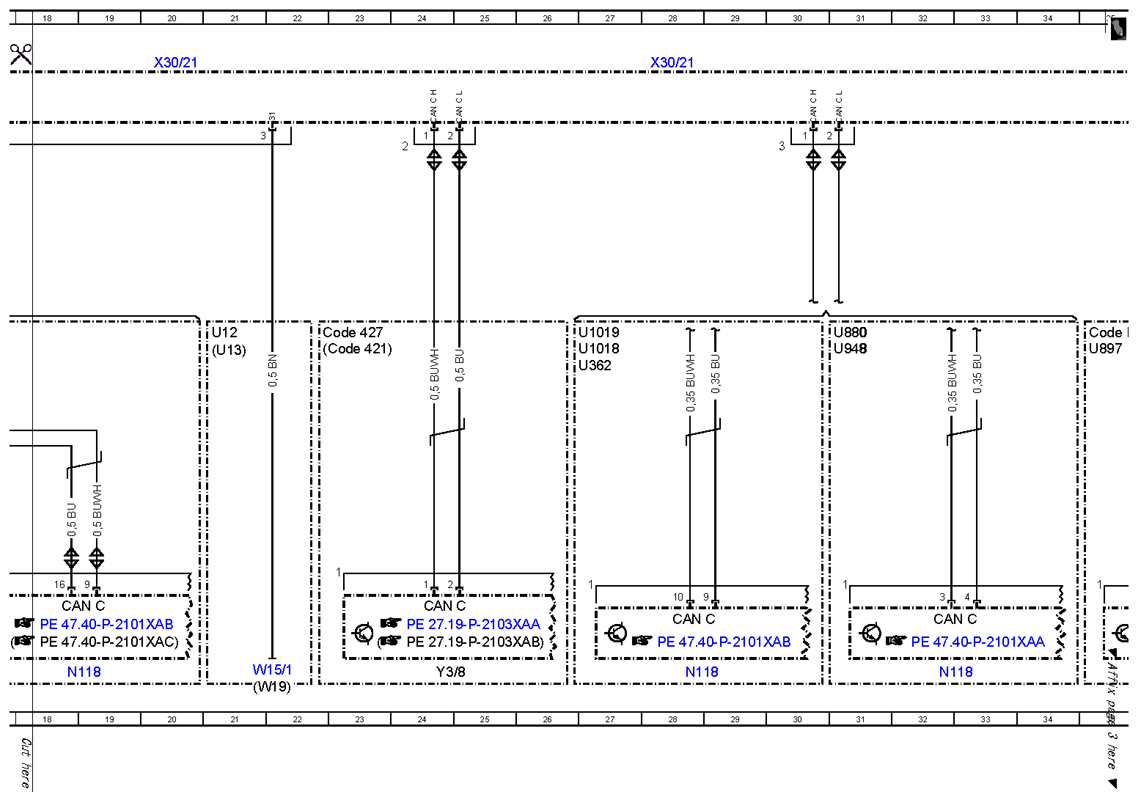

| A0 |
Color code key |
56L |
| A80 |
Intelligent servo module for DIRECT SELECT |
44L |
| CAN C |
Drive train CAN |
28K |
| CAN C |
Drive train CAN |
11K |
| CAN C |
Drive train CAN |
3K |
| CAN C |
Drive train CAN |
7K |
| CAN C |
Drive train CAN |
18K |
| CAN C |
Drive train CAN |
24K |
| CAN C |
Drive train CAN |
15K |
| CAN C |
Drive train CAN |
32K |
| CAN C |
Drive train CAN |
36K |
| CAN C |
Drive train CAN |
40K |
| CAN C |
Drive train CAN |
44K |
| CAN C |
Drive train CAN |
48K |
| CAN C |
Drive train CAN |
52K |
| Code 421 |
9-speed automatic transmission |
22F |
| Code 427 |
7-speed automatic transmission |
22F |
| Code B03 |
ECO start/stop function |
35F |
| Code B03 |
ECO start/stop function |
39F |
| N118 |
Fuel pump control unit |
28L |
| N118 |
Fuel pump control unit |
18L |
| N118 |
Fuel pump control unit |
32L |
| N145 |
Transmission mode control unit |
48L |
| N150 |
DIRECT SELECT INTERFACE |
52L |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/10 |
ME-SFI [ME] control unit |
7L |
| N3/10 |
ME-SFI [ME] control unit |
15L |
| N3/9 |
CDI control unit |
3L |
| N89 |
Transmission oil auxiliary pump control unit |
37L |
| N89 |
Transmission oil auxiliary pump control unit |
40L |
| U1018 |
Valid for gasoline engine 276 |
26F |
| U1019 |
Valid for gasoline engine 278 |
5F |
| U1019 |
Valid for gasoline engine 278 |
26F |
| U1028 |
Valid for engine 157 |
13F |
| U1028 |
Valid for engine 157 |
13F |
| U1028 |
Valid for engine 157 |
47F |
| U12 |
Valid for left-hand drive vehicles |
21F |
| U13 |
Valid for right-hand drive vehicles |
21F |
| U362 |
Valid for gasoline engine 274 |
9F |
| U362 |
Valid for gasoline engine 274 |
26F |
| U391 |
Valid for gasoline engine 276.8 |
5F |
| U392 |
Valid for gasoline engine 276 except gasoline engine 276.8 |
5F |
| U880 |
Valid for diesel engine 642 |
1F |
| U880 |
Valid for diesel engine 642 |
31F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
35F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
43F |
| U940 |
Valid without DIRECT SELECT |
39F |
| U948 |
Valid for diesel engine 651 |
1F |
| U948 |
Valid for diesel engine 651 |
31F |
| W15/1 |
Right footwell ground point |
21L |
| W19 |
Right front seat crossmember ground point |
21L |
| X138/1 |
Front center console electrical connector |
51H |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
12A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
20A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
28A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
36A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
44A |
| Y3/8 |
Fully integrated transmission control unit |
24L |
| Z221/1z1 |
Drive train CAN "high" potential distributor connector sleeve |
47G |
| Z221/1z2 |
Drive train CAN "high" potential distributor connector sleeve |
15G |
| Z221z1 |
Drive train CAN "low" potential distributor connector sleeve |
49G |
| Z221z2 |
Drive train CAN "low" potential distributor connector sleeve |
16G |
