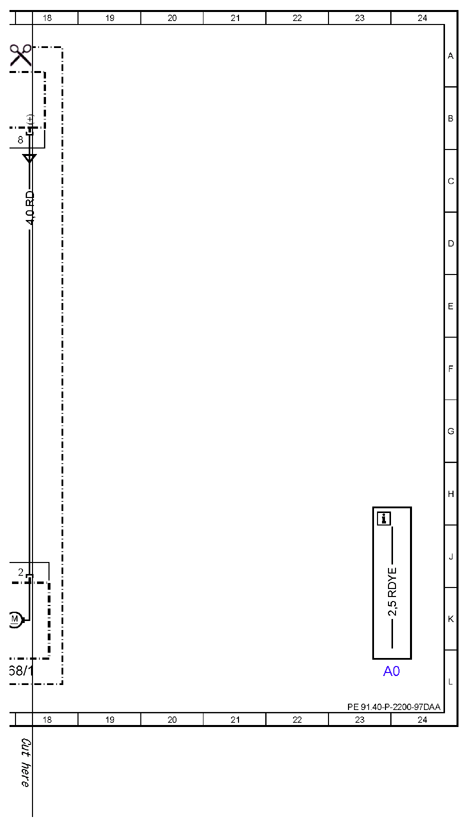

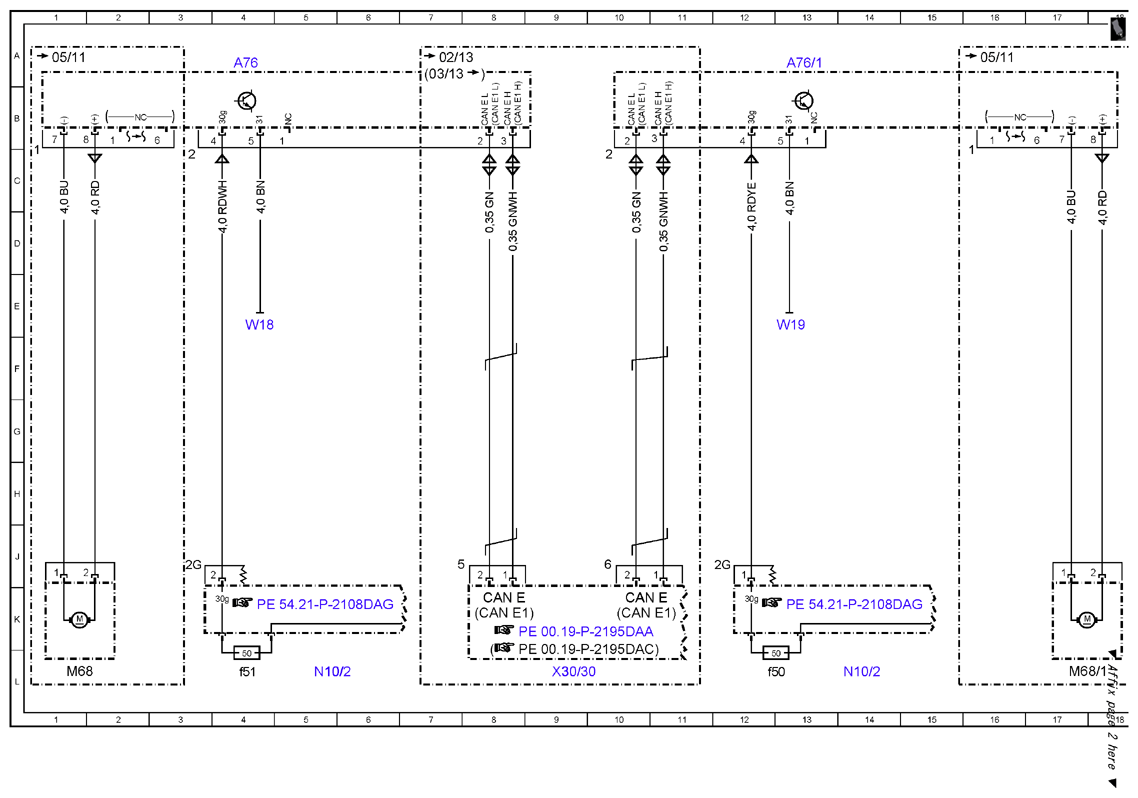

Wiring diagram, reversible emergency tensioning retractor - PE91.40-P-2200-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Control unit A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A76 | Left front reversible emergency tensioning retractor | 4A |
| A76/1 | Right front reversible emergency tensioning retractor | 13A |
| CAN E | Chassis CAN | 8K |
| CAN E | Chassis CAN | 10K |
| CAN E1 | Chassis CAN 1 | 8K |
| CAN E1 | Chassis CAN 1 | 10K |
| M68 | Left front reversible emergency tensioning retractor actuator motor | 1L |
| M68/1 | Right front reversible emergency tensioning retractor actuator motor | 17L |
| N10/2 | Rear SAM control unit with fuse and relay module | 5L |
| N10/2 | Rear SAM control unit with fuse and relay module | 14L |
| N10/2f50 | Fuse 50 | 12L |
| N10/2f51 | Fuse 51 | 4L |
| W18 | Left front seat crossmember ground point | 4E |
| W19 | Right front seat crossmember ground point | 13E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 9L |
